Description

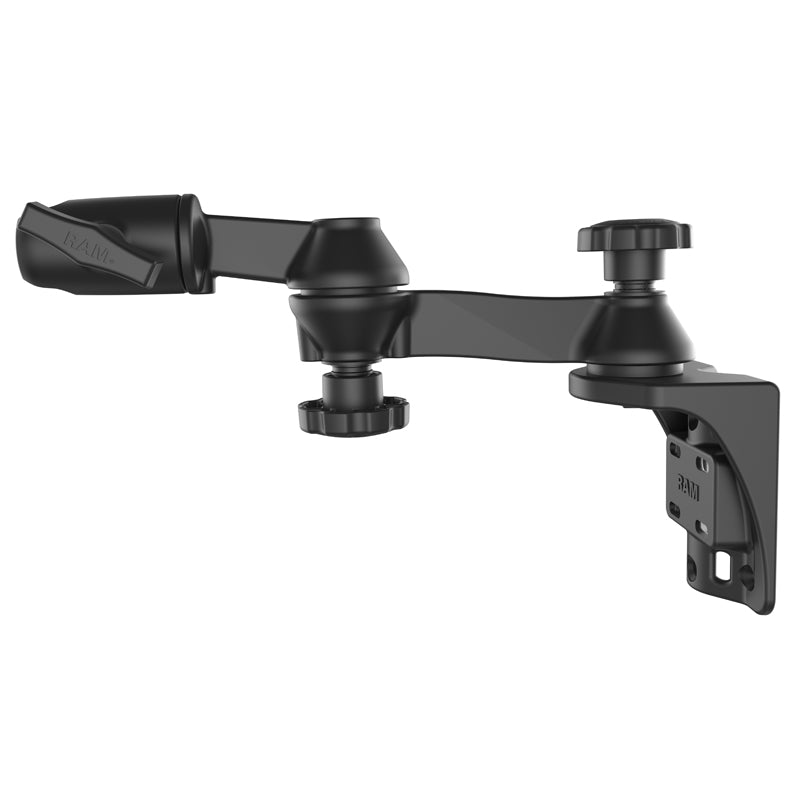

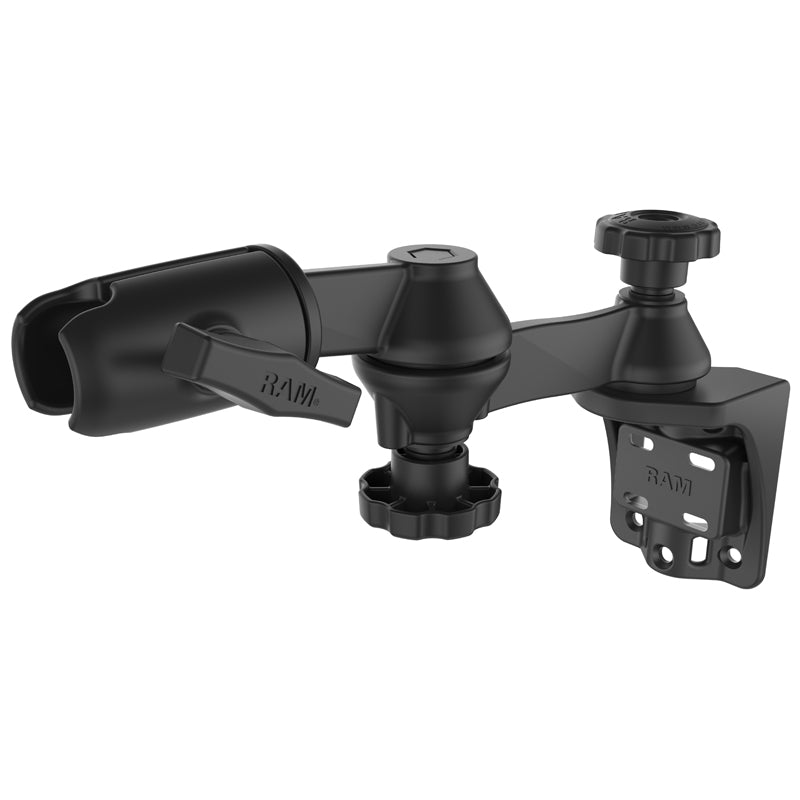

The RAM® Vertical Swing Arm Mount combines two 6" straight swing arms with a drill-down base designed for compatible vertical surfaces. Together, the arms provide approximately 12" of reach and multiple pivot points for repositioning attached equipment.
The swivel socket accepts a RAM C Size 1.5" Ball component, allowing the mount to connect with compatible holders, plates, and adapters within the RAM C Size modular system.
Key Features
-
Two 6" straight swing arms provide approximately 12" of reach
-
Drill-down base designed for compatible vertical surfaces
-
Integrated swivel socket for a RAM C Size 1.5" ball
-
Multiple pivot points support adjustable equipment placement
-
Compatible with RAM C Size 1.5" ball components
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This swing arm assembly is designed for applications requiring extended reach from a fixed vertical surface. The integrated socket is compatible with a variety of RAM C Size 1.5" ball adapters and mounting components.
Installation hardware is not included.
Specifications
Socket Size: C Size 1.5"
Swing Arm Length: Two 6" arms; approximately 12" total reach
Mounting Orientation: Vertical surface

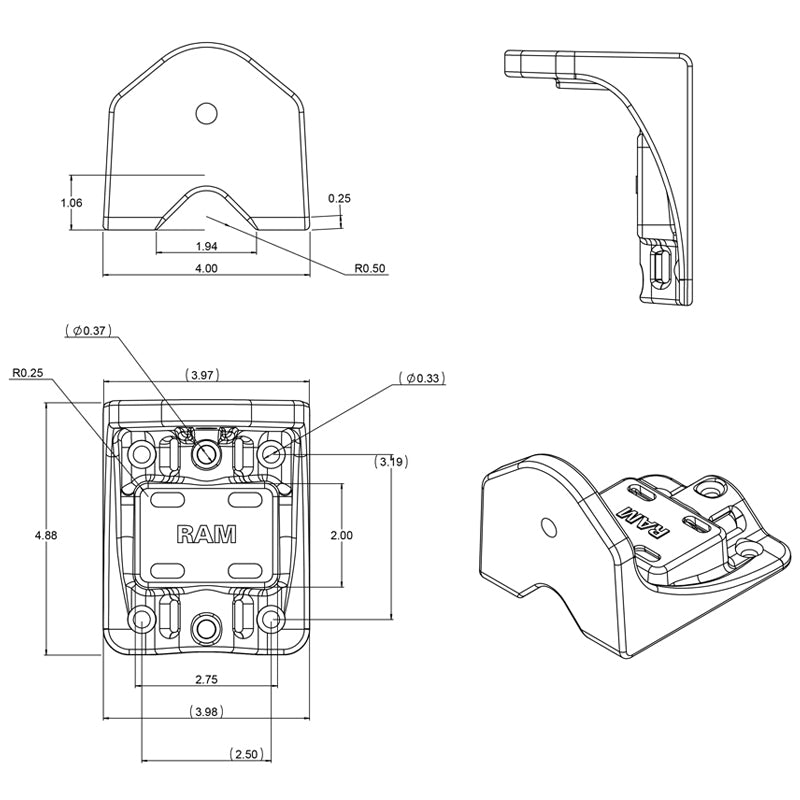

Hole Pattern: See manufacturer drawing
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 3.62 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-109VS-5NBU
Warranty: Manufacturer’s lifetime warranty.
