Description

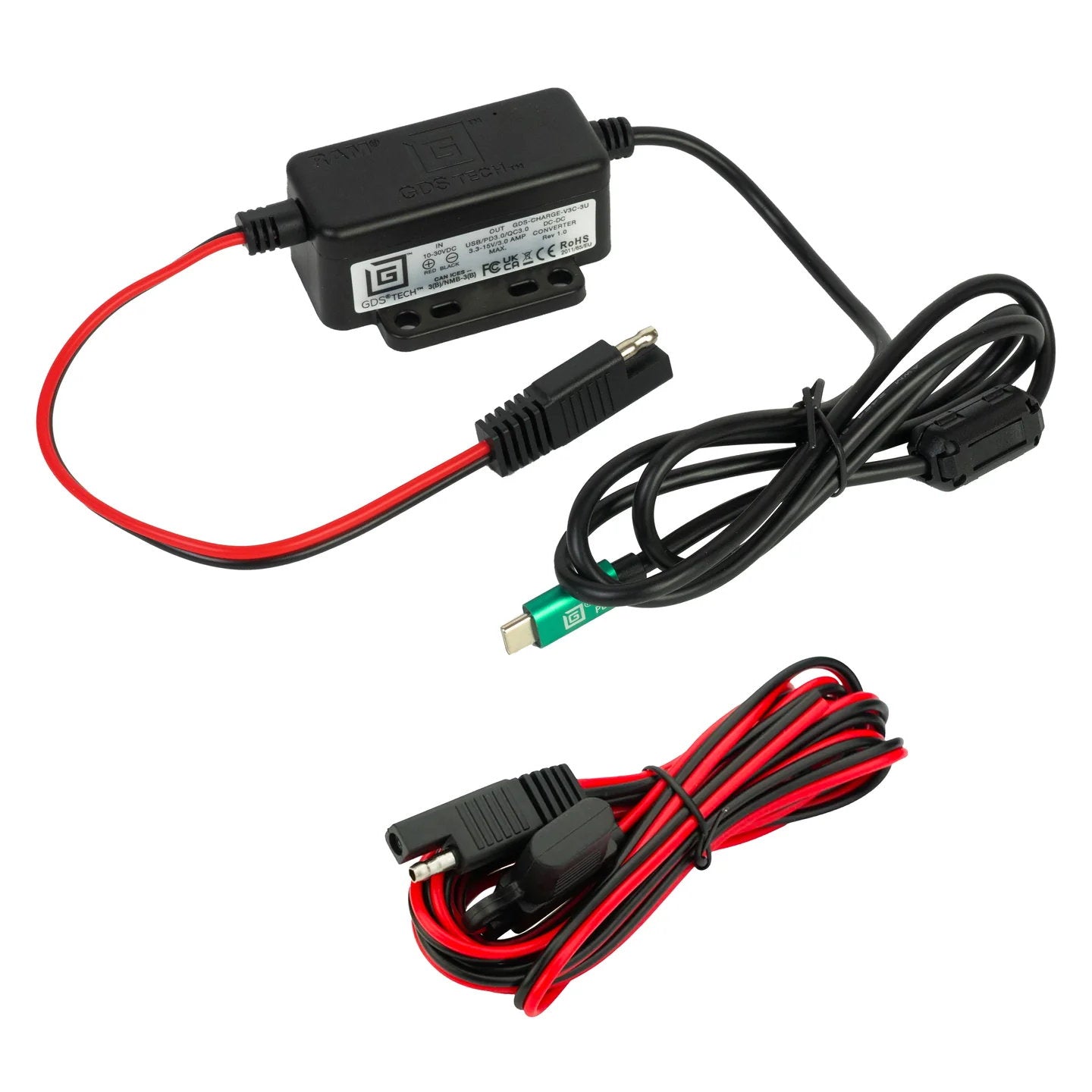

The GDS® Modular 10-30V Power Delivery 45W USB-C Hardwire Charger provides direct vehicle power for USB Type-C GDS® charging solutions. It is designed for vehicle, fleet, industrial, and mobile work environments where a hardwired power connection is preferred over a plug-in charger.
This charger connects directly to a 10-30VDC vehicle power source and delivers 5-15VDC USB-C Power Delivery output with up to 3A max current. Its modular design helps simplify future upgrades by allowing charger components to be changed without rewiring the vehicle power connection.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features:
• Hardwire vehicle charger with USB Type-C male output connection
• Supports USB-C Power Delivery for compatible GDS® vehicle solutions
• 10-30VDC input range for direct connection to vehicle power systems
• 5-15VDC output with 3A max current
• Modular charger design helps reduce rewiring when upgrading devices or charger components
• Bare wire input connection with 2.5-meter input cable
• Moisture resistant design with multiple electrical protection features
• Part of the GDS® Ecosystem™ for protected, connected, and charged mobile device setups
Use Cases & Compatibility:
This charger is intended for USB Type-C GDS® vehicle power solutions that require a hardwired power connection. It is well suited for vehicle-mounted device setups used in fleet vehicles, work trucks, service vehicles, warehouses, field operations, and other mobile work environments.
Use this charger when a direct-to-vehicle power source is preferred over a cigarette lighter adapter or removable plug-in charger.
Specifications:
Input Voltage: 10-30VDC
Output Voltage: 5-15VDC
Output Current: 3A max
Power Output: 45W
Input Connector: Bare Wire
Input Cable Length: 2.5 meters
Output Connector: USB Type-C Male
Output Cable Length: 1 meter
Operating Temperature: -20°C to +70°C
Storage Temperature: -40°C to +85°C
Product Weight: 0.46 lb
Protection / Compliance:
• Over Voltage Protection
• Short Circuit Protection
• Reverse Polarity Protection
• RoHS Compliance
• WEEE Compliance
• SAE J-1113-5 Load Dump / Transient Voltage
• Moisture Resistant
Certifications:
• CE Certification
• RCM Certification
• FCC Certification
• UL 62368-1 Certification
Brand and Warranty:
Brand: RAM Mounts
Part Number: RAM-GDS-CHARGE-V3C-3U
Warranty: Manufacturer’s 3-year warranty
