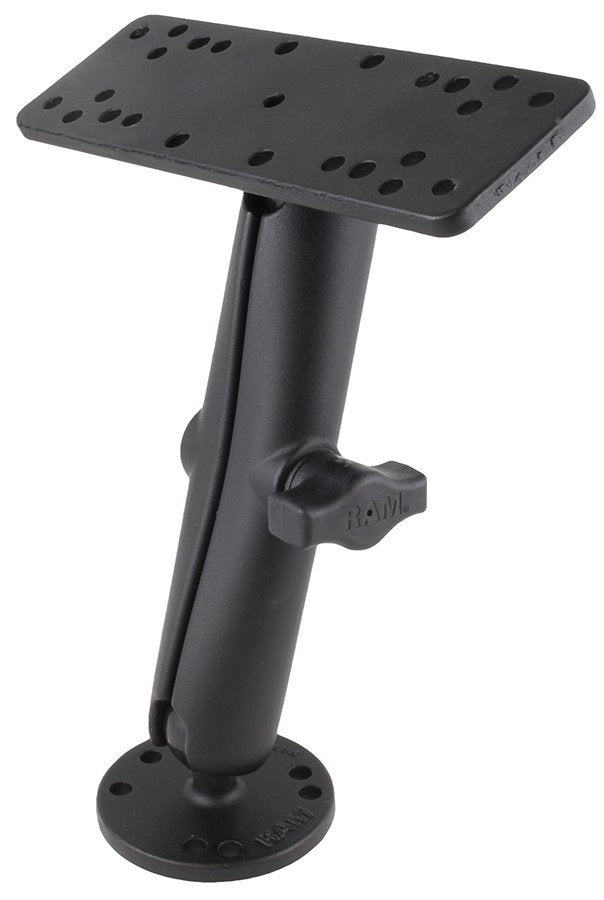

The RAM® Universal Drill-Down Marine Electronics Mount with Long Arm delivers a rugged, fully adjustable mounting solution for marine electronics in demanding environments. Designed with RAM’s proven ball and socket system, this mount provides near-infinite adjustability while maintaining rock-solid stability on boats, kayaks, and marine consoles.
Built from powder-coated, marine-grade aluminum, this drill-down mounting system is engineered to resist corrosion and vibration, making it ideal for fishfinders, chartplotters, and other marine electronic displays. The long double socket arm allows for extended reach and precise positioning, while dual pre-drilled base plates ensure broad device compatibility and secure installation.
As an Authorized RAM Mounts Dealer, Gadget Mounts provides genuine RAM Mounts products backed by the manufacturer’s lifetime warranty.
Key Features
• Complete drill-down mounting solution for marine electronics
• Long double socket arm offers extended reach and flexible positioning
• Dual 1" B-size rubber balls provide vibration damping and secure hold
• Pre-drilled AMPS and multi-pattern mounting plates for universal fitment
• Marine-grade aluminum construction resists corrosion in harsh environments
• RAM ball and socket technology enables quick adjustments and locking stability
• Designed and manufactured in the USA
Specifications
Ball Size: B Size (1")
Arm Length: Long arm – 6" overall length
Socket-to-Socket Length: 5.31"

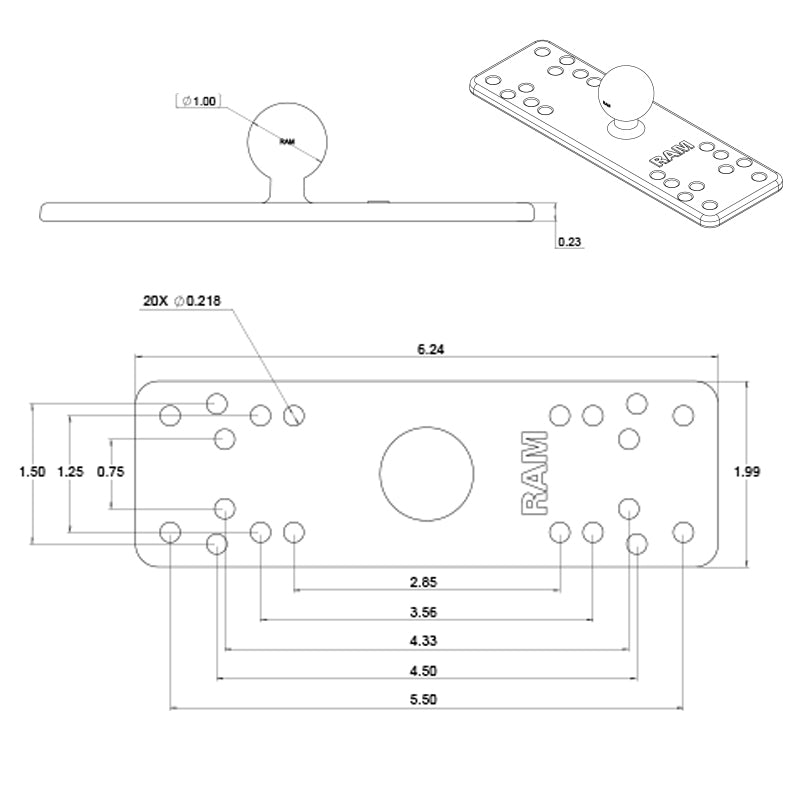

Top Plate Size: 6.25" x 2"
Bottom Plate Diameter: 2.5"
Hole Pattern (Drill-Down Plate):
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" diameter
Material: Powder-coated marine-grade aluminum
Weight Capacity:
• Standard Use: up to 2 lbs
• Heavy-Duty Use: up to 1 lb
Product Weight: 0.97 lbs
Country of Origin: Made in the USA
Installation Notes
• Drill-down mounting hardware not included. • Common fastener sizes may include #8, #10, M4, or M5 depending on surface
• Additional drilling may be required for certain device configurations
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-B-111U-C
Warranty: Manufacturer’s Lifetime Warranty
