Description
The Garmin Dual Beam-IF Ice Fishing Transducer delivers reliable traditional sonar performance for anglers fishing through the ice. Featuring dual-frequency 77/200 kHz operation with selectable 15° and 45° beam angles, it helps you locate fish, monitor underwater activity, and identify targets beneath your fishing hole when connected to a compatible Garmin fishfinder.
Designed for cold-weather use, the transducer features an 8-foot silicone-coated cable that remains flexible in harsh winter conditions. Its compact design, included foam float, and 4-pin adapter cable make it a practical option for compatible Garmin ice fishing setups.
Key Features
-
Dual-Frequency Sonar: Operates at 77 kHz and 200 kHz for flexible underwater coverage.
-
Selectable Beam Angles: Choose a wide 45° beam for broader coverage or a narrow 15° beam for more focused target detection.
-
Clear Target Separation: Helps distinguish fish and underwater targets when paired with a compatible Garmin fishfinder.
-
Cold-Weather Cable: Silicone-coated cable remains flexible in freezing conditions.
-
500-Watt Power Rating: Designed for traditional sonar operation.
-
Ice Fishing Ready: Includes a foam float, grommet, and 4-pin transducer adapter cable.
Use Cases & Compatibility
Designed for freshwater ice fishing with compatible Garmin fishfinders and chartplotters that support 77/200 kHz traditional sonar.
Ideal Applications:
-
Ice fishing on frozen lakes and ponds
-
Locating fish beneath an ice fishing hole
-
Monitoring fish movement and suspended targets
-
Replacing or upgrading a compatible Garmin ice fishing transducer
Compatibility: Supports select Garmin STRIKER and ECHOMAP series fishfinders. Some compatible units require an additional adapter cable, sold separately.
Verify compatibility with your specific Garmin device before purchasing.
Note: This is a traditional dual-frequency sonar transducer, not a Garmin LiveScope or CHIRP scanning sonar transducer. A compatible fishfinder or chartplotter is required and is sold separately.
Specifications
-
Product Type: Ice Fishing Transducer
-
Sonar Technology: Traditional Dual Beam
-
Operating Frequencies: 77/200 kHz
-
Beam Angles: 45° at 77 kHz / 15° at 200 kHz
-
Power Rating: 500 watts RMS
-
Maximum Freshwater Depth: 1,900 feet
-
Cable Length: 8 feet
-
Connection: 4-pin
-
Cable Construction: Cold-weather flexible, silicone-coated
-
Supported Measurements: Depth
-
Application: Freshwater ice fishing
What's Included
-

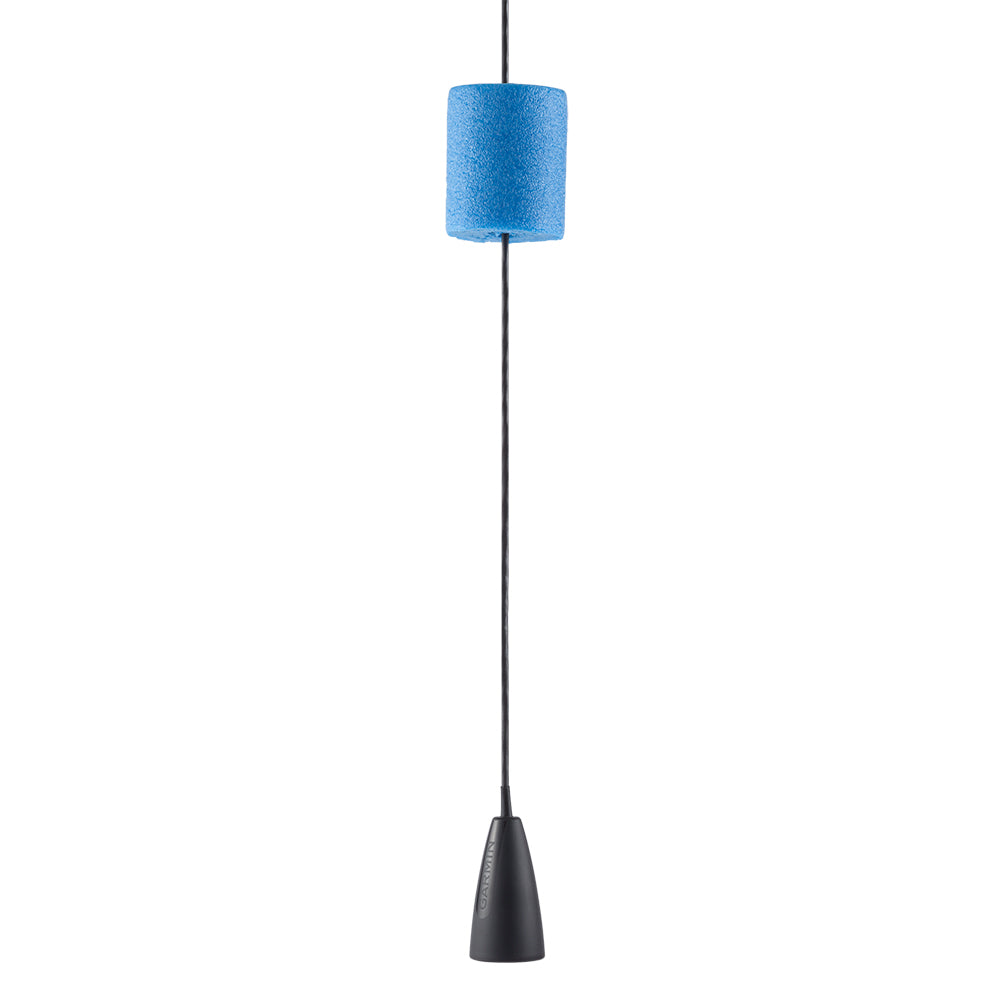

Garmin Dual Beam-IF Ice Fishing Transducer
-
4-Pin Transducer Adapter Cable
-
Foam Float
-
Grommet
-
Product Documentation
Brand & Warranty
Brand: Garmin
Manufacturer's Part Number: 010-13069-00
Warranty: Manufacturer's 1-year warranty.
