Description

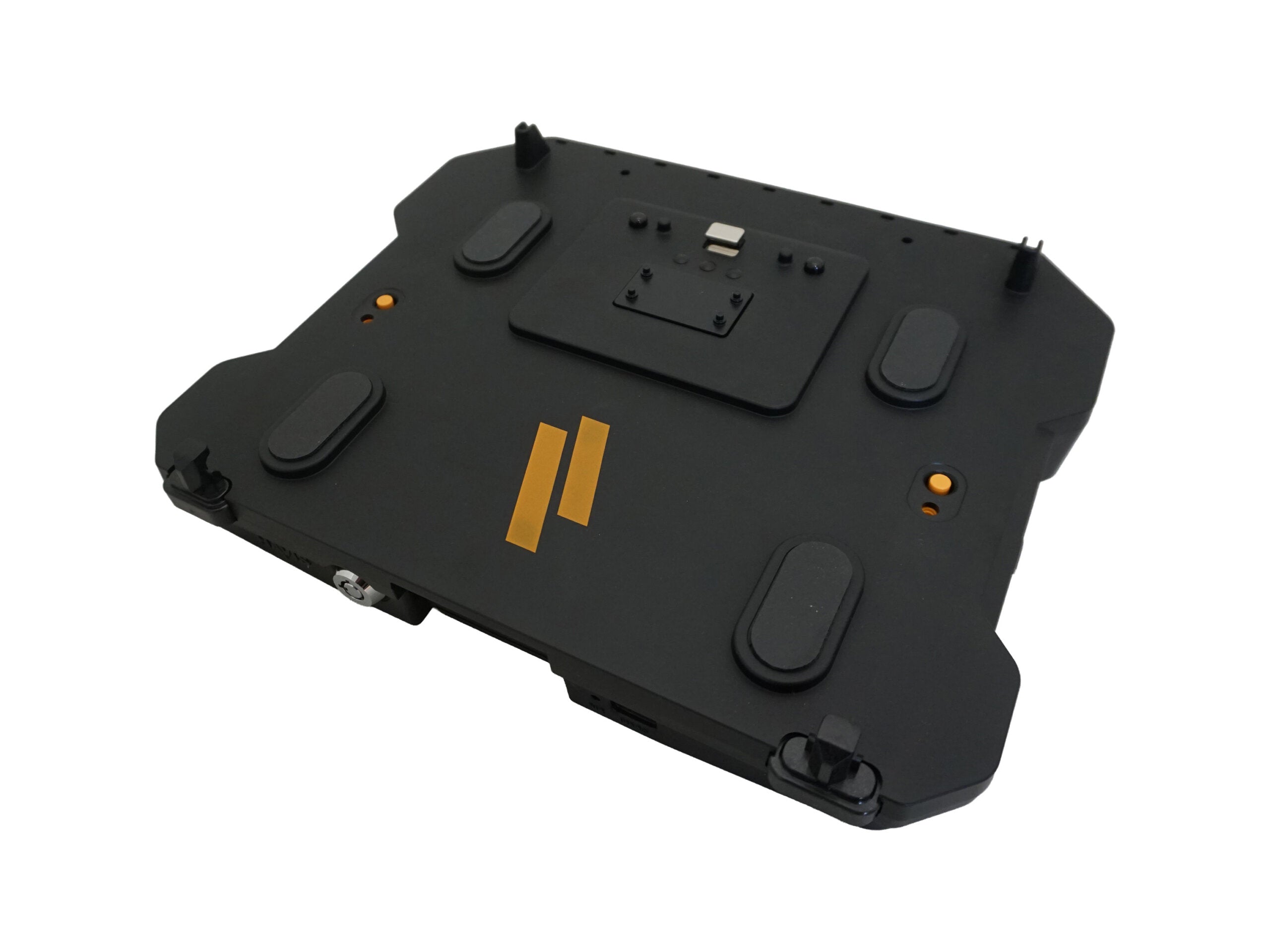

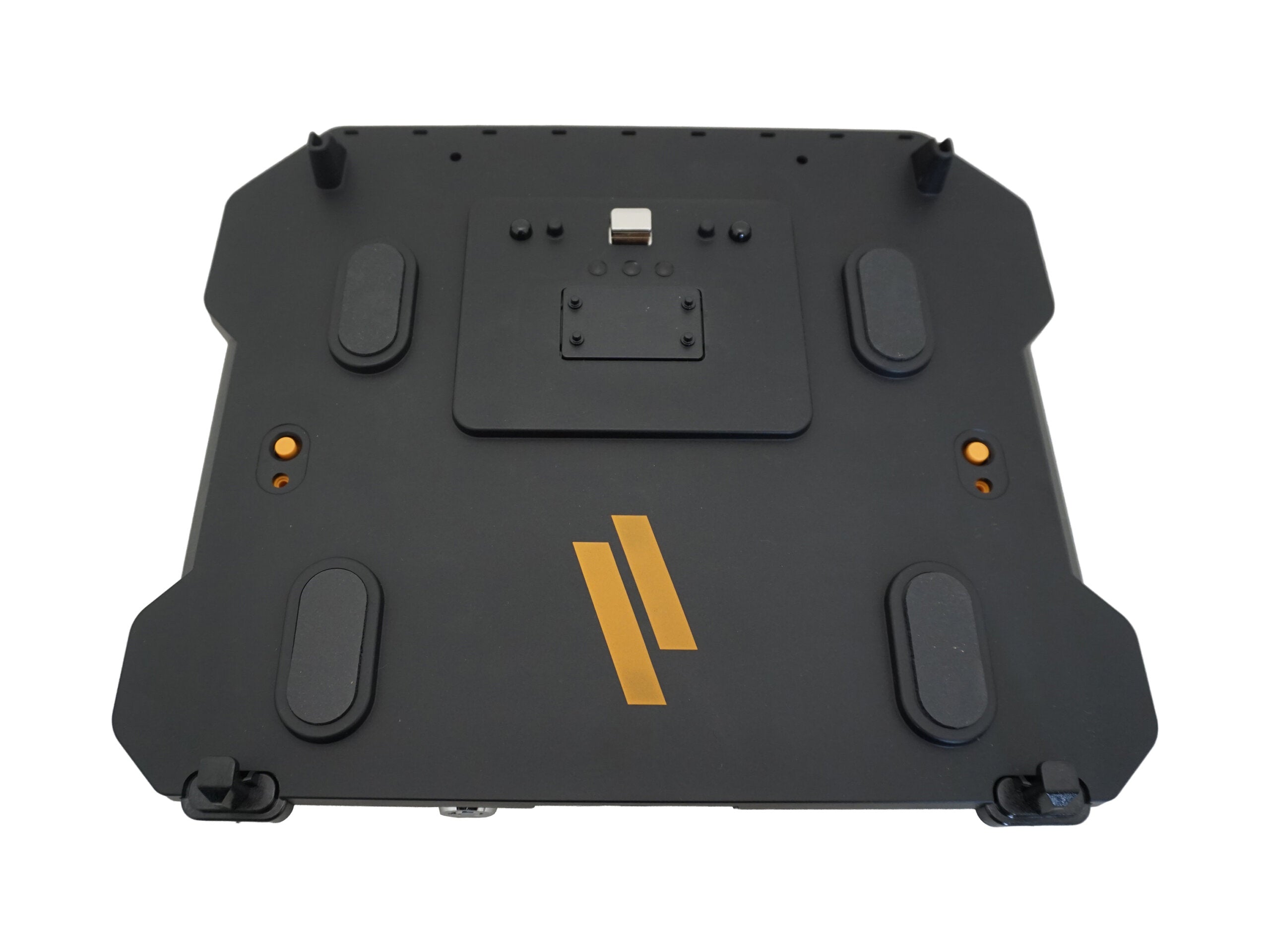

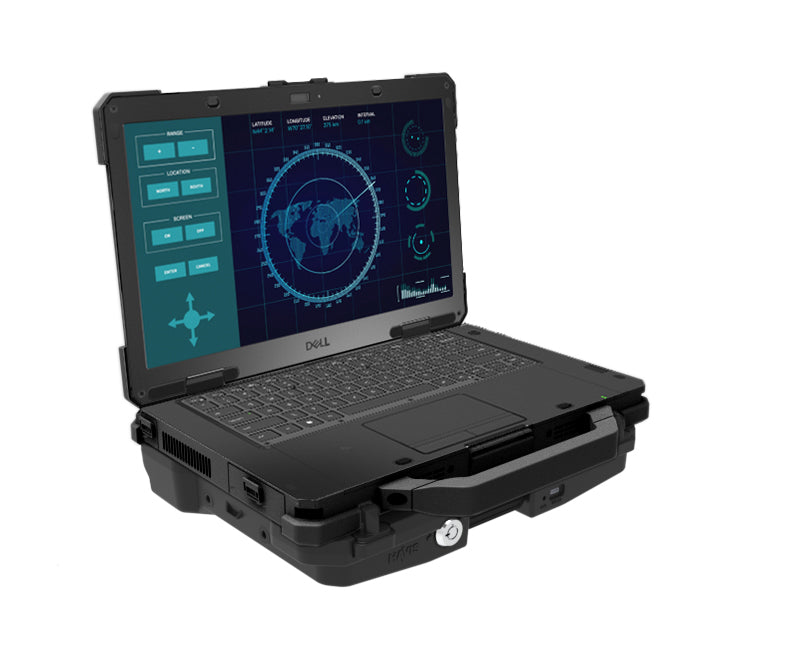

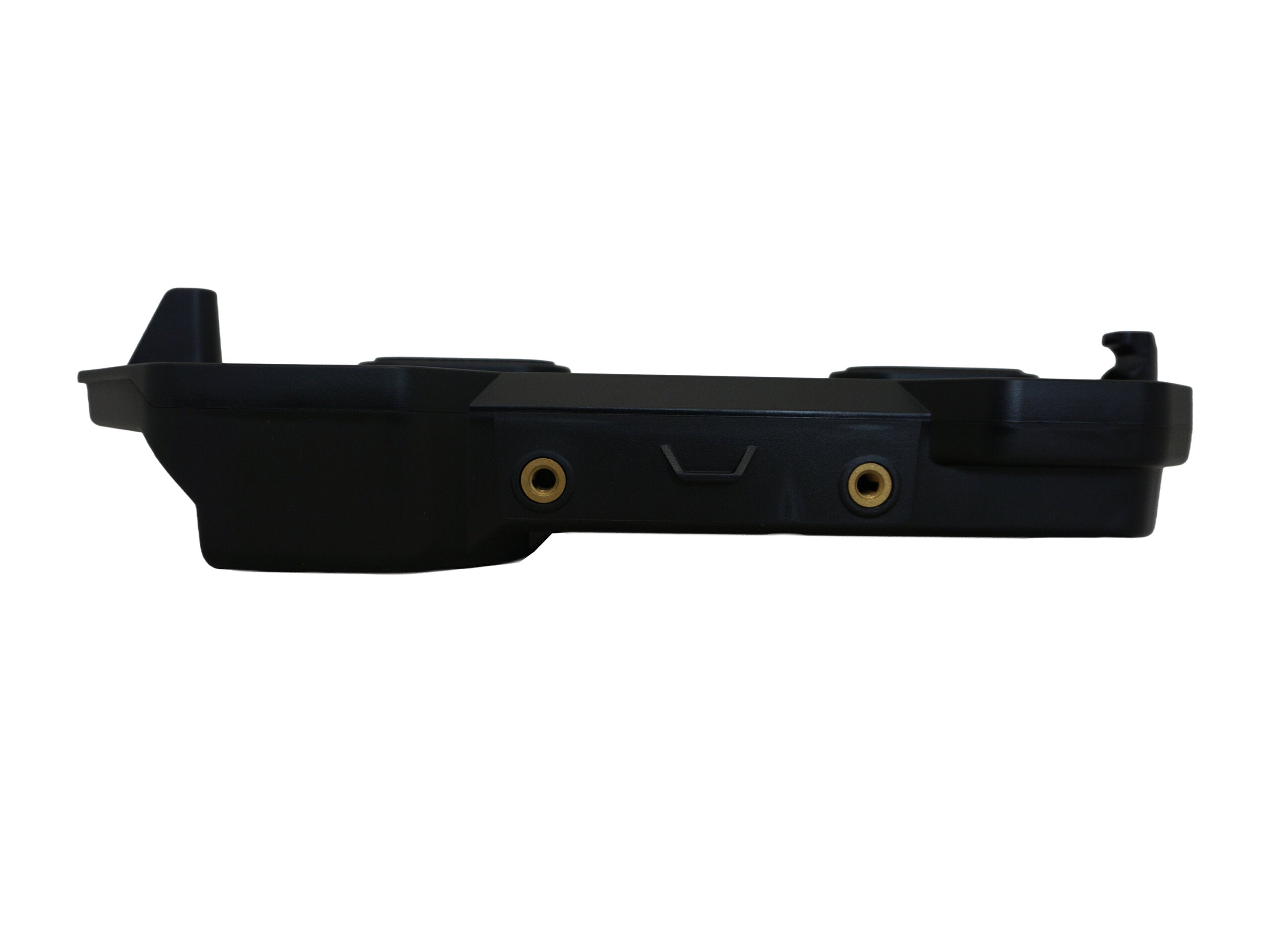

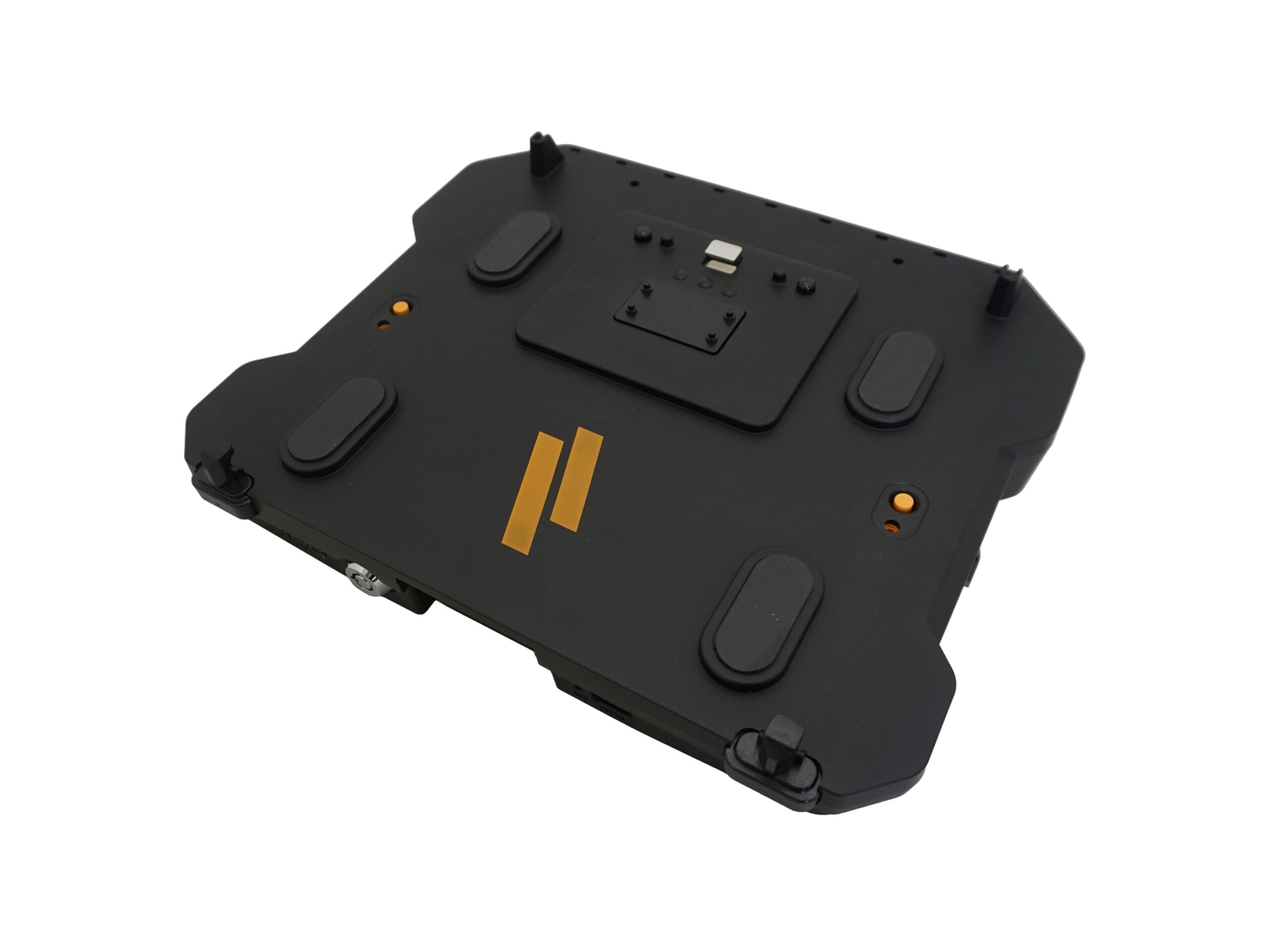

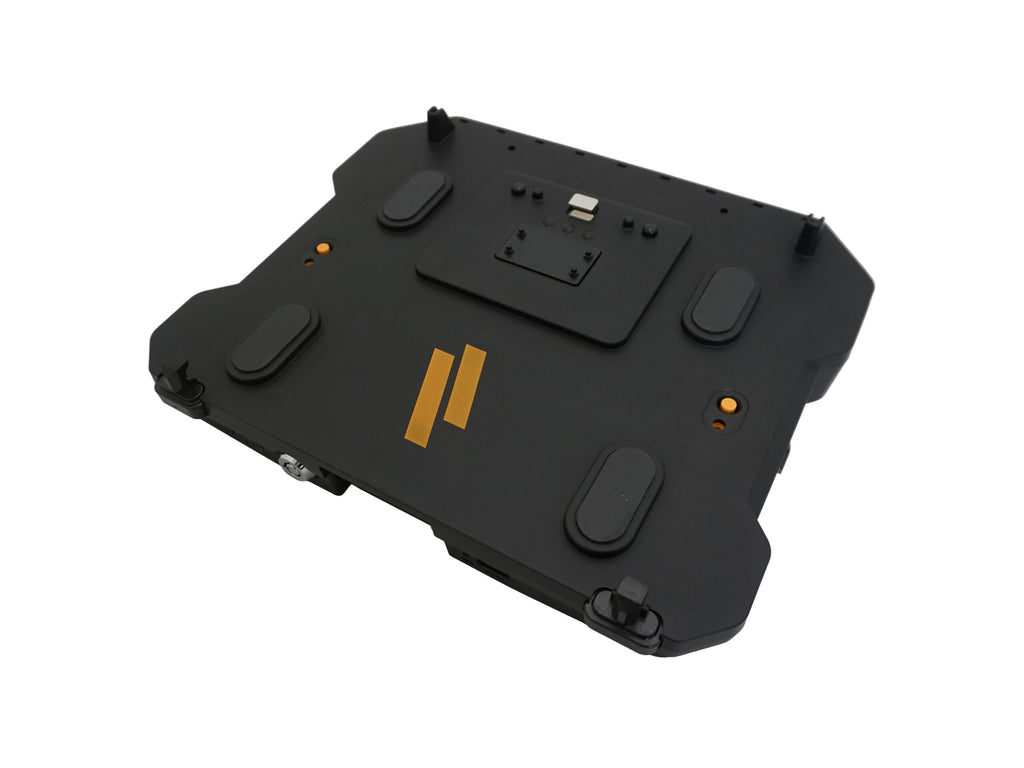

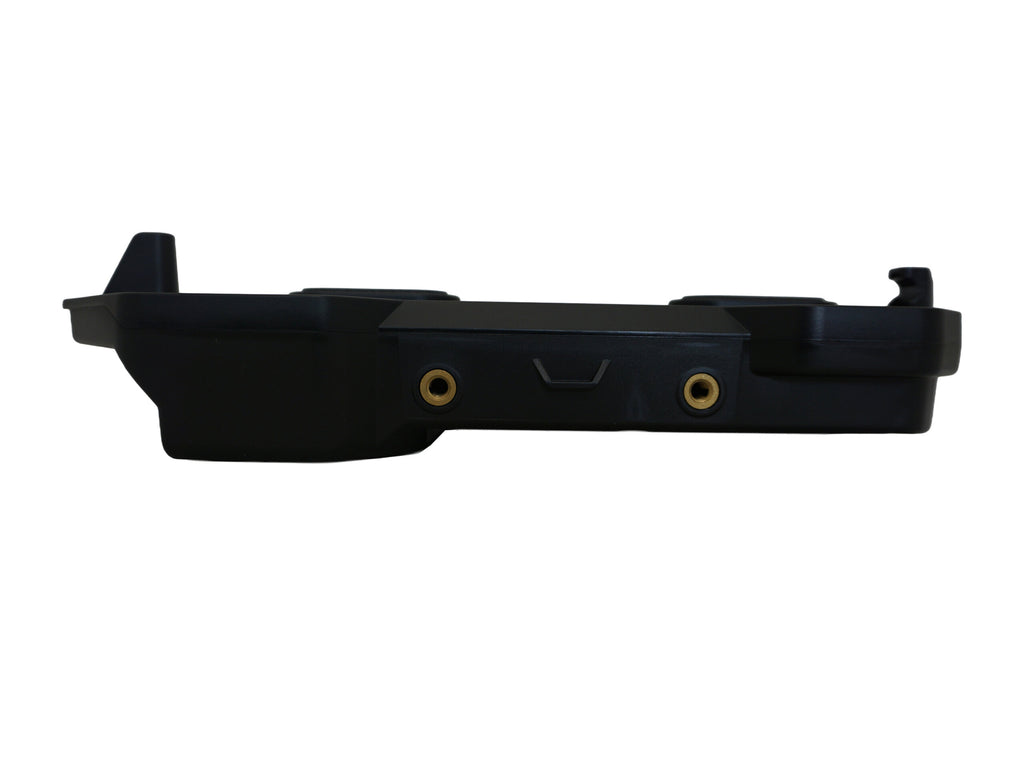

The DS-DELL-433 Havis Cradle is designed to securely hold compatible Dell Rugged Notebooks in vehicle, fleet, public safety, utility, and other demanding work environments. It provides safe stowage for the laptop while maintaining access to notebook buttons and ports when docked.
This cradle features one-handed docking and undocking with a pull latch, a compact footprint, integrated cable management, and a keyed lock for added security. It is built for professional mobile workstation setups where rugged notebook retention and reliable access are required.
Key Features
-
Supports compatible Dell Pro Rugged and Dell Rugged Notebook models
-
Provides safe and secure laptop stowage in demanding mobile environments
-
Updated one-handed docking and undocking with pull latch
-
Compact, lightweight design with reduced footprint
-
U-style mounting bracket with seating notch for easier installation
-
Maintains access to notebook buttons and ports when docked
-
Integrated cable management system helps organize connected cables
-
Keyed lock adds security for the docked notebook
-
Rounded edges and corners for comfort and safety
-
Made in the USA
Use Cases & Compatibility
The DS-DELL-433 is designed for public safety, utility, fleet, and other professional vehicle applications using compatible Dell Rugged Notebooks. It is intended to secure the notebook as part of a mobile workstation or vehicle mounting setup.
Compatible Devices:
- Dell Pro Rugged 14"
- Dell Pro Rugged 13"
- Dell 5430
- Dell 7330
- Dell 5420
- Dell 5424
- Dell 7424
Compatible power supply: LPS-182.
This cradle is compatible with the Havis DS-DA-412 screen support, sold separately.
Specifications
Brand: Havis
Manufacturer Part Number: DS-DELL-433
Compatible Devices: Dell Pro Rugged 14", Pro Rugged 13", 5430, 7330, 5420, 5424, 7424, 5414, 7214, 5404, and 7204 Rugged Notebooks
Compatible Power Supply: LPS-182
Dimensions: Height: 2.73" / 69.3mm; Width: 12.39" / 314.7mm; Depth: 10.59" / 269mm
Product Weight: Dock: 3.30 lbs. / 1.50 kg; Mounting Bracket: 1.42 lbs. / 0.64 kg
Additional Details: Gross weight: 5.25 lbs.; compatible with DS-DA-412 screen support, sold separately
Certifications / Testing: SAE J1455 30mph crash testing; latch handle and docking connectors cycle tested to 30,000 cycles; hot/cold operational testing from -20°C to 63°C / -4°F to 145°F; hot/cold storage testing from -40°C to 85°C / -40°F to 185°F
Brand & Warranty
Brand: Havis
Manufacturer Part Number: DS-DELL-433
Warranty: Manufacturer's 3-Year warranty
