Description
Features:

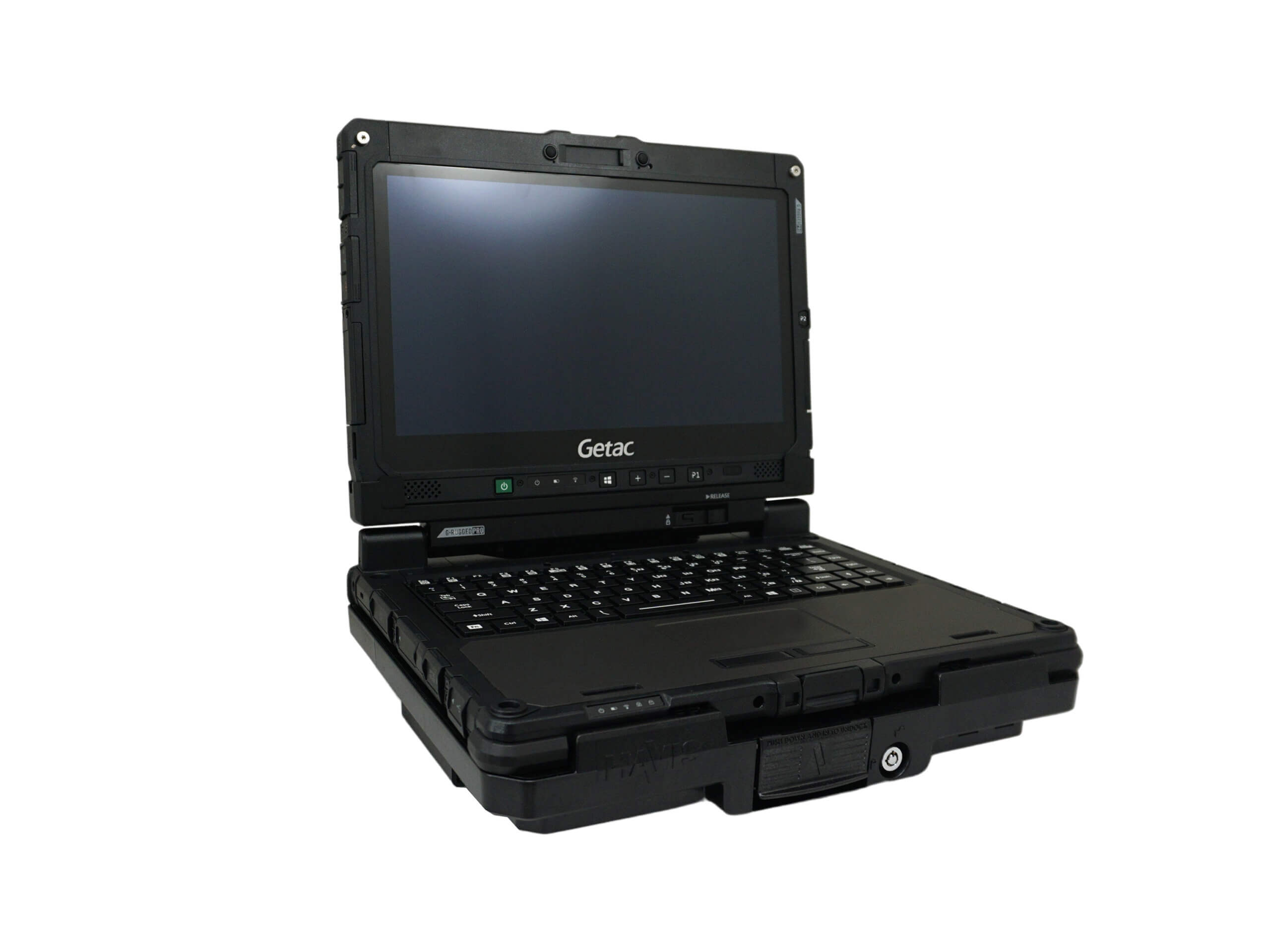

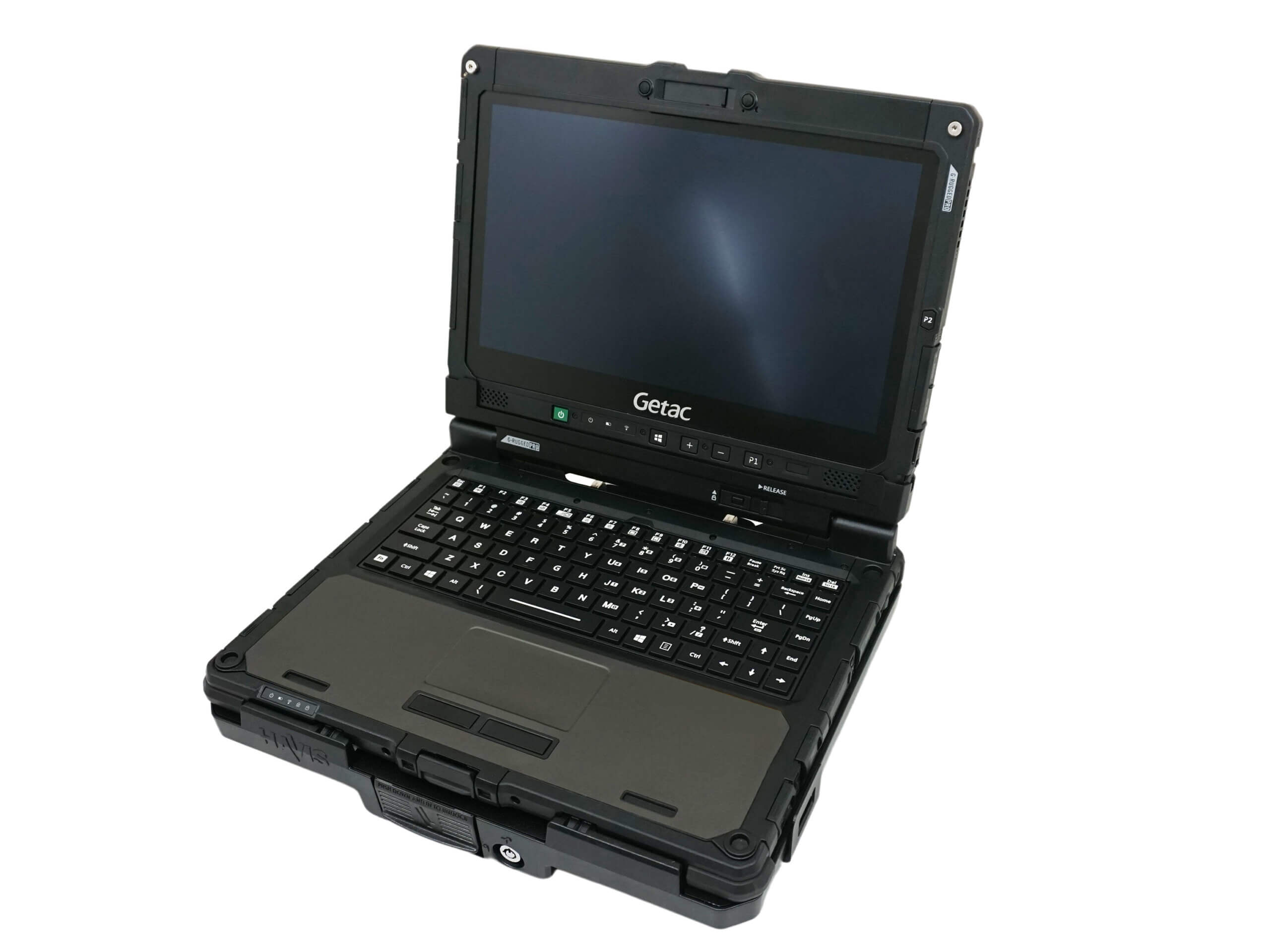

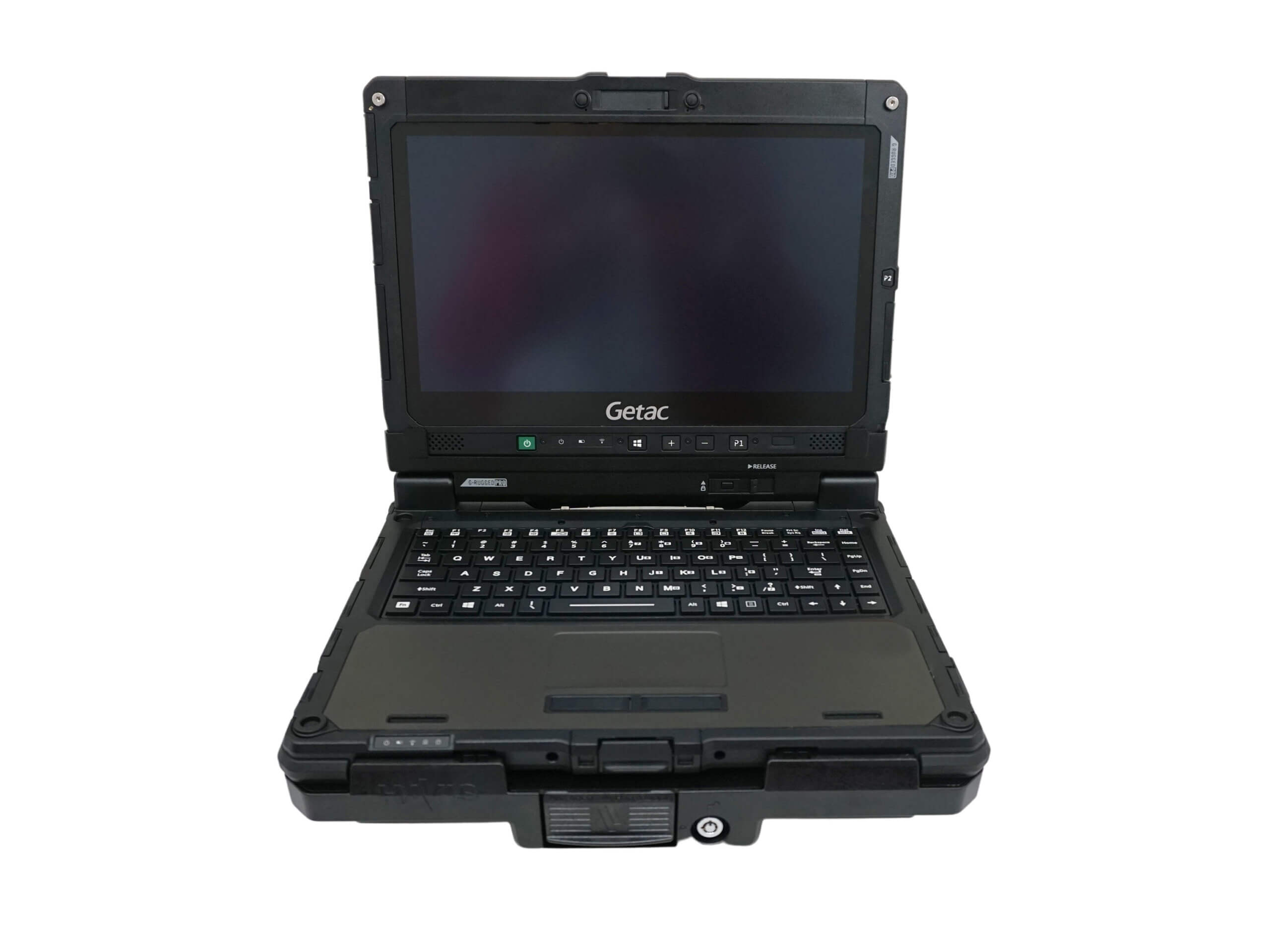

- Docking station with triple pass-through rf antenna connections and LPS-140 (120W Getac vehicle power supply with LPS-208) for Getac K120 convertible laptop

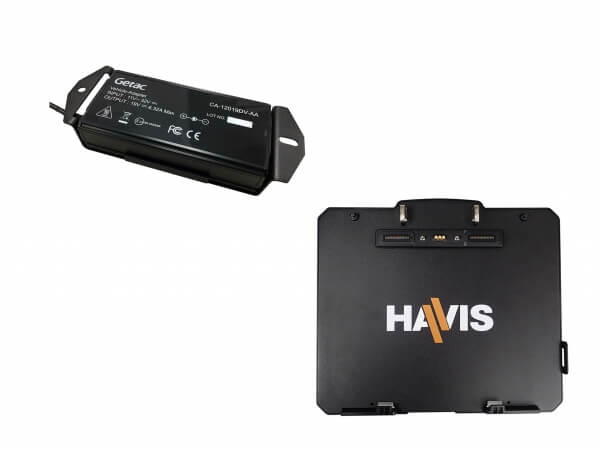

- Includes LPS-140 power supply with LPS-208 panel mount bracket for convenient mounting of the power supply
- Low profile design maximizes available space inside of vehicle
- Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
- Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
- Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
- Lock and key supplied for peace of mind theft deterrence
- Made in the USA
Specifications:
- Certifications:Vibration Testing: MIL-STD 810G 514.5; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
- Docking station dimensions (with mounting bracket): 11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm)
- Docking station dimensions (without mounting bracket): 11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm)
- Connectivity: USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
- Dock input power: 19V DC
- Gross weight: 9.5 lbs.
Compatible Devices:
- Getac
- K120 Convertible Laptop
Brand: Havis
Part number: DS-GTC-1002-3
Warranty: Manufacturer's 3-year warranty
