Description
Features:

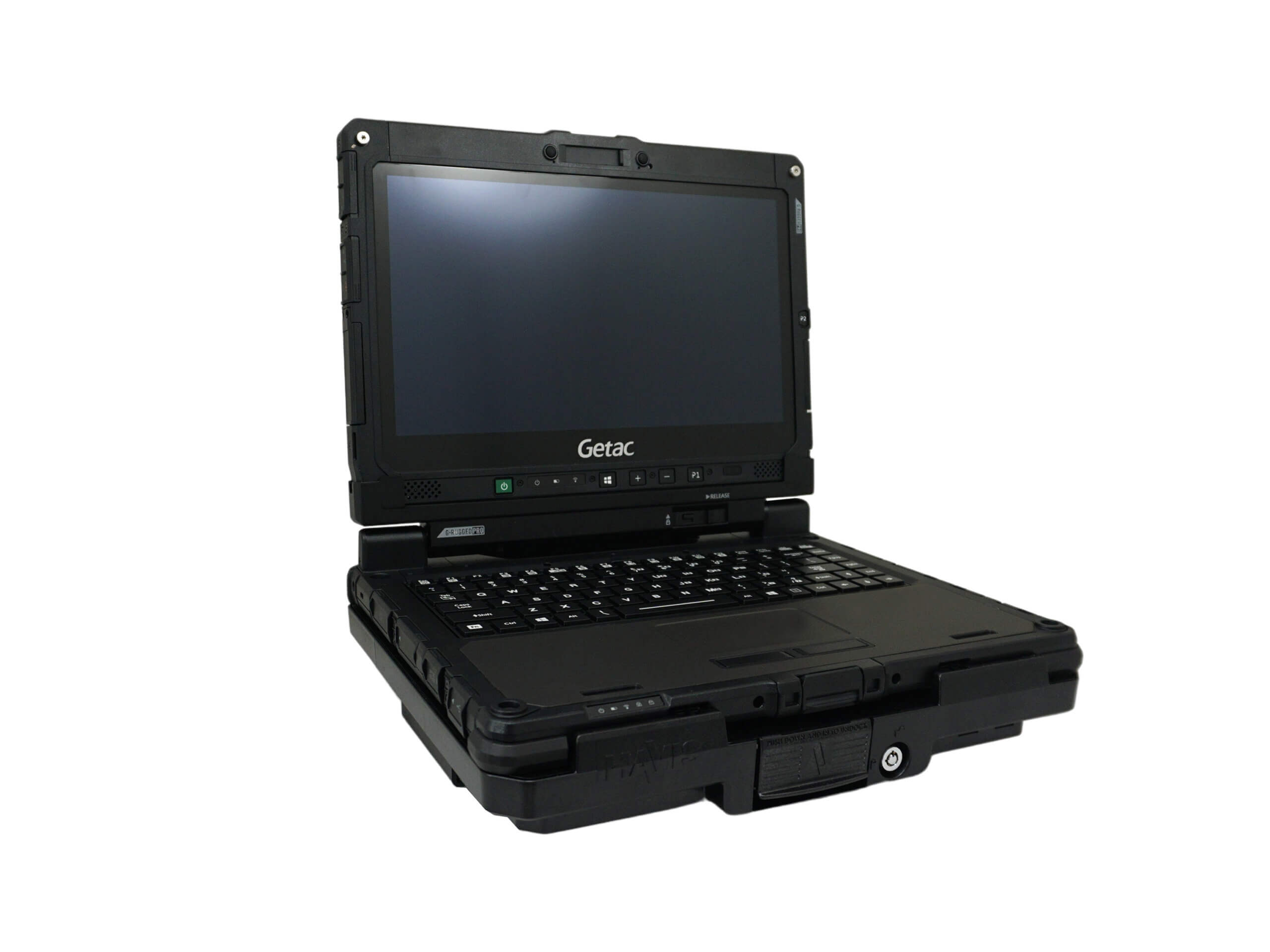

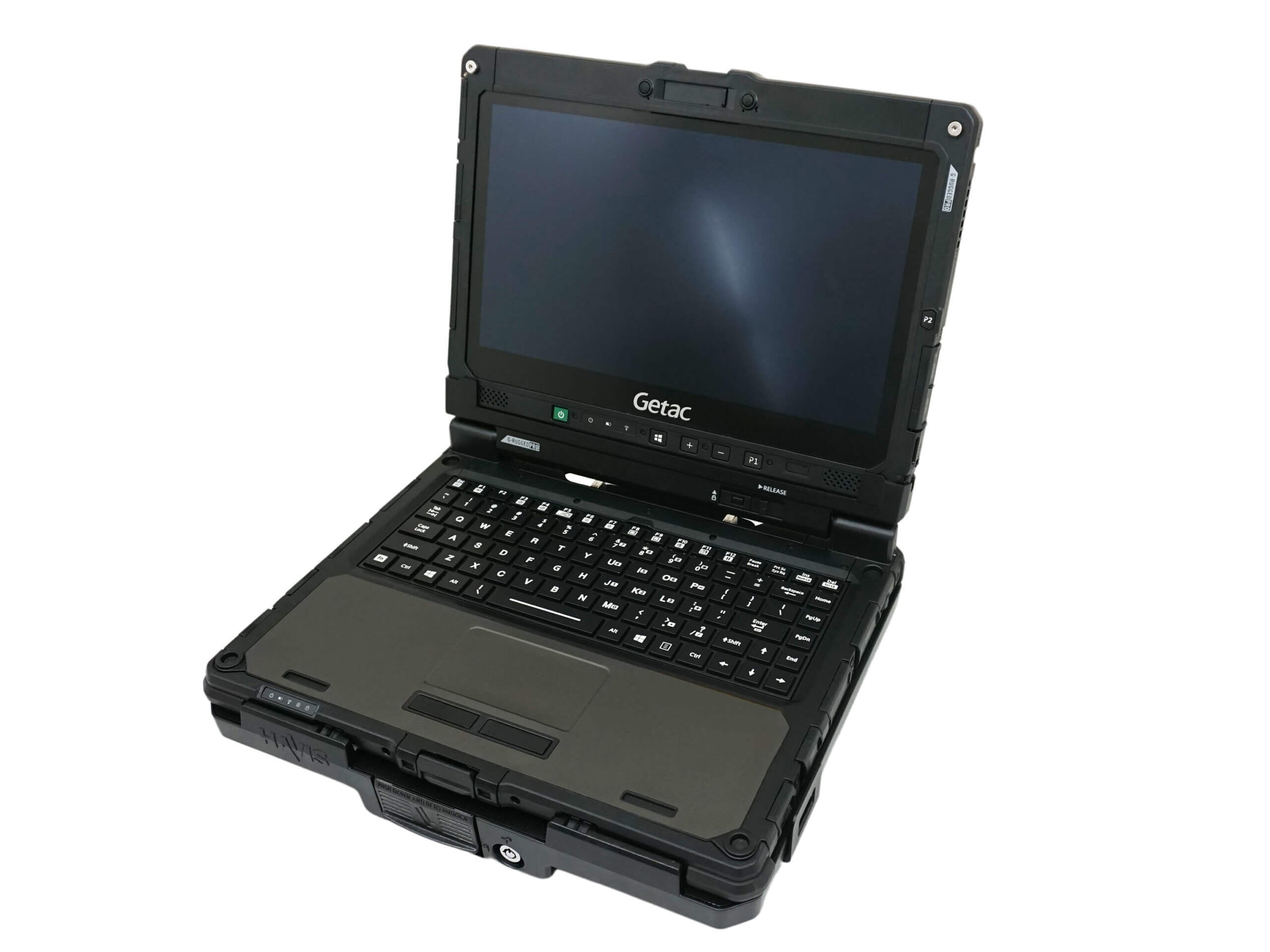

- Package - docking station with tri-pass rf antenna and DS-DA-422 (screen support) for Getac K120 convertible laptop
- Includes DS-DA-422 screen support, designed to support the laptop screen and reduce vibration
- Low profile design maximizes available space inside of vehicle
- Full port replication and integrated strain relieving provide simple, safe, and secure connectivity to essential peripherals, as well as convenient and efficient cable
- Rounded corners and edges provide safety in accidents and during airbag deployment, in addition to daily use and operation of docking station
- Designed to fit all Havis and VESA 75 hole pattern mounting equipment, as well as most competitors
- Lock and key supplied for peace of mind theft deterrence
- Made in the USA
Specifications:
- Certifications: Vibration Testing: MIL-STD 810G 514.8; crash test: SAE J1455 30mph Crash Testing; cycle test: latch handle & docking connectors mechanism, 30,000 cycles; environmental testing: hot/cold operational & storage and thermal shock; bump testing
- Connectivity: USB: fully-powered USB 2.0 (3 total - 2 front facing, 1 on I/O panel), USB 3.0 (3); Ethernet: RJ45 (2); serial: DB9 (1); video: VGA (1), HDMI (1); dock input power: (1); rf: (3 SMA connectors)
- Dock input power: 19V DC
- Docking station dimensions (with mounting bracket): 11.66" l x 13.32" w x 2.68" h (296mm x 338mm x 68.2mm)
- Docking station dimensions (without mounting bracket): 11.66" l x 13.32" w x 2.43" h (296mm x 338mm x 61.7mm)
- Gross weight: 8.5 lbs.
Compatible Devices:
- Getac
- K120 Convertible Laptop
Brand: Havis
Part number: PKG-DS-GTC-1001-3
Warranty: Manufacturer's 3-Year warranty
