Description

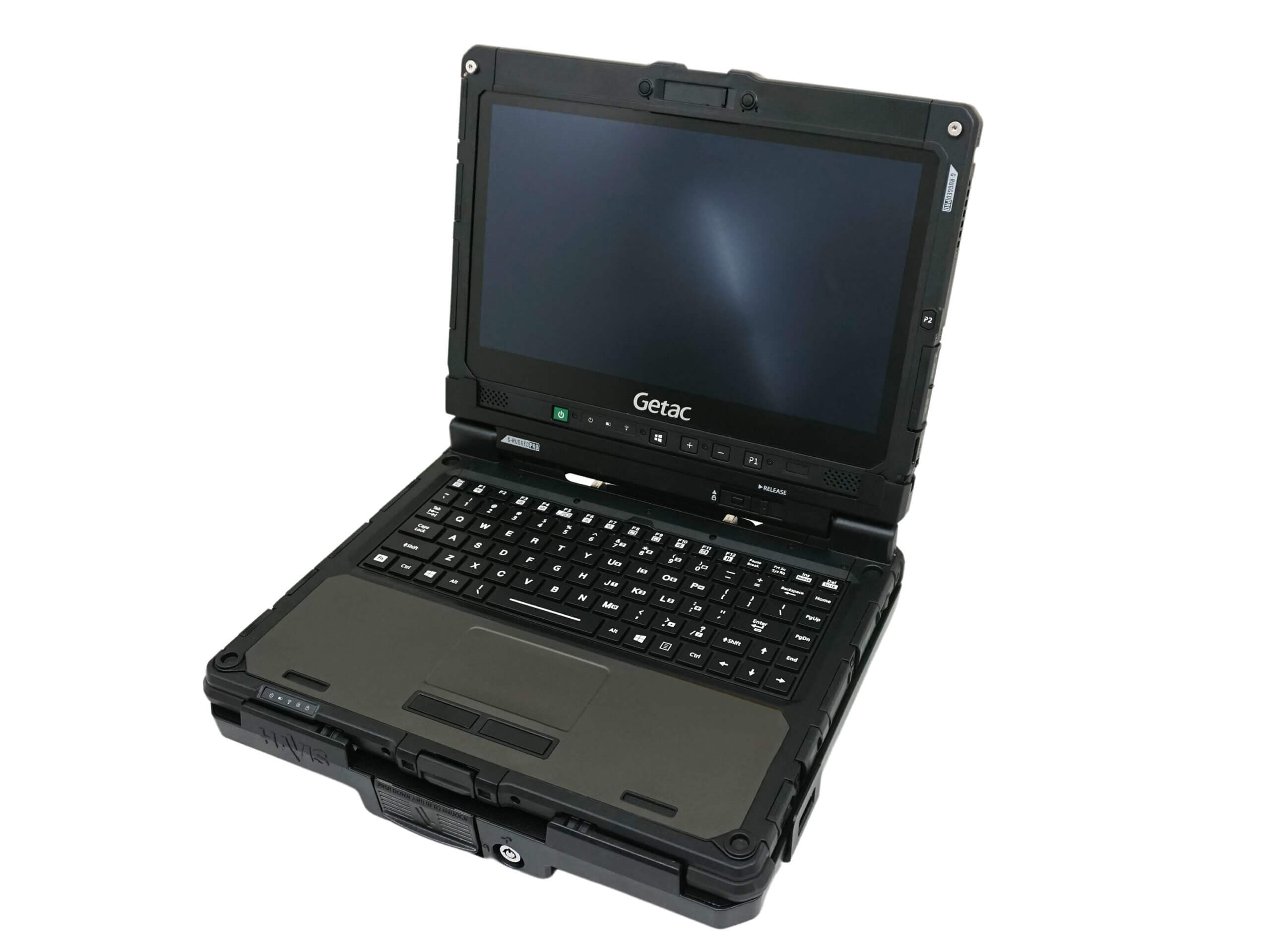

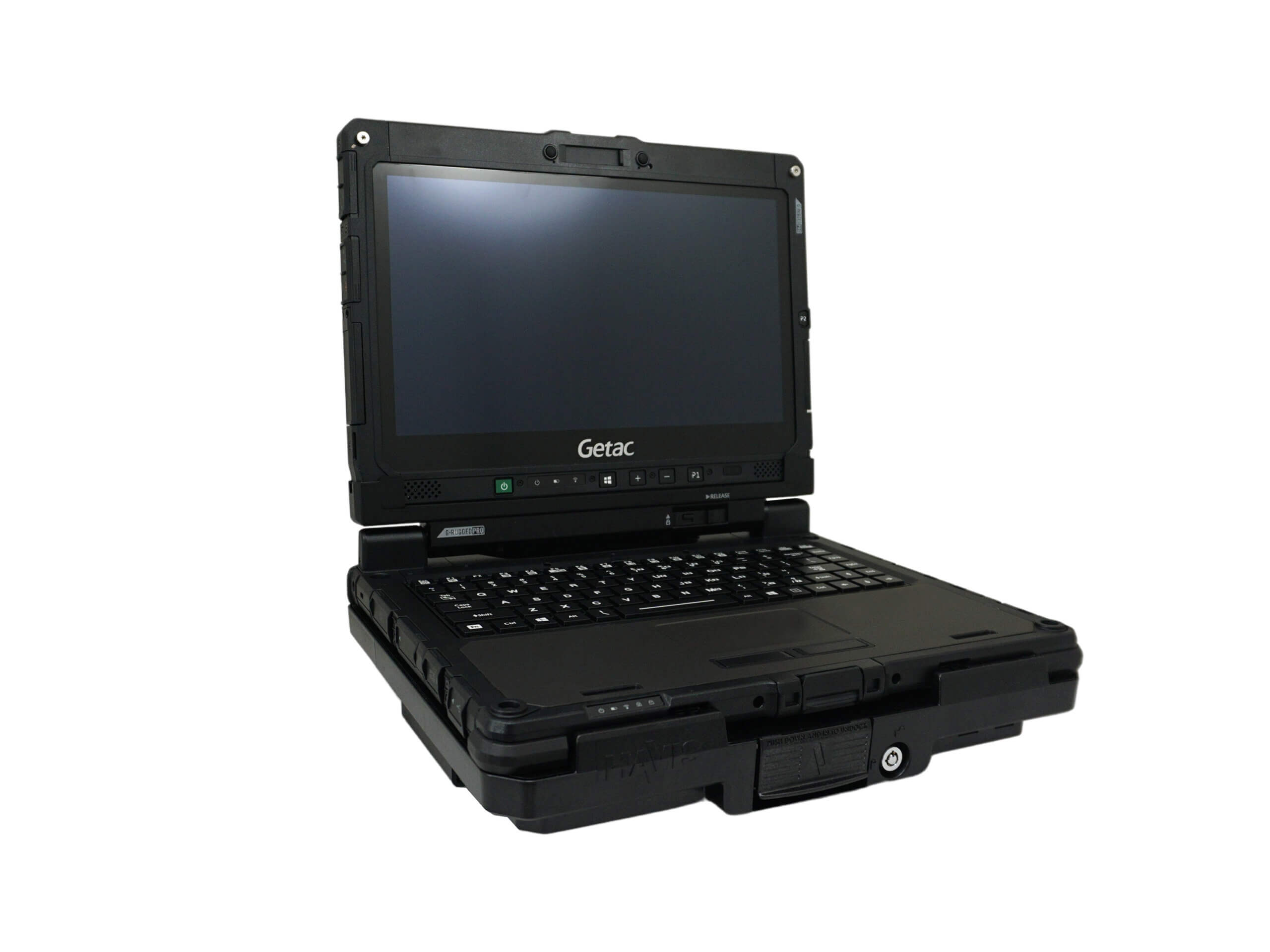

The Havis PKG-DS-GTC-1002-3-BW docking station package is designed for the Getac K120 convertible laptop and combines secure device retention, full port replication, vehicle power and screen support in one mobile-workstation package. Triple RF pass-through antenna connections, multiple USB and network ports, video outputs and serial connectivity provide access to essential peripherals while the included 120W vehicle power supply helps keep the Getac K120 powered during mobile operations.
Key Features
- Purpose-built docking station package for the Getac K120 convertible laptop
- Triple RF pass-through antenna connections with three SMA connectors
- Full port replication for USB, Ethernet, serial and video peripherals
- Includes Havis LPS-140-BW 120W Getac vehicle power supply
- Includes LPS-208 panel-mount bracket and LPS-211 accessory bracket for power-supply installation
- Includes DS-DA-422 screen support to help reduce laptop-screen vibration
- Low-profile design helps conserve space inside the vehicle
- Integrated strain relief and cable management help protect and organize connected cables
- Lock and key provide added theft deterrence
- Rounded corners and edges improve safety during everyday vehicle use
- Compatible with Havis mounting equipment, VESA 75 mounting patterns and many third-party mounting systems
Use Cases & Compatibility
The Havis PKG-DS-GTC-1002-3-BW is designed specifically for the Getac K120 convertible laptop. Its rugged construction, integrated power and extensive peripheral connectivity make it well suited for public safety, utility, field service, fleet and other demanding mobile workstation applications.
The docking station provides the secure laptop interface and connectivity package but still requires compatible mounting hardware for installation in a vehicle or other workspace.
Specifications
- Compatible computer: Getac K120 convertible laptop
- Dock input power: 19V DC
- USB 2.0: 3 fully powered ports
- USB 3.0: 3 ports
- Ethernet: 2 RJ45 ports
- Serial: 1 DB9 port
- Video: 1 VGA and 1 HDMI port
- RF connections: 3 SMA connectors
- Docking station dimensions with mounting bracket: 11.66" L x 13.32" W x 2.68" H (296 x 338 x 68.2 mm)
- Docking station dimensions without mounting bracket: 11.66" L x 13.32" W x 2.43" H (296 x 338 x 61.7 mm)
- Dock weight without mounting bracket: 4.47 lb (2.03 kg)
- Dock weight with mounting bracket: 5.85 lb (2.65 kg)
- Vibration testing: MIL-STD-810G 514.8
- Crash testing: SAE J1455, 30 mph
- Cycle testing: Latch handle and docking connector mechanism tested to 30,000 cycles
- Environmental testing: Hot/cold operation and storage, thermal shock and bump testing
What’s Included
- Havis docking station with triple RF pass-through antenna connections
- LPS-140-BW 120W Getac vehicle power supply
- LPS-208 power-supply panel-mount bracket
- LPS-211 multipurpose accessory bracket
- DS-DA-422 screen support
- Lock and key
Brand & Warranty
Brand: Havis
Part number: PKG-DS-GTC-1002-3-BW
Warranty: Manufacturer 3-year warranty
