Description

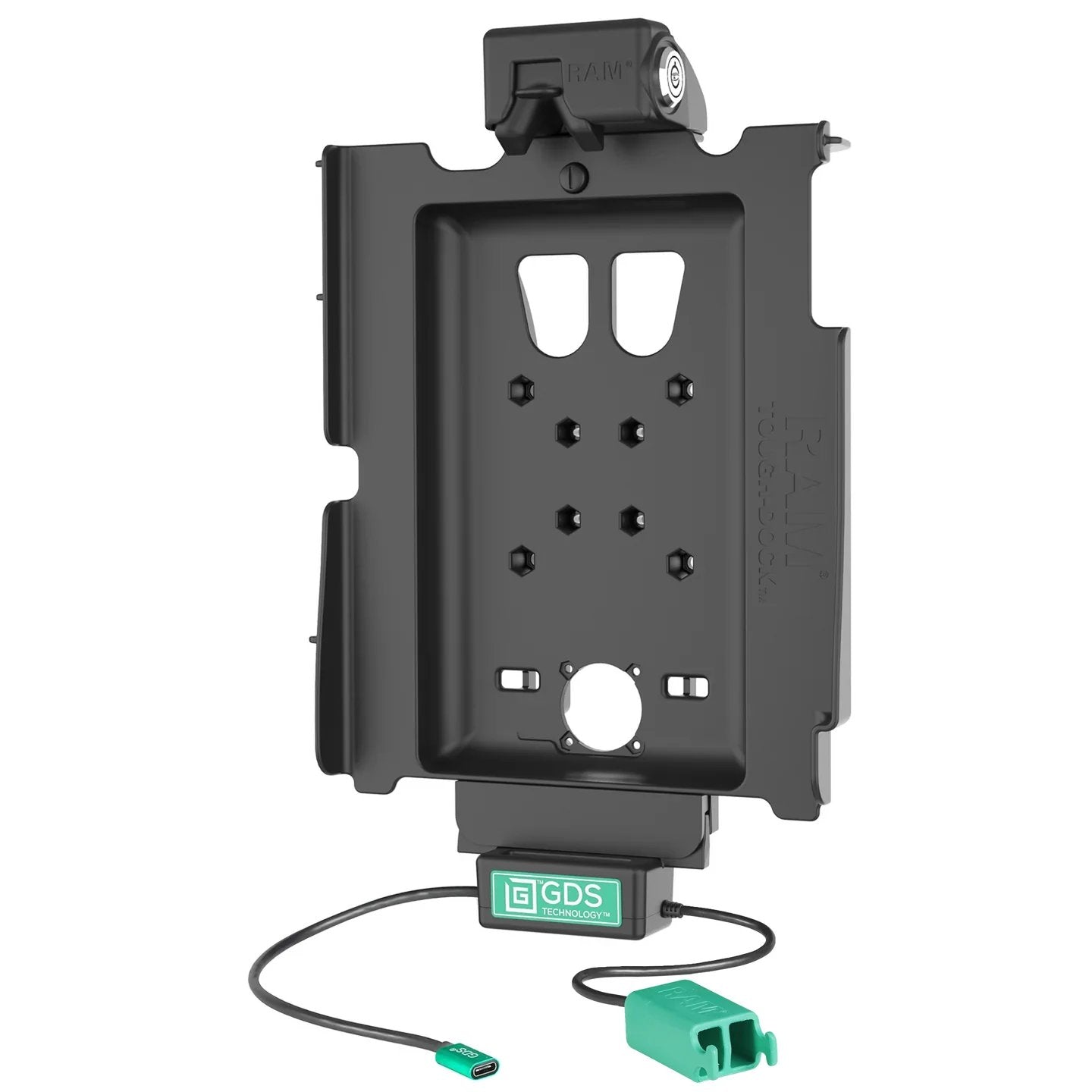

The Locking GDS® Tough-Dock™ with Dual USB-A is a powered, key-locking tablet dock for supported Apple iPad Pro 12.9, iPad Pro 13, and iPad Air 13 models installed in an IntelliSkin® Next Gen protective sleeve. It is designed for fleet, commercial vehicle, warehouse, public safety, and mobile workstation environments where tablets need to stay secure, charged, and connected while in use.

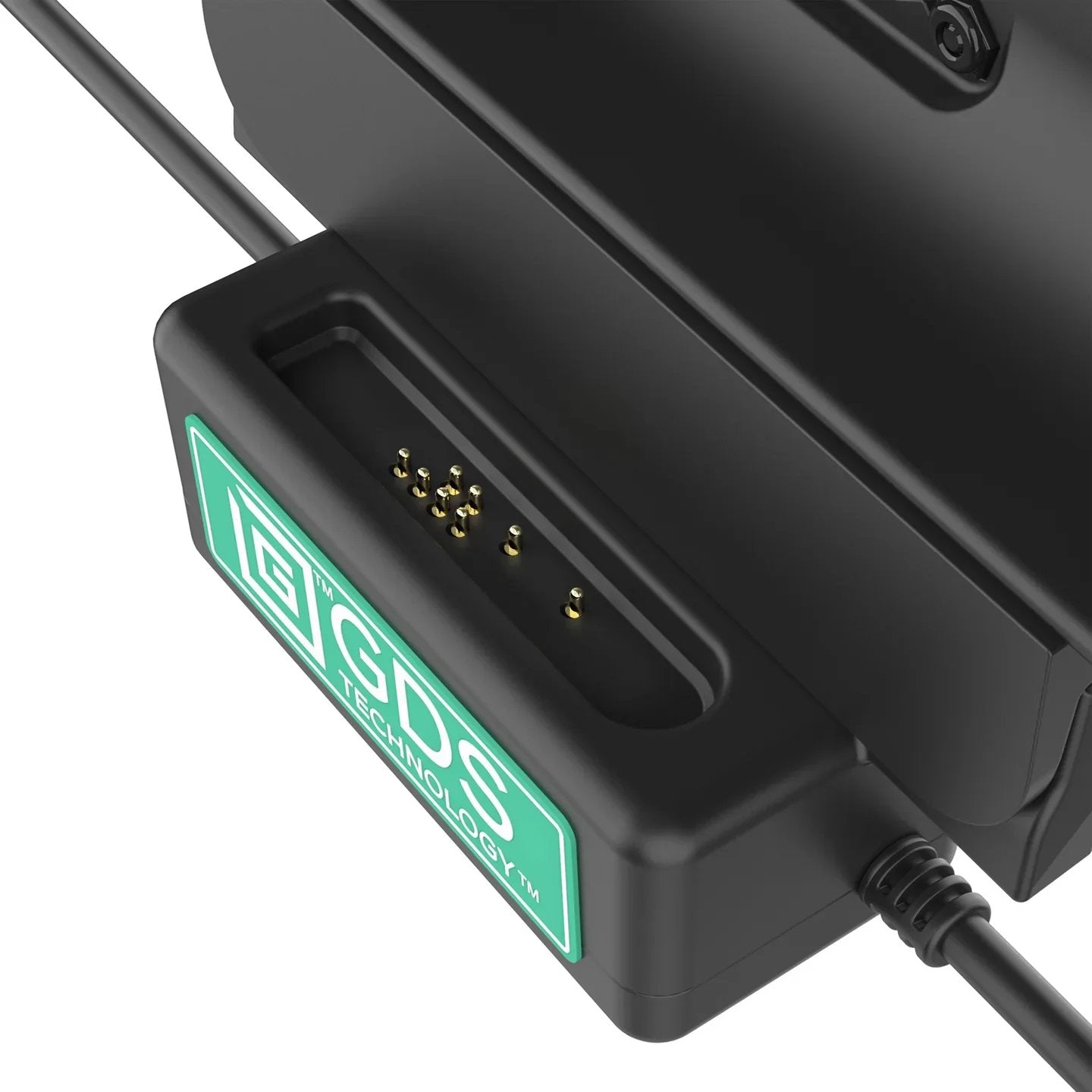

This dock provides USB-C power input through the dock connection and includes dual USB-A ports for connecting up to two peripherals, such as a keyboard, printer, scanner, or other supported accessories. The housing also accommodates the RAM® NFC Extender and works with RAM® mounting systems using a compatible 4-hole AMPS pattern ball base.
This is a dock component, not a complete mounting kit. A compatible RAM mounting base, arm, or ball-and-socket system is required for installation.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features:

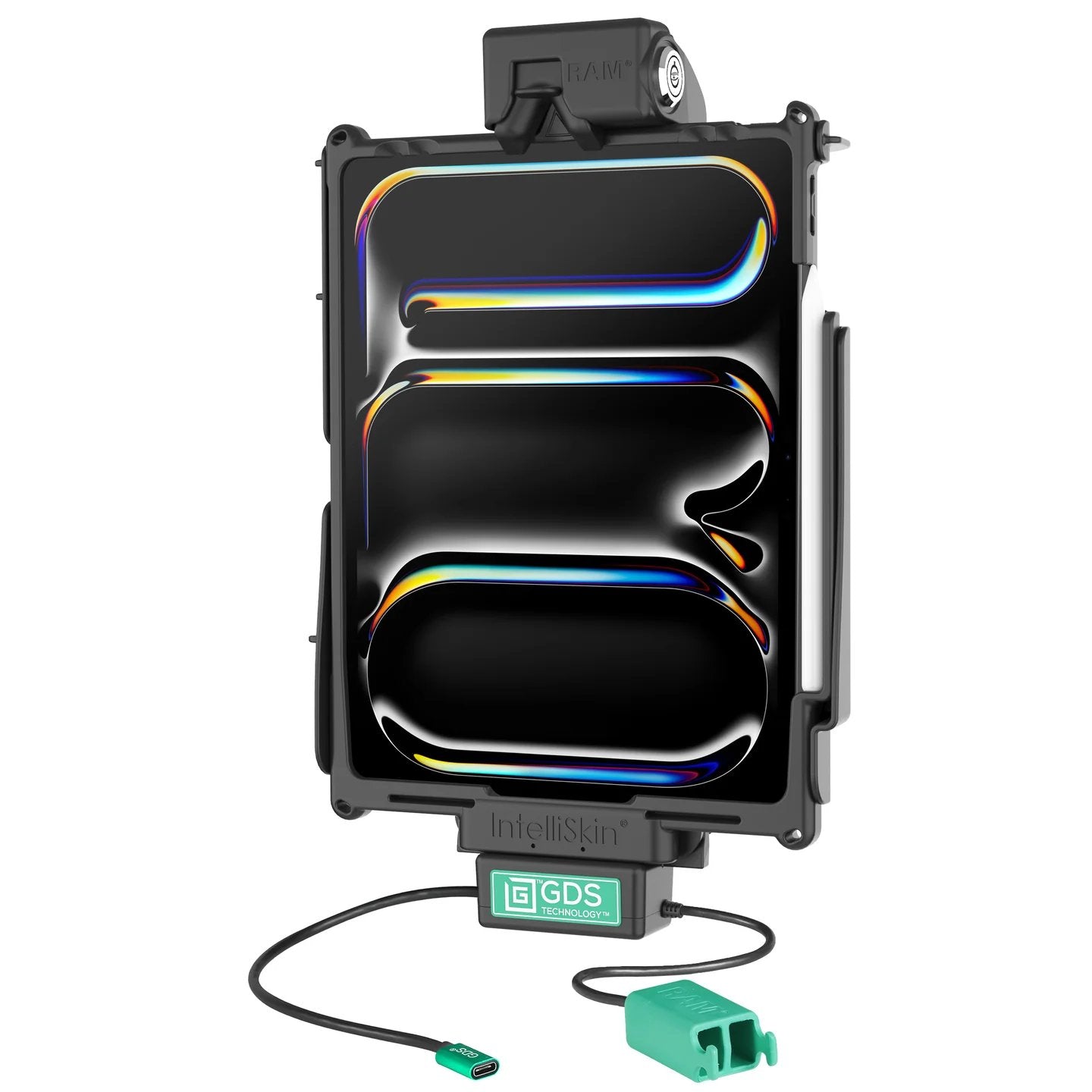

• Key-locking powered dock for supported Apple iPad models in IntelliSkin® Next Gen sleeves
• USB-C power input supports 5V–20V power delivery up to 60W

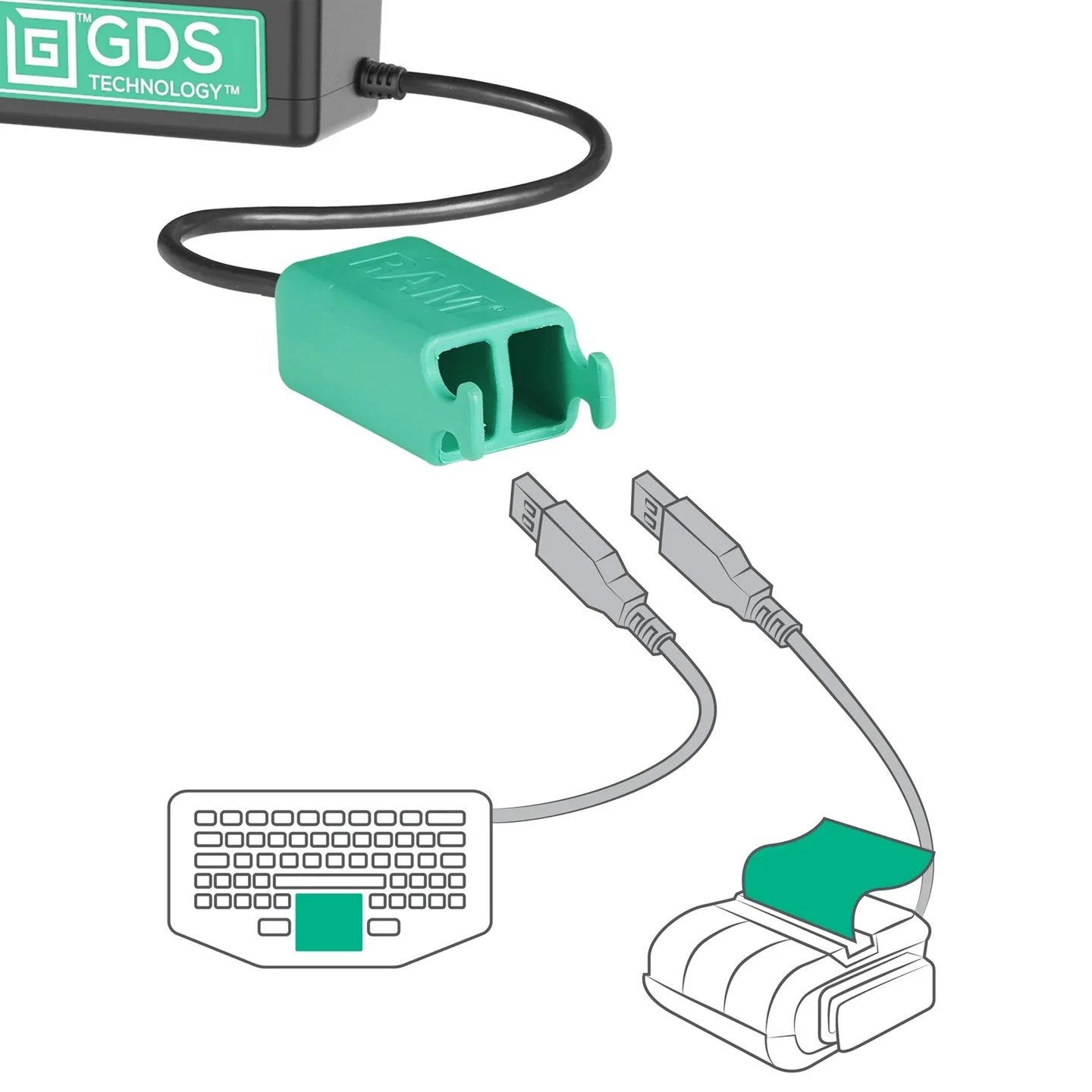

• Dual USB-A ports allow connection of up to two supported peripheral devices

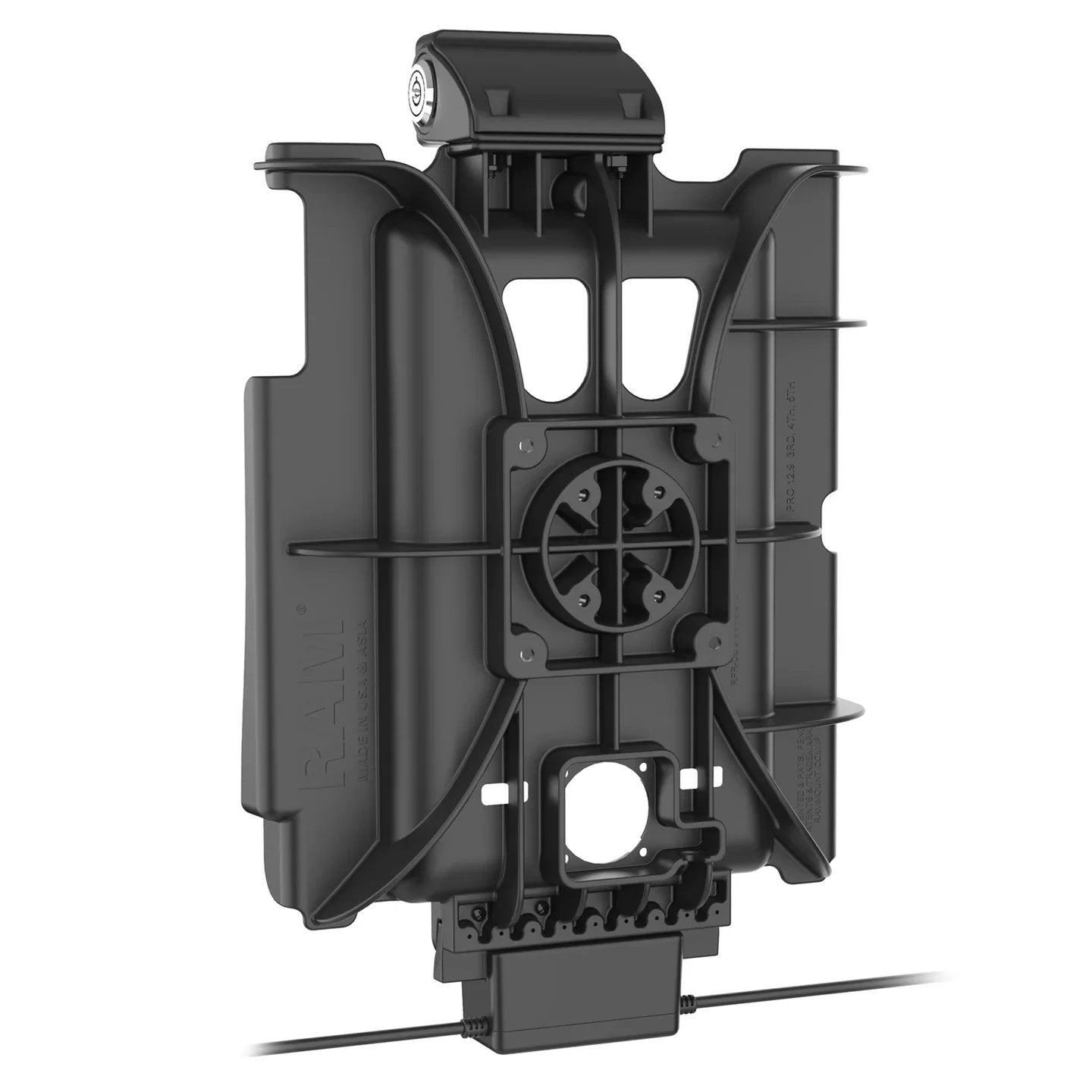

• Compatible with RAM® ball-and-socket mounting systems using a 4-hole AMPS pattern ball base
• Housing is designed to accommodate the RAM® NFC Extender

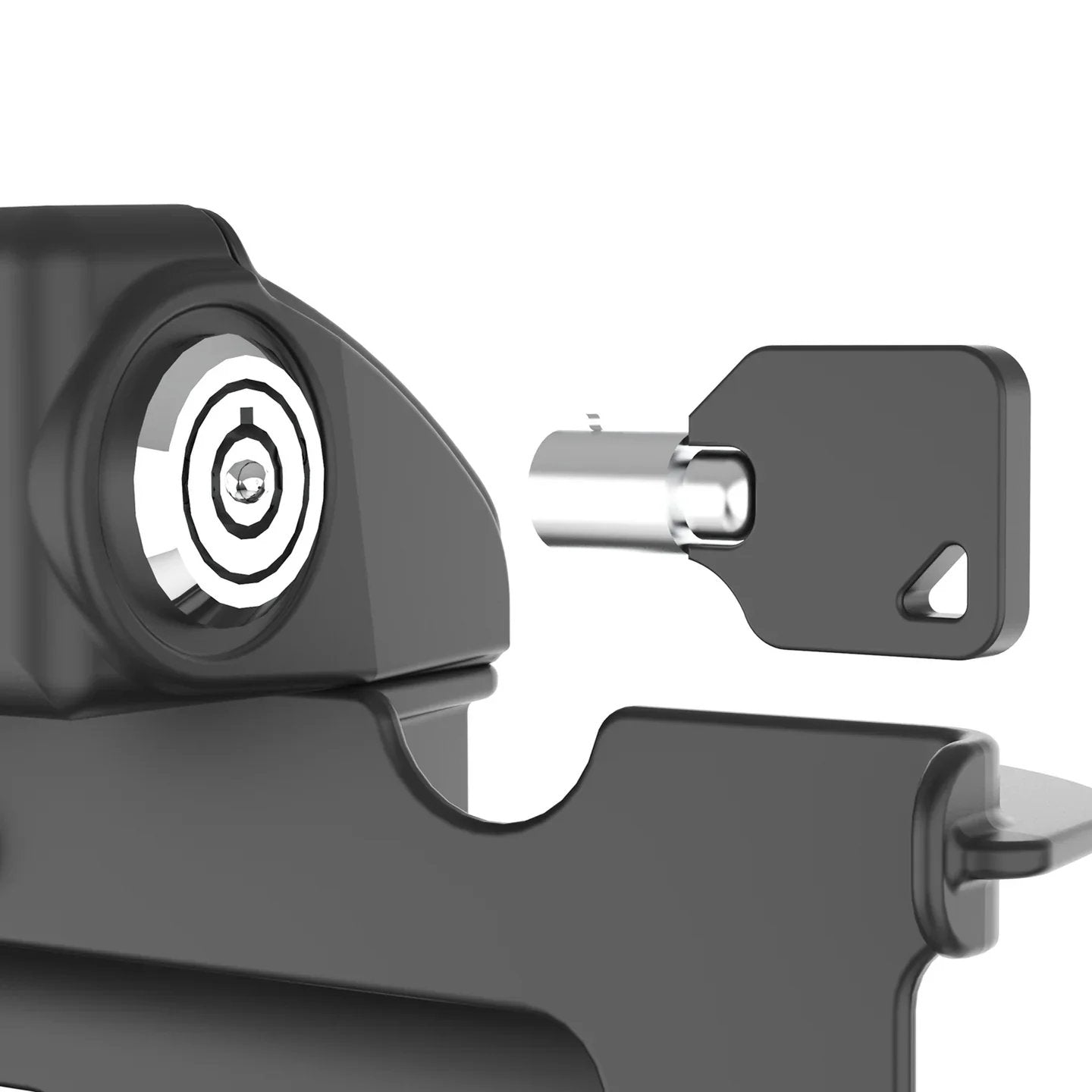

• Includes hardware for installation and two keys for locking access
• Built from high-strength composite for demanding vehicle and fleet environments
Use Cases & Compatibility:
This locking iPad dock is designed for professional tablet installations in vehicles, fleets, warehouses, service trucks, workstations, and other mobile environments where the tablet needs to remain powered and secured. It is especially useful for users who need peripheral connections for accessories such as keyboards, printers, scanners, or similar USB-A devices.
The dock is compatible with supported Apple iPad models only when the tablet is installed in an IntelliSkin® Next Gen protective sleeve. It requires a compatible RAM mounting system and is not a complete mount by itself.
Compatible devices include:
• Apple iPad Pro 12.9 3rd Gen with IntelliSkin® Next Gen
• Apple iPad Pro 12.9 4th Gen with IntelliSkin® Next Gen
• Apple iPad Pro 12.9 5th Gen with IntelliSkin® Next Gen
• Apple iPad Pro 12.9 6th Gen with IntelliSkin® Next Gen
• Apple iPad Air 13 M2 with IntelliSkin® Next Gen
• Apple iPad Air 13 M3 with IntelliSkin® Next Gen
• Apple iPad Pro 13 M4 with IntelliSkin® Next Gen
• Apple iPad Pro 13 M5 with IntelliSkin® Next Gen
Specifications:
Product Type: Locking Powered Tablet Dock
Device Fit: Apple iPad Pro 12.9, iPad Pro 13, and iPad Air 13 models with IntelliSkin® Next Gen protective sleeve
Hole Pattern:
• 75 x 75mm VESA
• 4-Hole AMPS: 1.181" x 1.496"
Input Connector: USB Type-C
Peripheral Connection: Dual USB Type-A ports for up to 2 peripherals
Output Voltage: 5V–20V @ 3A
Power Output: 60W
Peripheral Output: 900mA per port
Output Cable Length: 215mm
Material: High-strength composite
Weight: 2.05 lb
Included Hardware:
• (2) Keys
• (4) #8-32 x 5/8" Machine Screws
• (4) #8-32 Nylock Nuts
Additional Information: Power Delivery (PD) charger is required to supply sufficient power to this device.
Brand and Warranty:
Brand: RAM Mounts
Part Number: RAM-GDS-DOCKL-AP37CD2U
Warranty: Manufacturer’s 3-year warranty
