RAM No-Drill Laptop Mount for 2019-22 Ram 1500 Pickup Trucks

No reviews

Sale price$275.99
Only 2 units left

Manufacturer Part Number: RAM-VB-186ST1-SW1



  • No-Drill mounting base custom designed to fit the listed vehicle below perfectly
  • Installs in minutes with no drilling required on passenger side floor, in front seat using existing seat bolts
  • Low profile keeps mount away from passenger leg space
  • 12" tall female(lower) Tele-Pole with a 3.5" x 3.5" square plate base with 8" upper male Tele-Pole providing a telescoping feature that ranges from 12 to 18 inches

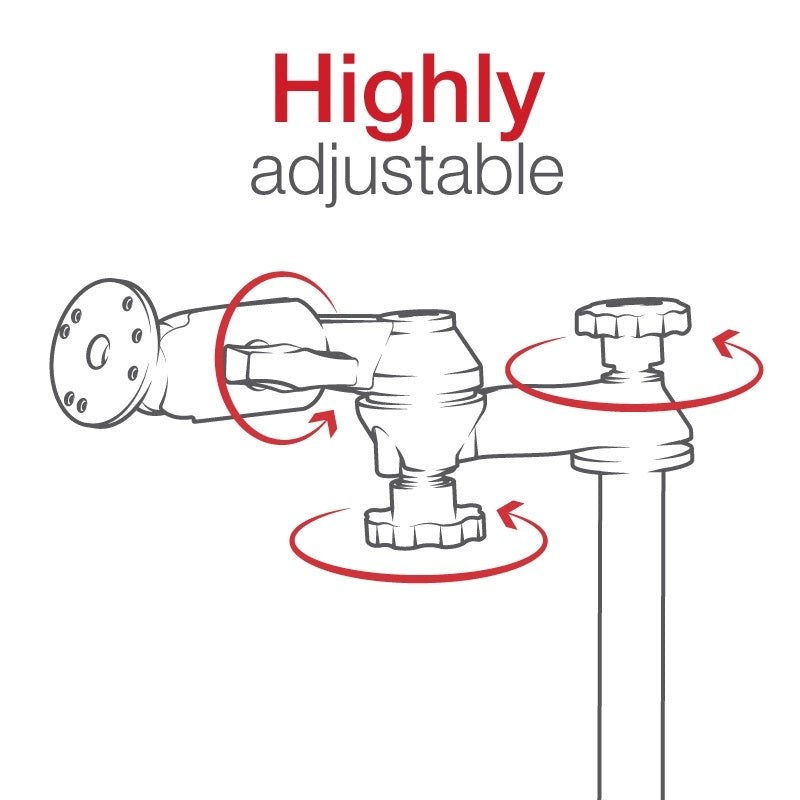

  • Height of the Tele-Poles combined can easily be adjusted by turning the knob at the top of the post - Once the knob has been tightened, the Tele-Pole becomes a rigid support for connecting devices or cradles
  • Double swing arm with each section measuring 6” long. Overall length: 12" - The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
  • 2.5" round AMPS base with 1.5” ball – Connects mount to laptop base

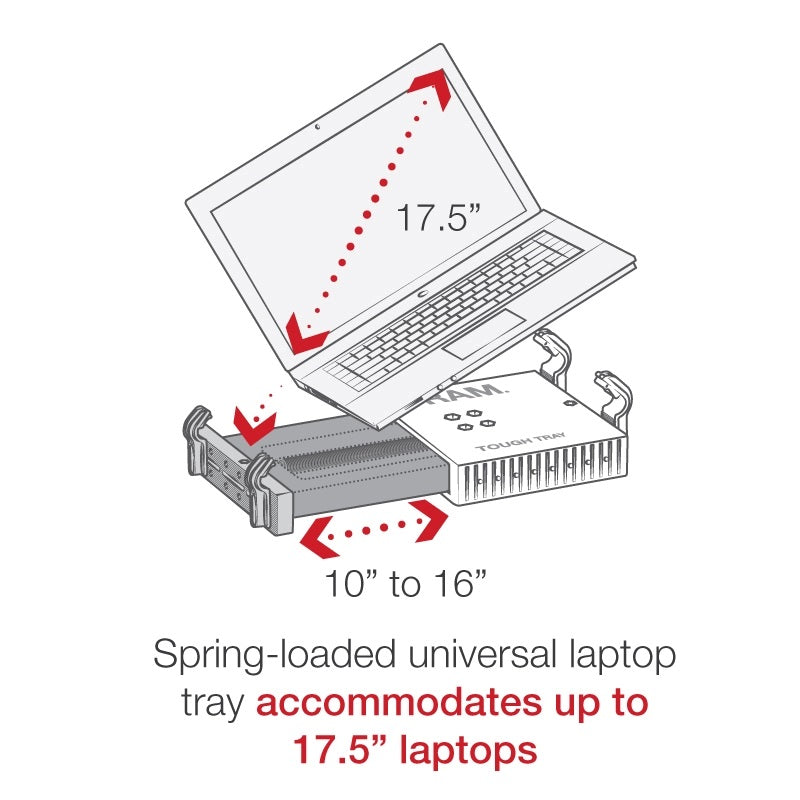

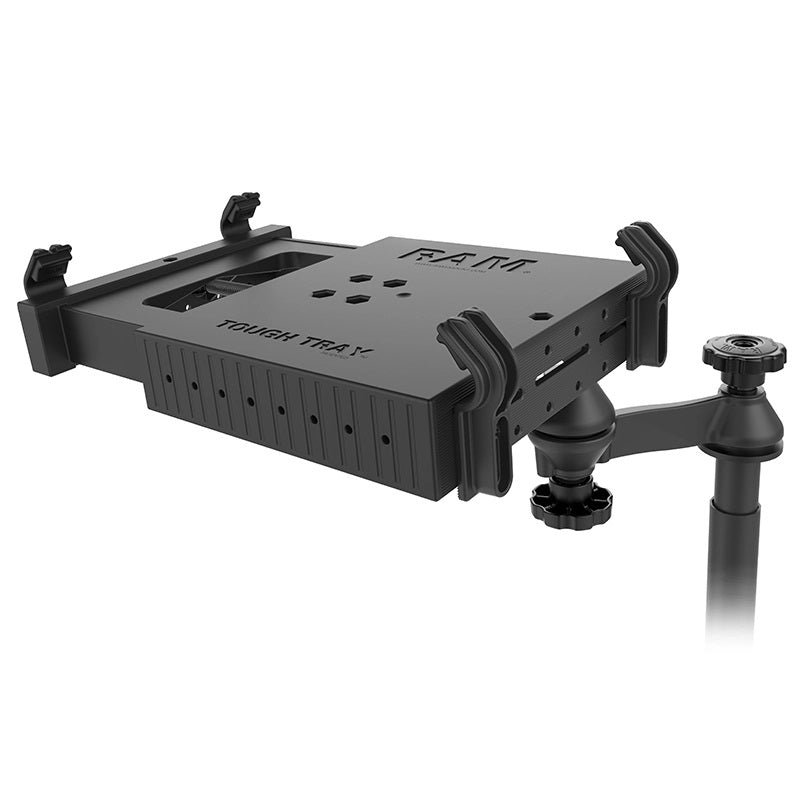

  • Spring loaded expandable laptop tray fits 10 to 16 inch wide laptops and 17 inch screens
  • Includes 4 side clamping fingers with rubber inserts to protect the laptop and adjust vertically and horizontally for varying thicknesses of laptops and to keep ports and drives free
  • Side hole patterns allows additional RAM systems to be attached to the Tough-Tray for mounting your smartphone, GPS, other electronics, etc.
  • Constructed of powder coated steel, marine grade-aluminum and high strength composite
  • Weight: 15 lbs.
  • Made in the USA

Included Hardware

  • (2) M10-1.5 x 70mm Hex Bolts
  • (2) 1.68" Stand-Offs
  • (2) 3/8" Fender Washers

Tray Dimensions:

  • Width Range: 10" - 16"
  • Side Arm Clamp Height: .5" - 1.75"
  • Tray Depth: 10"
  • Tray Thickness: 2.125"

Compatible Vehicles:

  • RAM 1500 (2019-2022)*


* This mount is not compatible with any RAM "Classic" trucks. For the Classic vehicles, please see part number RAM-VB-178A-SW1

Brand: RAM Mounts
Part number: RAM-VB-186ST1-SW1
Warranty: Manufacturer's lifetime warranty
