Description
Features:

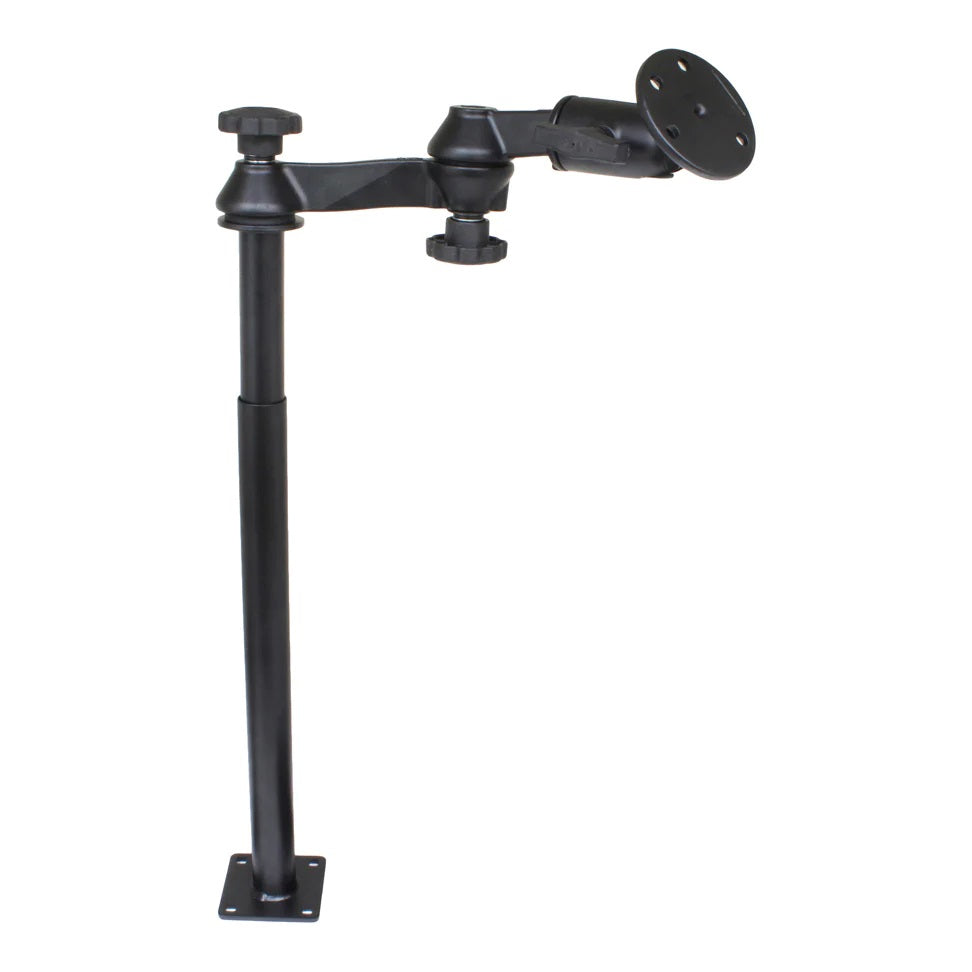

- Lower female Tele-Pole with a 3.5" x 3.5" square plate base - Female post is 18" tall with a 1.375" diameter
- 12" long upper male Tele-Pole with a diameter of 1.328" -
- Tightening knob has a swing arm connection point - Loosen the knob to adjust the swing arm and the height of the Tele-Pole, tighten to lock each into place
- Double swing arm with each section measuring 6” long – Overall length: 12"
- The rotating swivel arm gives you even more viewing positions for your mounted electronic device while holding everything firmly in place
- 3.68" diameter round base: .33" thick with 1.5" ball - 4 Pre-drilled .356" diameter holes including a three hole pattern at 120 degrees* and 2 hole pattern at a distance of 2.75" center to center
- Constructed of powder coated marine grade aluminum and steel
- Made in the USA
* Pre-drilled 3-hole 120 degree pattern connects to RAM Tough-Dock Powered Docking Stations.
Included Hardware:
- Assembly Hardware
- (4) 5/16"-18 x 1" Carriage Bolts
- (4) 5/16"-18 Hex Nuts
- (4) 5/16" Flat Washers
- (4) 5/16" Split Lock Washers
- (4) Rubber Caps
Height Adjustability:
- Minimum Height: 22.3"
- Maximum Height: 34.3"
Brand: RAM Mounts
Part number: RAM-VP-SW1-1218-240
Warranty: Manufacturer's lifetime warranty
