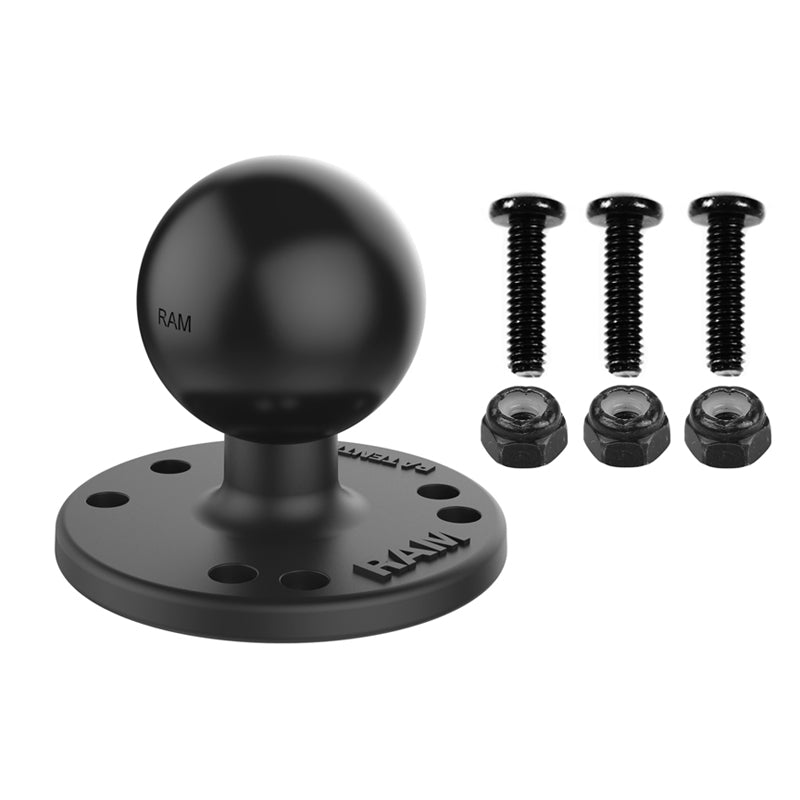

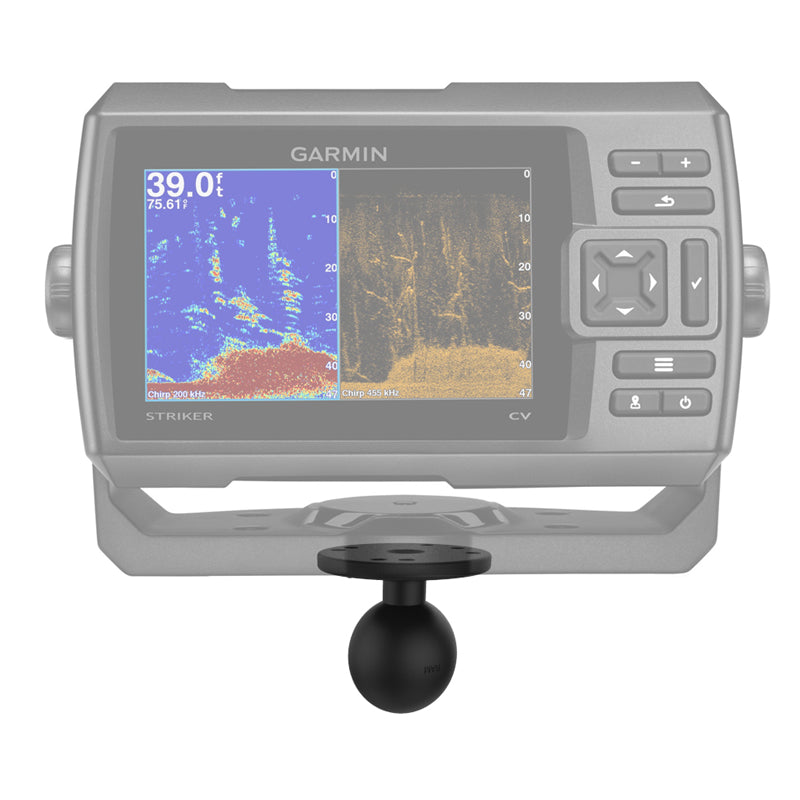

The RAM® Garmin Fishfinder Adapter combines a C Size 1.5" Ball with a flat 2.5" round mounting plate. Its predrilled hole patterns and included #8-32 hardware allow the plate to attach to the bottom of compatible Garmin echo™ fishfinders.
The integrated ball connects to compatible RAM C Size double socket arms, providing adjustable positioning for the attached marine electronics.
Key Features
-
RAM C Size 1.5" ball connection
-
Flat 2.5" diameter round plate
-
Designed to attach to compatible Garmin echo™ fishfinders
-
Includes #8-32 machine screws and Nylock nuts
-
Four-hole AMPS pattern measuring 1.181" x 1.496"
-
Three-hole 120-degree pattern on a 1.812" diameter
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This fishfinder adapter is designed to connect compatible Garmin echo™ units to a RAM C Size mounting system. It is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Plate Dimensions: 2.5" diameter
Hole Pattern: Four-hole AMPS: 1.181" x 1.496"
Secondary Hole Pattern: Three-hole, 120-degree: 1.812" diameter
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.26 lb
What’s Included
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202-G4U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
