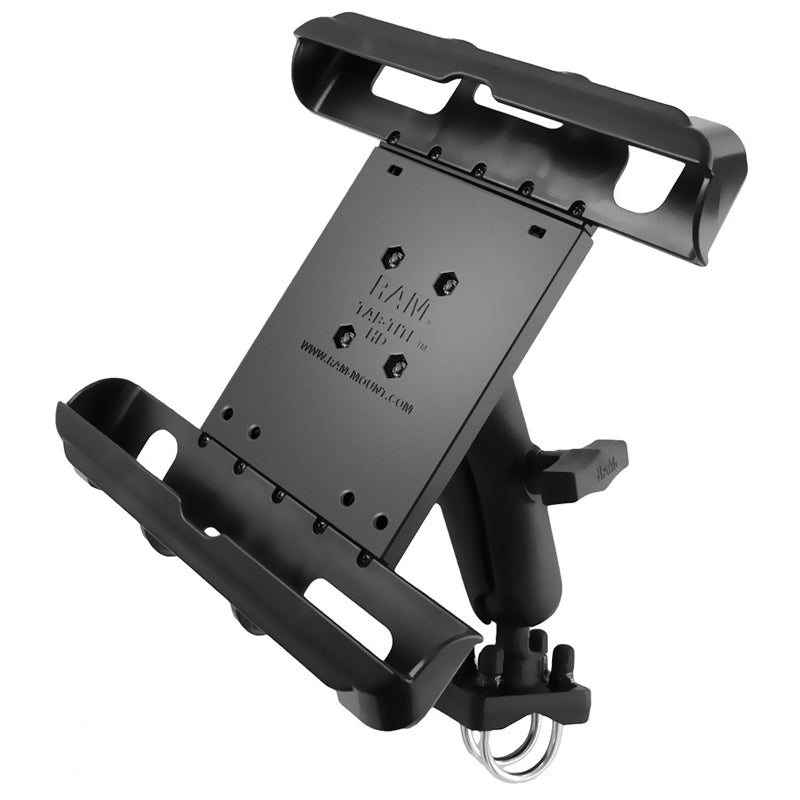

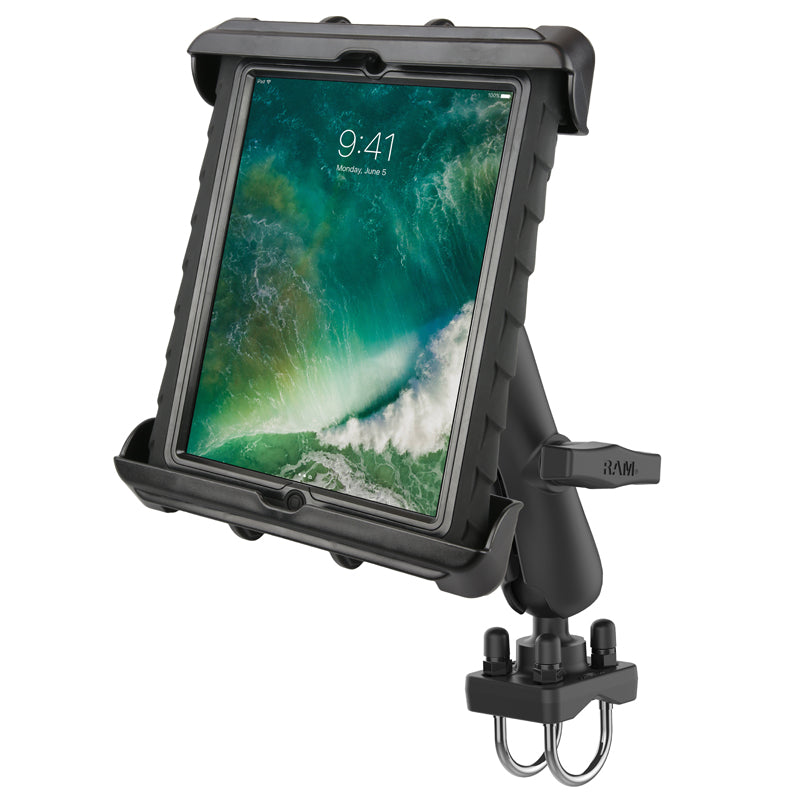

Secure your tablet with confidence in demanding environments using the RAM® Tab-Tite™ Large Tablet Holder with Double U-Bolt Mount. Designed for reliability on motorcycles, ATVs, forklifts, boats, and industrial vehicles, this rugged mounting system features RAM’s trusted C-size 1.5” ball and socket system for maximum stability and adjustability.
The spring-loaded Tab-Tite™ cradle makes it easy to load and remove your tablet while keeping it firmly in place—even when paired with heavy-duty protective cases. With full access to ports and controls, this mount is ideal for navigation, fleet management, POS systems, and mobile workflows.
Manufactured in the USA from marine-grade aluminum and high-strength composites, this RAM Mounts solution is built to perform wherever the job or road takes you.
Key Features
-
Heavy-duty double U-bolt rail mount for superior holding strength
-
Fits round rails from 0.75” to 1.25” diameter
-
Spring-loaded Tab-Tite™ cradle for quick tablet loading and removal
-
Compatible with 10” class tablets, including iPad Gen 1–4 with cases
-
Maintains full access to charging ports, audio jacks, and buttons
-
C-Size (1.5”) RAM ball and socket system for vibration resistance
-
Easily adjustable viewing angles in portrait or landscape
-
Supports 4 lbs (standard use) or 3 lbs (heavy-duty use)
-
Built from marine-grade aluminum & high-strength composite
-
Backed by a manufacturer’s lifetime warranty
Tablet Compatibility & Fit Guide
This holder fits tablets (including cases) within the following dimensions:
-
Height: 9.5” – 11.75”
-
Width: 6.375” – 8.25”
-
Depth: 0.13” – 1.1”
Note: Protective cases increase tablet size—always measure your device with the case installed before ordering.
Mounting System Specifications
-
Ball Size: C Size (1.5”)
-
Arm Type: Standard Length Double Socket Arm
-
Overall Arm Length: 5.69”
-
Socket-to-Socket Length: 4.66”
-
Clamp Range: 1” – 1.25” diameter
-
Weight Capacity:
-
Standard Use: 4 lbs
-
Heavy-Duty Use: 3 lbs
Materials & Build
-
Marine-grade aluminum
-
High-strength composite
Product Weight: 1.58 lbs
What’s Included
-
Tab-Tite™ Large Tablet Cradle
-
Double U-Bolt Base with 1.5” Ball
-
Standard Length Double Socket Arm
-
2.5" round AMPS base with 1.5" ball
-
(2) 1/4"-20 U-Bolts for 1"–1.25" rails
-
(4) 1/4"-20 Nylock Nuts
-
(4) Rubber Caps
-
Assembly hardware
Ideal Applications
-
Motorcycle & powersports tablet mounting
-
Fleet vehicles & logistics operations
-
Forklifts & warehouse equipment
-
Marine & off-road navigation systems
-
Industrial, construction, and field service use
Brand and Warranty
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by full manufacturer support.
