Secure your marine electronics with confidence using this heavy-duty universal mounting solution from RAM Mounts. Designed for boats, off-road vehicles, and harsh outdoor environments, this mount combines marine-grade aluminum construction with vibration-damping rubber balls for maximum durability and device protection.
Built around a versatile universal mounting system, this mount supports marine GPS units, CB radios, ham radios, gimbal brackets, and other electronics requiring a secure and adjustable mounting platform. The long double socket arm provides extended reach and superior articulation, allowing precise viewing angles even in tight cockpit or helm layouts.
Ideal for professional marine installers, commercial fleets, and serious recreational users who need reliable electronics mounting in demanding conditions.
If purchasing from Gadget Mounts, you are buying from an Authorized RAM Mounts Dealer.

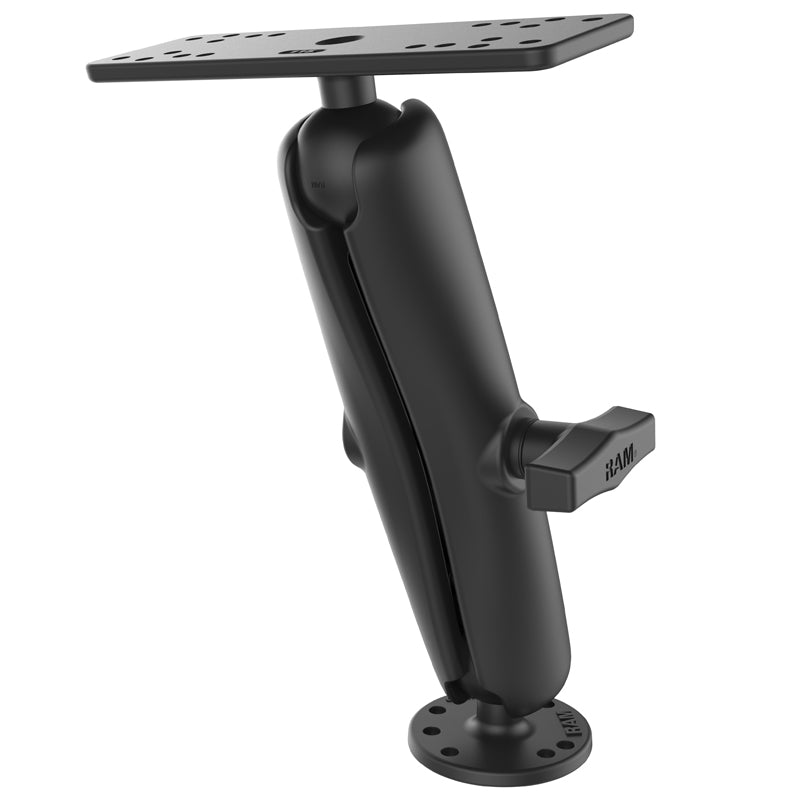

What’s Included
• (1) 2.5" Round Base with AMPS Hole Pattern and C Size Ball
• (1) Long Double Socket Arm (C Size)
• (1) 6.25" x 2" Universal Rectangle Base with C Size Ball
Features
• Universal marine electronics mounting solution
• C Size 1.5" rubber ball for vibration damping and secure hold
• Long double socket arm for extended reach and adjustability
• Universal rectangle plate supports multiple electronics hole patterns
• Marine-grade powder-coated aluminum construction
• Corrosion resistant for saltwater environments
• Made in the USA
• Backed by RAM Mounts lifetime warranty
Specifications
Ball Size: C Size (1.5")
Overall Length (Fully Extended): 10.85"
Socket-to-Socket Arm Length: 8"
Arm Overall Length: 9.125"
Bottom Plate Hole Pattern:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120 Degree: 1.812" Diameter

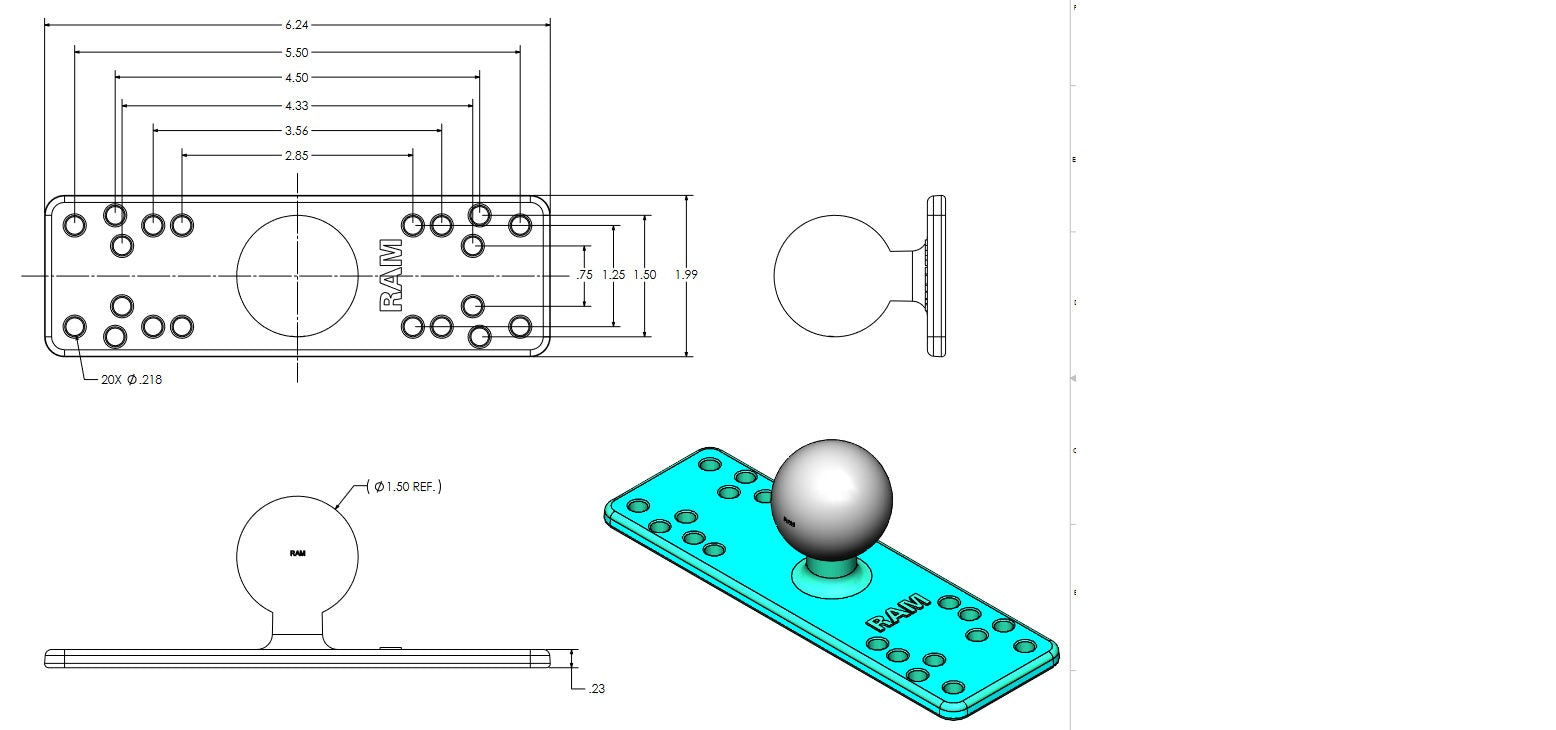

Top Plate Size: 6.25" x 2"
Bottom Plate Diameter: 2.5"
Weight Capacity:
• Standard Use: 4 lbs
• Heavy Duty Use: 3 lbs
Materials: Marine-Grade Powder-Coated Aluminum
Product Weight: 2.3 lbs
Hardware: Drill-down hardware not included. Typical hardware sizes include #8, #10, M4, and M5 (varies by surface).
Additional Note: Universal top plate may require additional drilling depending on device mounting pattern.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-111U-D
Warranty: Manufacturer Lifetime Warranty
