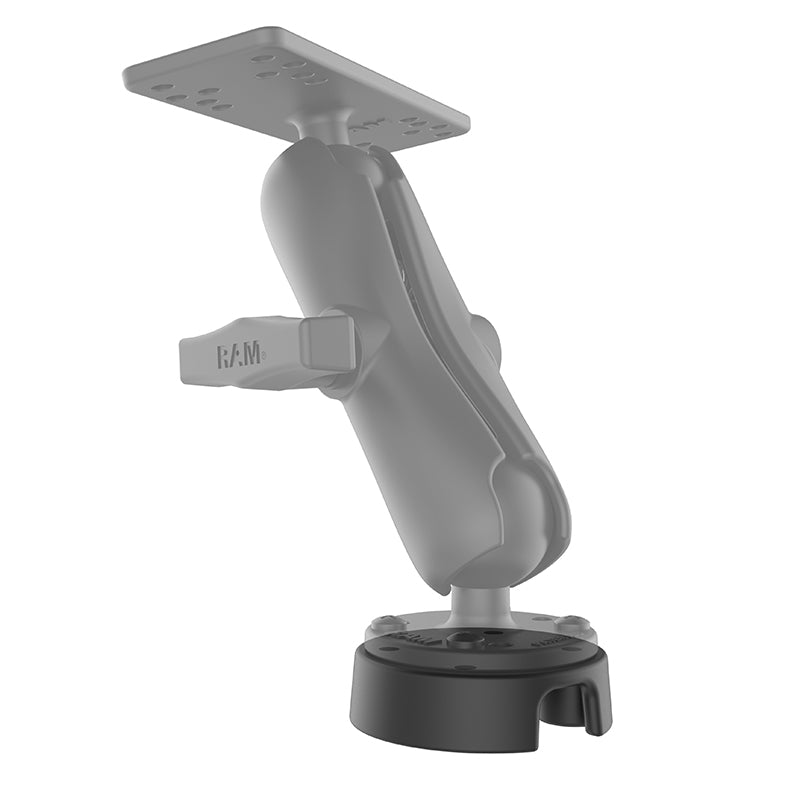

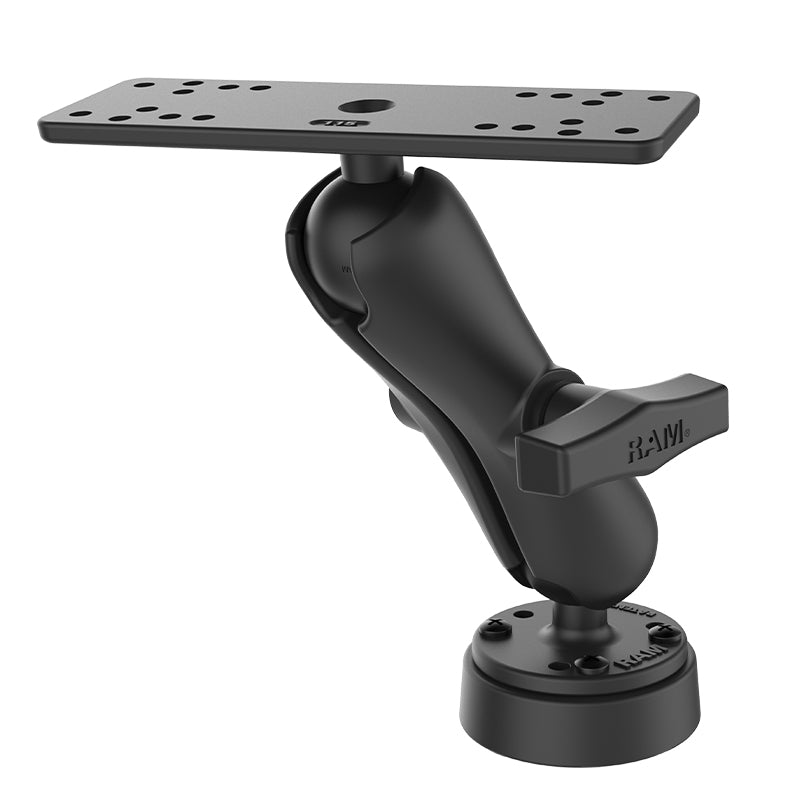

The RAM® Drill-Down Marine Electronics Mount with Cable Manager provides a rugged, vibration-resistant mounting solution for marine electronics including fishfinders, chartplotters, marine GPS units, radios, and gimbal-mounted devices. Built using marine-grade aluminum and high-strength composite materials, this system is designed to perform in harsh marine environments.
This complete mount assembly includes a C size 1.5" rubber ball round base with AMPS hole pattern, medium length double socket arm, rectangular device base, and integrated RAM Cable Manager for clean cable routing and protection of mounting surfaces.
Gadget Mounts is an Authorized RAM Mounts Dealer.
Features
• Integrated RAM Cable Manager for clean cable routing and reduced vibration
• 2.5" round base with industry standard AMPS hole pattern
• Medium length double socket arm for flexible positioning
• 6.25" x 2" rectangular universal device mounting plate
• Compatible with many marine electronics including fishfinders and chartplotters
• Marine-grade aluminum and high-strength composite construction
• Designed to minimize fiberglass and gel-coat surface damage
• Made in the USA
What’s Included
• Medium C Size Double Socket Arm
• 2.5" Round Base with 1.5" C Ball
• 6.25" x 2" Rectangular Base with 1.5" C Ball
• RAM Cable Manager
• Mounting Hardware Kit
Hardware Included:
• (4) #10-24 x 2" Machine Screws
• (4) #10-24 Nylock Nuts
• (4) #10 Fender Washers
Specifications
Ball Size: C Size (1.5")
Overall Mount Height (Fully Straight): 7.95"
Socket to Socket Length: 4.66"
Cable Slot Height: 0.56"
Cable Slot Width: 0.70"
Maximum Mounting Surface Thickness: 0.68"
Bottom Plate Hole Patterns:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120 Degree Pattern: 1.812" Diameter
Top Plate Size: 6.25" x 2"
Bottom Plate Diameter: 2.5"
Weight Capacity:
• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs
Materials: Marine-Grade Aluminum, High Strength Composite
Product Weight: 1.58 lbs
Compatibility Notes
The rectangular device plate is a universal mounting bracket with multiple hole locations. Some devices may require additional drilling for proper fit depending on manufacturer mounting patterns.
Installation Notes

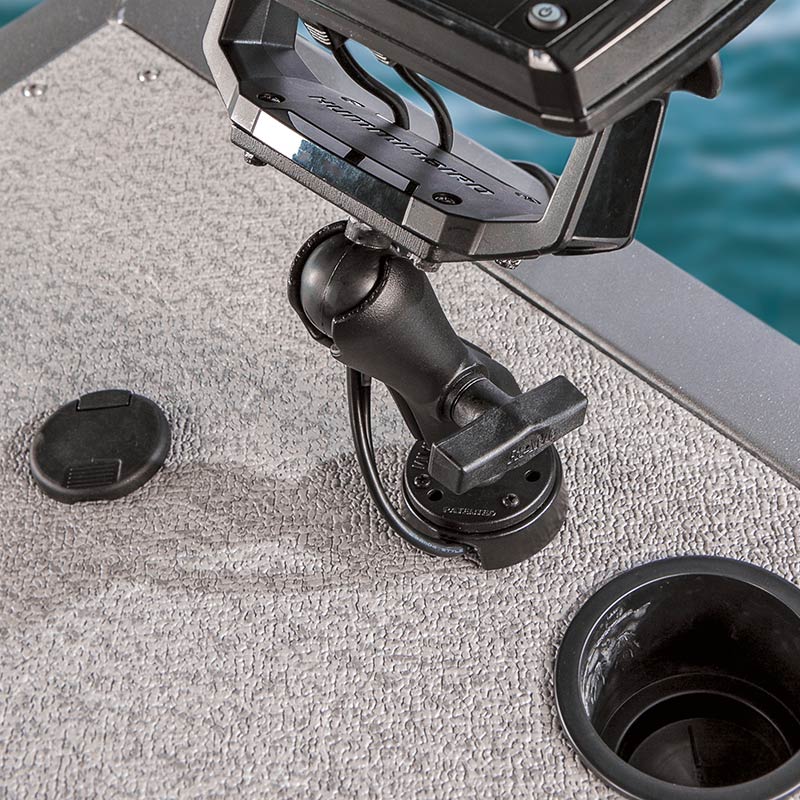

Drill-down installation required. Cable manager helps protect mounting surfaces while providing clean cable routing through mounting location.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-111-403U
Warranty: Manufacturer Lifetime Warranty
