Description

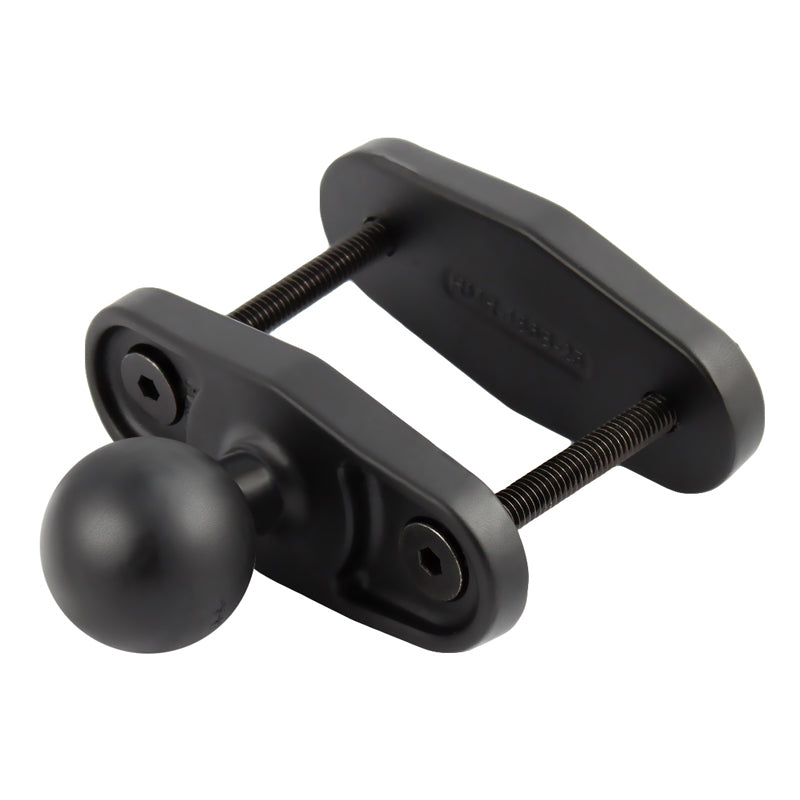

The RAM Square Post Clamp Base with C Size 1.5" Ball provides a secure mounting point on square posts measuring up to 2.5" wide. Its two-piece clamp design installs around the post using the included machine screws and Nylock nuts, eliminating the need to drill into the mounting surface.
The integrated RAM® C Size 1.5" rubber ball connects to a compatible RAM C Size double socket arm, making this base suitable for building adjustable mounting systems for tablets, displays, scanners, cameras, and other supported equipment.
Key Features
-
Clamps securely around square posts measuring up to 2.5" wide
-
Integrated RAM® C Size 1.5" rubber ball connects to compatible C Size double socket arms
-
Ball-and-socket connection provides extensive positioning and viewing-angle adjustment
-
Marine-grade aluminum construction provides strength and durability
-
Installs without drilling into the post
-
Includes two 3" machine screws and matching Nylock nuts
-
Weight capacity: 4 lbs under standard use or 3 lbs under heavy-duty use
Use Cases & Compatibility
This clamp base is designed for square posts and rails with a maximum width of 2.5". It can be used on warehouse equipment, industrial machinery, workstations, carts, material-handling equipment, vehicle structures, and other compatible square-post mounting locations.
The integrated C Size 1.5" ball accepts a compatible RAM® C Size double socket arm. A separate arm, device holder, and any additional adapters required for the application are sold separately.
Before installation, confirm that the post dimensions and surrounding clearance accommodate the clamp base and included 3" hardware.
Specifications
Ball Size: C Size (1.5")
Clamp Range: Square posts up to 2.5" wide
Material: Marine-grade aluminum
Color: Black
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Included Hardware: (2) 5/16"-18 x 3" machine screws and (2) 5/16"-18 Nylock nuts
Product Weight: 0.7 lb
Additional Details: Two-piece clamp base installs around a compatible square post without requiring drilling
What’s Included
-
RAM square post clamp base with C Size 1.5" rubber ball
-
Two 5/16"-18 x 3" machine screws
-
Two 5/16"-18 Nylock nuts
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-247U-25
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
