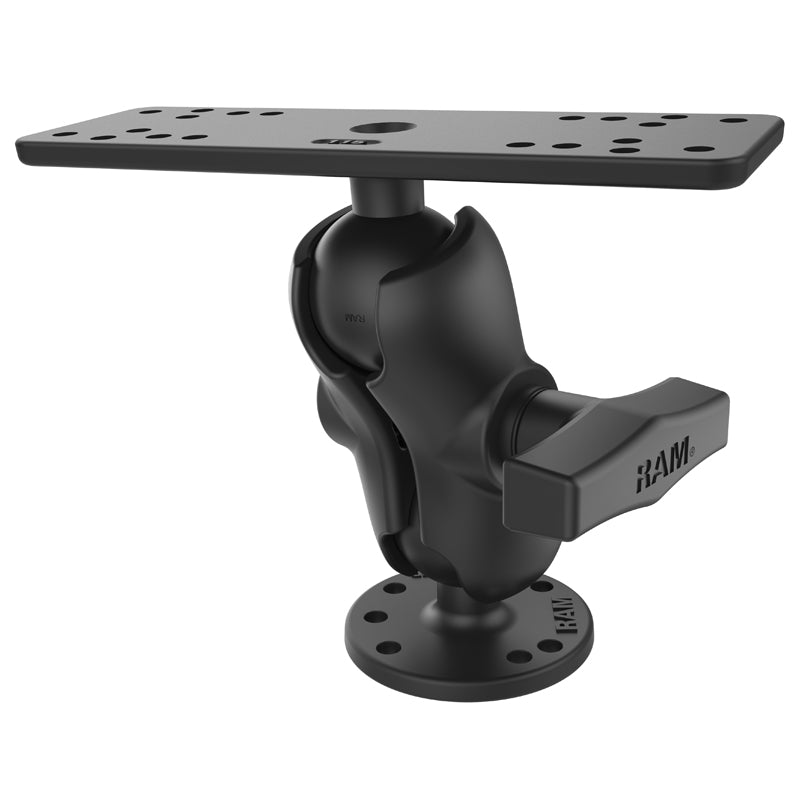

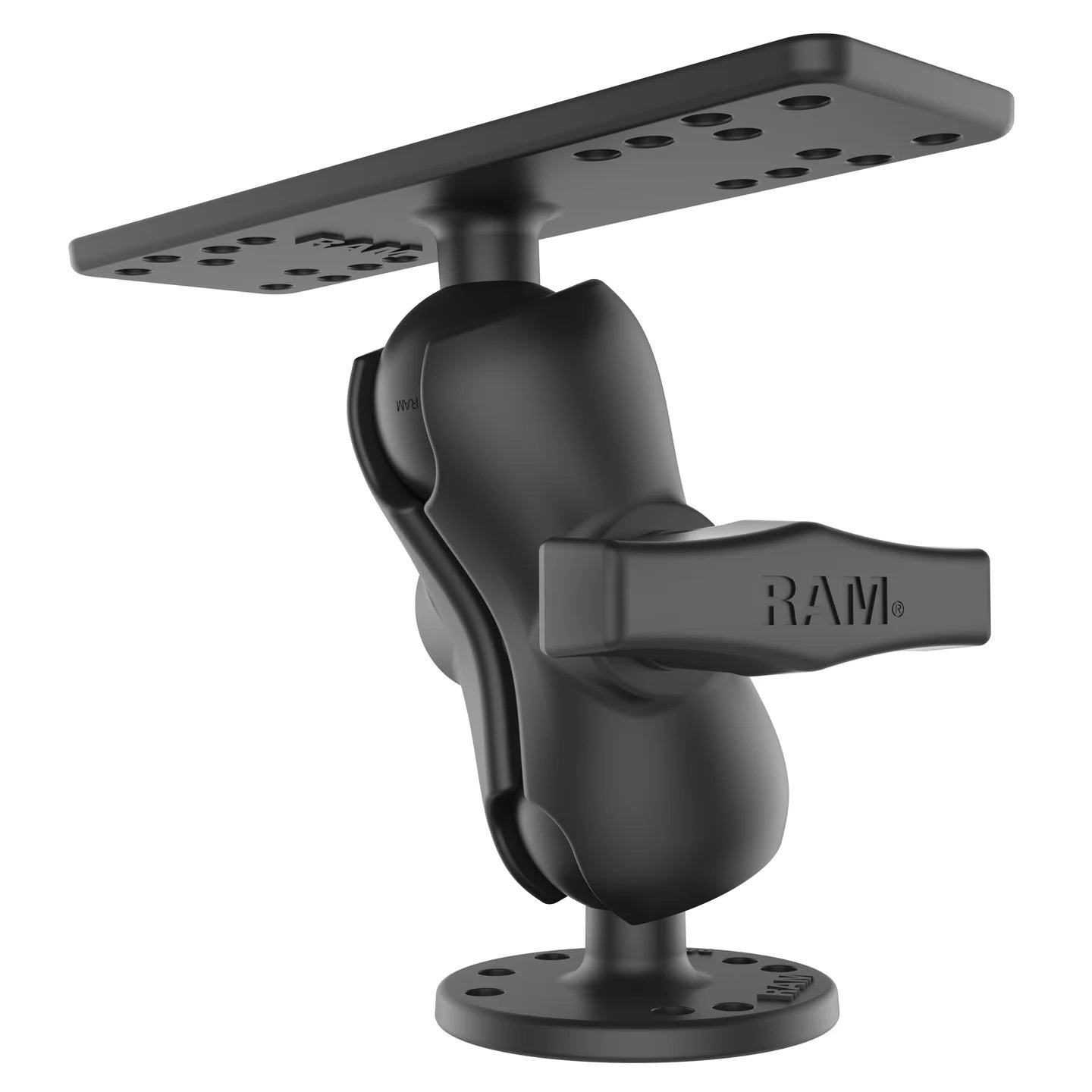

The RAM-111U-B Universal Marine Electronics Mount delivers a rugged, vibration-resistant mounting solution built for marine environments. This complete mounting kit includes a 2.5" round base, short double socket arm, and universal 6.25" x 2" rectangular base, all connected through the proven 1.5" C size RAM rubber ball system.
The universal rectangular mounting plate supports a wide range of marine electronics including fishfinders, chartplotters, marine GPS units, CB radios, ham radios, and gimbal-mounted devices. Marine-grade aluminum construction with powder-coated finish provides excellent corrosion resistance for saltwater and harsh outdoor conditions.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine RAM products backed by full manufacturer warranty support.
Features
• Complete marine electronics mounting system with dual C size ball connections
• Short double socket arm ideal for compact installations
• 2.5" round base with universal AMPS hole pattern
• 6.25" x 2" universal rectangular electronics mounting plate
• Powder-coated marine-grade aluminum construction

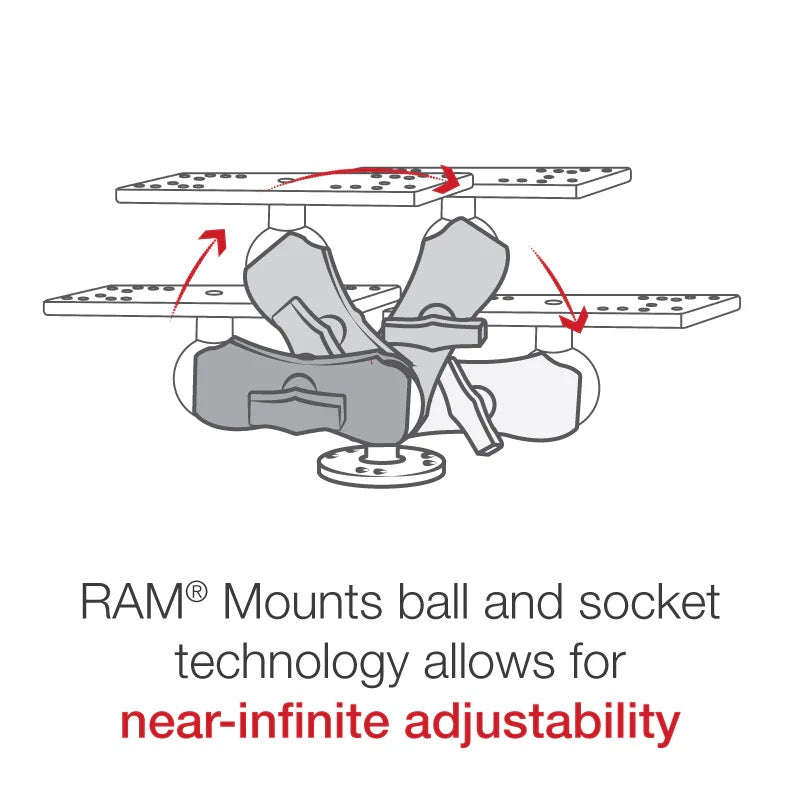

• Vibration and shock dampening rubber ball technology
• Made in the USA
Specifications

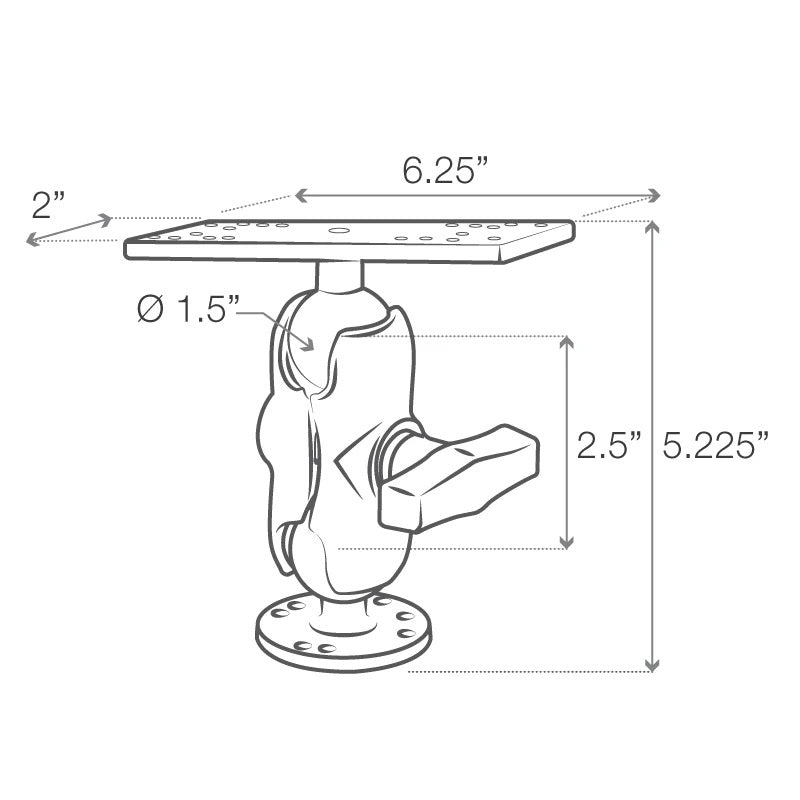

Overall Mount Length (Straight): 5.225"
Socket-to-Socket Arm Length: 2.5"
Arm Overall Length: 3.56"
Bottom Plate Size: 2.5" Diameter
Top Plate Size: 6.25" x 2"
Bottom Plate Hole Patterns:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120 Degree: 1.812" Diameter

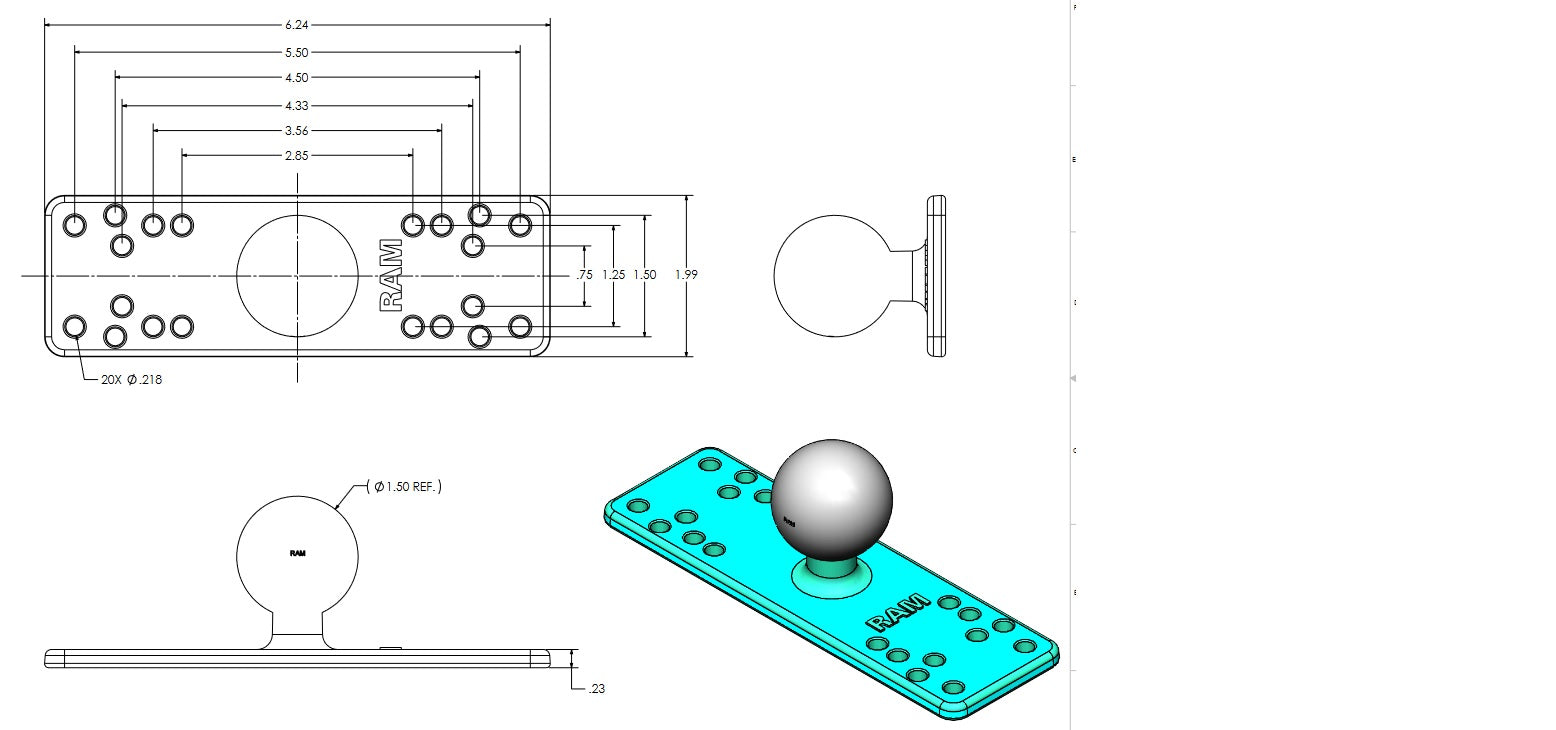

Top Plate Hole Pattern: See diagram
Ball Size: C Size (1.5")
Weight Capacity:
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
Materials: Marine-grade aluminum
Product Weight: 1.08 lbs
Compatibility
Compatible with many marine electronic devices and mounting brackets including fishfinders, chartplotters, marine GPS units, CB radios, ham radios, gimbal brackets, and other universal marine electronics.
Note: The included universal plate supports multiple mounting hole locations. Some applications may require additional drilling for proper device fit.
Installation Notes
Drill-down mounting hardware not included. Common hardware sizes include #8, #10, M4, and M5 screws depending on mounting surface.
What's Included
2.5" Round Base with C Size Ball
Short Double Socket Arm
6.25" x 2" Universal Rectangle Plate with C Size Ball
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-111U-B
Warranty: Manufacturer's Lifetime Warranty
