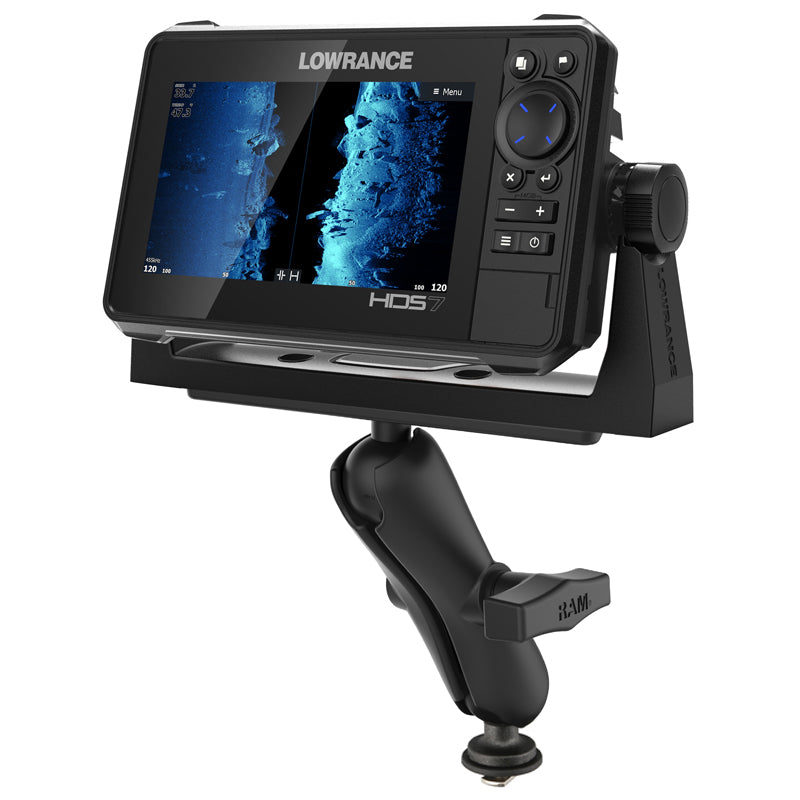

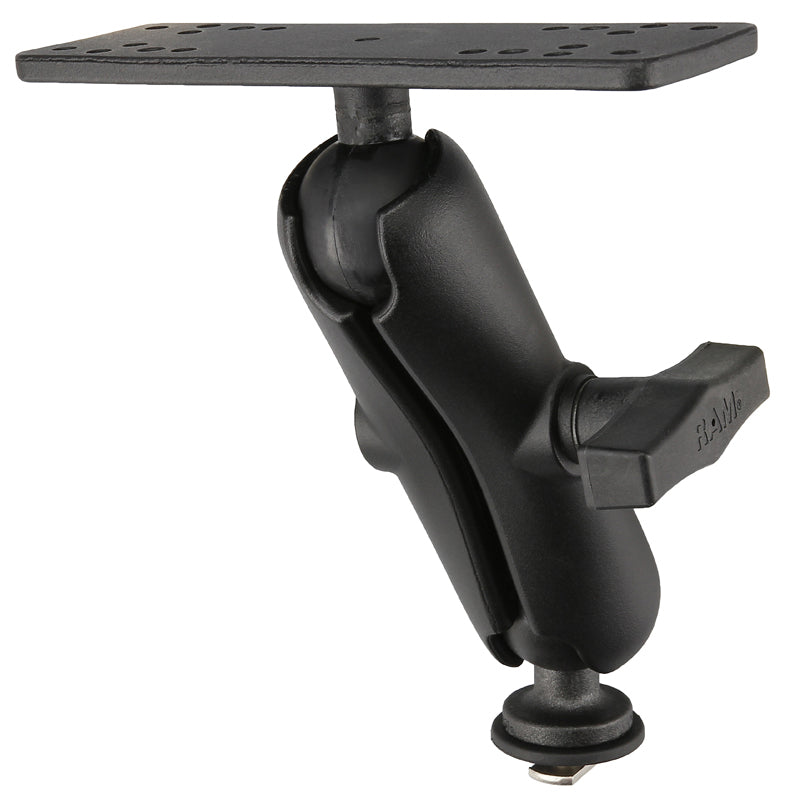

The RAM-111B-354-TRA1U Track Ball™ Mount provides a rugged, adjustable mounting solution for marine electronics using track mounting systems such as RAM Tough-Track™. This kit combines the Track Ball base, medium-length double socket arm, and universal 6.25" x 2" rectangular plate to support fishfinders, chartplotters, and other marine electronic devices.
Designed for marine environments, this mount uses marine-grade aluminum and high-strength composite materials for corrosion resistance and long-term durability. The Track Ball T-bolt design allows fast installation and easy adjustment directly within compatible track systems.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by manufacturer warranty support.
Features
• Track Ball™ base with 1.5" rubber ball bonded to high-strength composite base
• Includes rubber friction washer and stainless steel T-bolt
• Quick install — insert into track and twist clockwise to lock
• Fits many track systems including RAM Tough-Track™
• T-bolt dimensions: .48" x .95" (fits a wide variety of tracks)
• Standard length double socket arm for strong positioning control
• Universal rectangular plate supports many marine electronics and radio mounts
• Marine-grade aluminum and high-strength composite construction
• Powder-coated finish for corrosion resistance
• Ideal for select 4" to 7" fishfinders and chartplotters
• Made in the USA
Included Hardware
• (1) Friction Washer
• (1) 1/4"-20 x 7/8" T-Bolt
Specifications
Overall Mount Height (Fully Straight): 7.5"
Socket To Socket Length: 4.66"

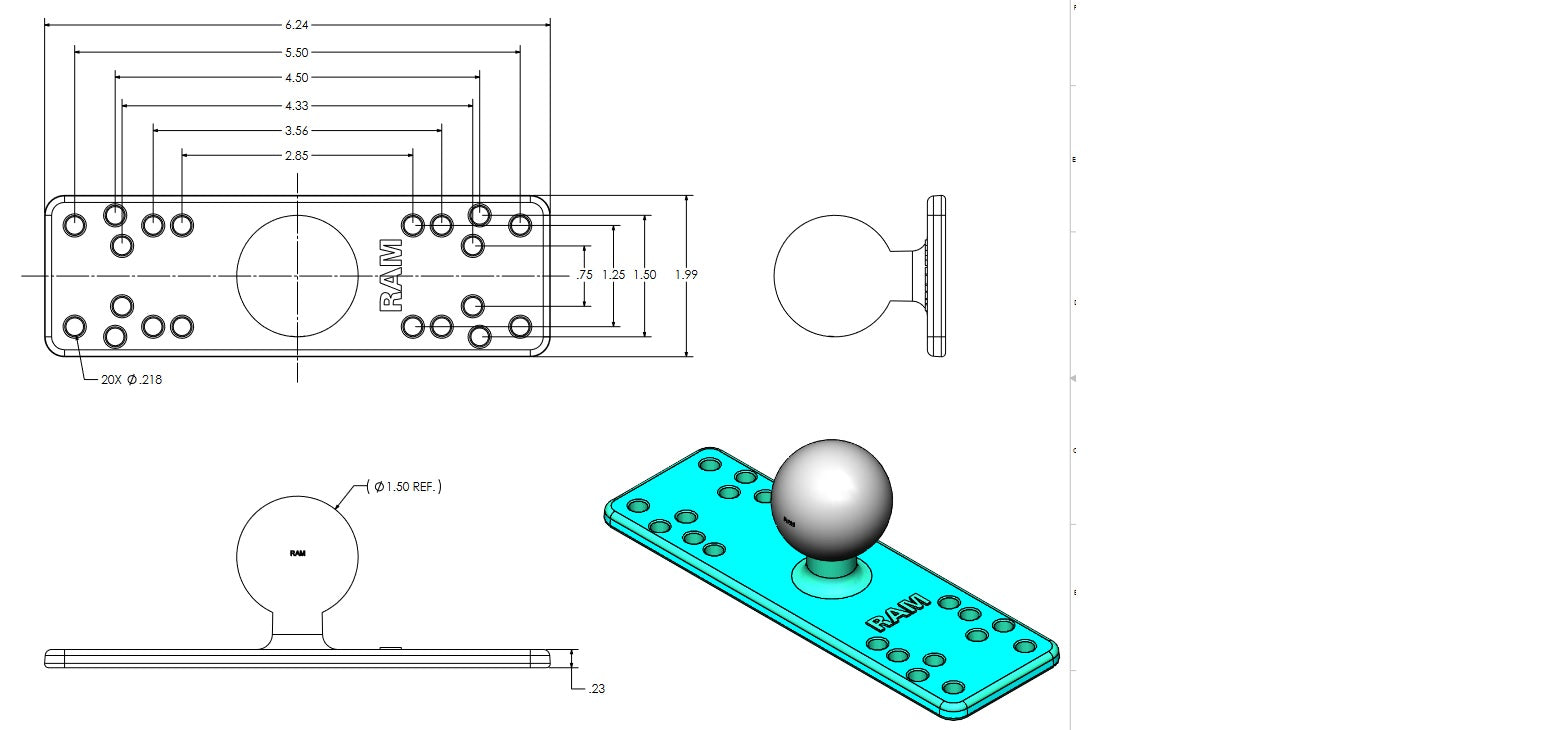

Hole Pattern: See manufacturer drawing
Plate Size: Rectangular Plate 6.25" x 2"
Ball Size: C Size (1.5")
Weight Capacity
- Standard Use: 4 lbs
- Heavy-Duty Use: 3 lbs
Materials: Marine-grade aluminum, High-strength composite
Product Weight: 1.2 lbs
Additional Information
This rectangular plate is a universal mounting bracket with multiple hole patterns designed to support a wide range of marine electronics and mounts. Some installations may require drilling additional holes to properly fit specific devices.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-111B-354-TRA1U
Warranty: Manufacturer Lifetime Warranty
