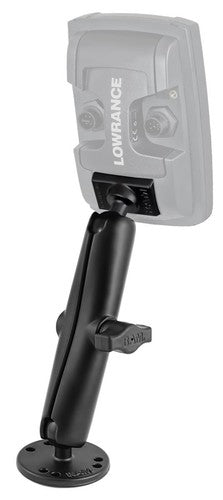

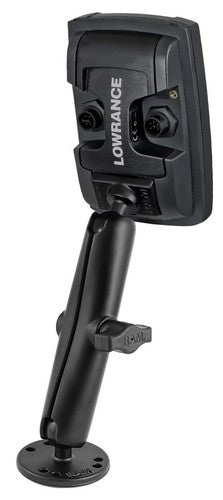

Mount your Lowrance Elite-4 or Mark-4 fish finder with confidence using the RAM® Double Ball Mount with Quick Release Adapter. Built around RAM’s patented 1" B size ball and socket system, this mount delivers rock-solid stability on the water while allowing nearly infinite adjustability for the perfect viewing angle.
The included adapter base inserts directly into the back of compatible Lowrance units, creating a secure quick-release solution that lets you remove or transfer your fish finder in seconds. Constructed from powder-coated, marine-grade aluminum, this mount is engineered to handle harsh marine environments and demanding use.
As an Authorized RAM Mounts Dealer, Gadget Mounts provides genuine RAM components backed by a manufacturer’s lifetime warranty.
Features
• 2.5" round base with universal AMPS hole pattern
• Long double socket arm with dual adjustment points
• Quick release adapter designed for select Lowrance fish finders
• RAM patented 1" rubber ball and socket system for vibration damping
• Nearly infinite adjustability for optimal screen visibility
• Marine-grade aluminum with durable powder-coat finish
• Made in the USA
Specifications
Overall Height (fully straight): 7.3125"
Socket-to-Socket Length: 5.31"
Arm Overall Length: 6"
Base Diameter: 2.5"
Ball Size: B Size (1")
Hole Pattern:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" diameter
Weight Capacity:
• Standard Use: 2 lb
• Heavy-Duty Use: 1 lb
Materials: Marine-grade aluminum
Product Weight: 0.82 lb
Note
Not compatible with Lowrance Elite-7.
What’s Included
• 2.5" round base with 1" RAM ball
• Long double socket arm
• Quick release adapter with 1" RAM ball
Mounting hardware not included; hardware selection depends on mounting surface. The most common screw sizes used are #8, #10, M4 and M5 screws.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-B-101-C-LO11
Warranty: Manufacturer’s Lifetime Warranty
