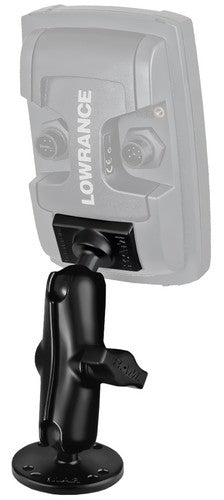

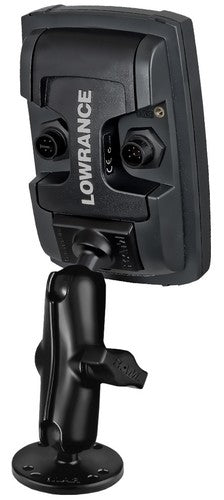

The RAM® Double Ball Mount for Lowrance Elite-4, Mark-4, and Hook-4 fishfinders delivers rock-solid stability with fast, tool-free adjustability on the water. Built around RAM Mounts’ patented 1" B-size ball and socket system, this mount allows near-infinite positioning so you can dial in the perfect viewing angle in seconds—even in rough conditions.
The included adapter inserts directly into the back of compatible Lowrance fishfinders and doubles as a quick release, making it easy to remove or transfer your device between boats. A 2.5" round base with the universal AMPS hole pattern ensures broad mounting compatibility across dashboards, consoles, and flat surfaces.
Constructed from powder-coated, marine-grade aluminum, this mount is engineered to withstand harsh marine environments while maintaining a clean, professional installation.
When you buy from Gadget Mounts, you’re purchasing from an Authorized RAM Mounts Dealer, ensuring genuine products backed by RAM’s legendary lifetime warranty.
Features
• 1" B-size RAM® rubber ball and socket system for smooth, secure adjustment
• Double socket medium arm with adjustment points on both ends
• Quick release adapter designed for Lowrance Elite-4, Mark-4, and Hook-4 fishfinders
• 2.5" round base with universal AMPS hole pattern
• Marine-grade, powder-coated aluminum construction
• Ideal for boats, kayaks, and marine consoles
• Made in the USA
• Backed by RAM Mounts manufacturer lifetime warranty
Specifications
Overall height (fully straight): 5"
Socket-to-socket length: 3"
Arm type: Double socket medium arm
Base diameter: 2.5"
Hole pattern:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-degree: 1.812" diameter
Ball size: B Size (1")
Weight capacity:
• Standard use: 2 lb
• Heavy-duty use: 1 lb
Materials: Marine-grade aluminum
Product weight: 0.58 lb
Compatibility Notes
• Compatible with Lowrance Elite-4, Mark-4, and Hook-4 fishfinders
• Not compatible with Lowrance Elite-7
• Drill-down mounting hardware not included (hardware varies by mounting surface). The most common screw sizes used are #8, #10, M4 and M5 screws.
Brand and Warranty
Brand: RAM Mounts
Part number: RAM-B-101-LO11
Warranty: Manufacturer’s lifetime warranty
