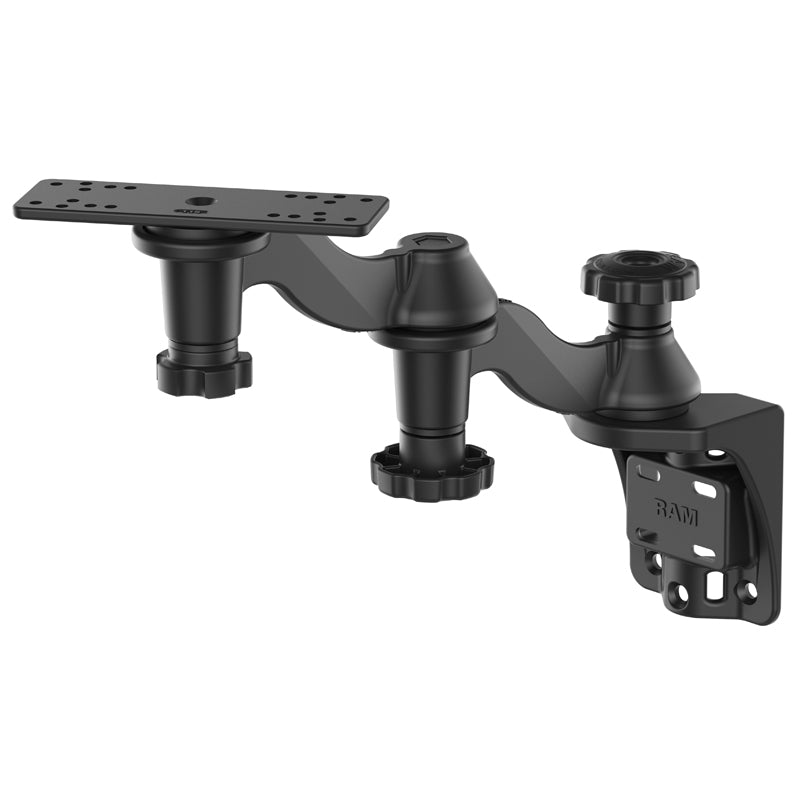

Fish Finder Mount – Dual Swing Arm Vertical Base for Garmin, Lowrance & Humminbird

This fish finder mount is a heavy-duty dual swing arm solution for Garmin, Humminbird, Lowrance, and similar marine electronics. Designed for marine and boating environments, it uses two 6" curved swing arms and a vertical mounting base to provide flexible positioning and easier screen access. The rectangular 6.25" x 2" top plate supports a wide range of electronics and mounting hole patterns, while the pivot points allow full 360° rotation for adjustment. Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.

---

Key Features

• Dual 6" curved swing arms for extended reach and adjustability
• Full 360° rotation at pivot points for flexible positioning
• Universal 6.25" x 2" rectangular top plate with multiple pre-drilled hole options
• Can be mounted to a flat vertical surface or a vertical post/rail
• Constructed from powder-coated marine-grade aluminum
• Supports devices up to 8 lbs

---

Common Applications

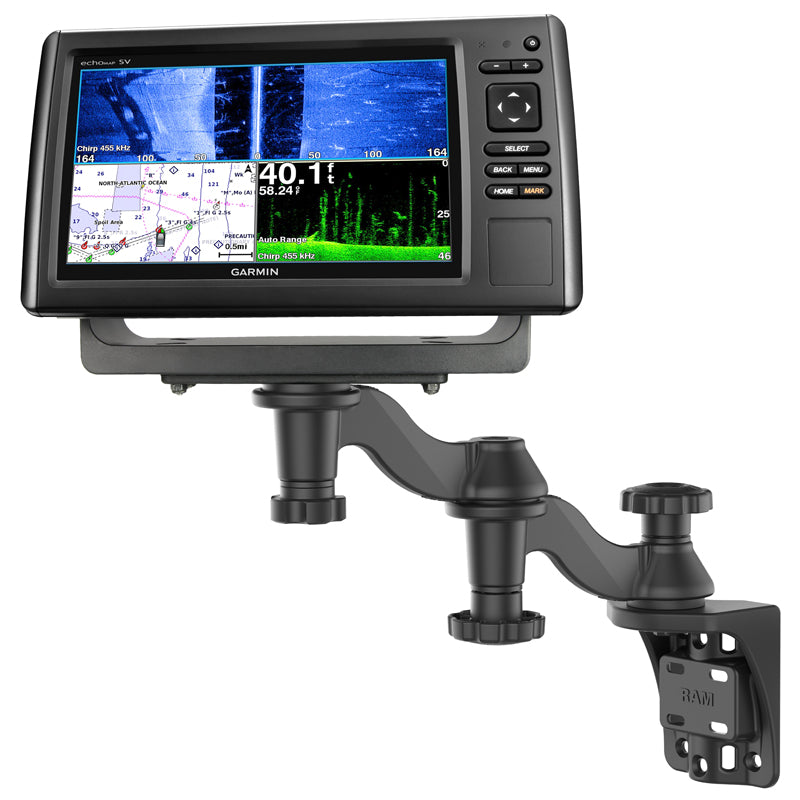

• Mounting fish finders on boat consoles
• Positioning marine electronics on vertical surfaces
• Rail or post mounting in marine environments
• Supporting compatible electronic displays in boats and other specialized environments

---

Specifications

Base Type: Drill-Down / Vertical Surface Mount
Arm Length: Two 6" curved swing arms
Holder Type: Fish Finder Mount
Material: Marine-grade aluminum
Product Weight: 3.9 lbs
Plate Size: 6.25" x 2"

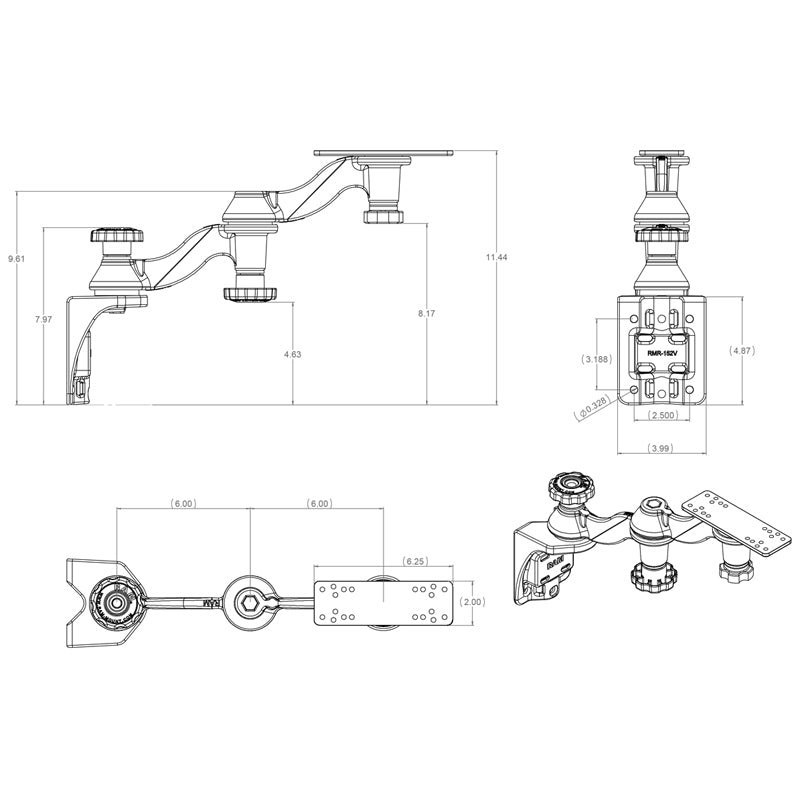

Hole Pattern: See diagram
Additional Dimensions:
• Overall Height: 11.58"
• Total Swing Arm Length: 12"
Weight Capacity: 8 lbs

---

What’s Included

• Vertical surface mounting base
• Two 6" curved swing arms
• Rectangular 6.25" x 2" top plate

---

Notes

• Hardware not included
• V-shaped indent on the back of the base allows mounting to a vertical rail
• In some applications, additional holes may need to be drilled in the plate for proper device fit
• Designed for specialized marine and vertical mounting applications

---

Brand and Warranty

Brand: RAM Mounts
Part Number: RAM-109V-1U
Warranty: Lifetime

---
