Description

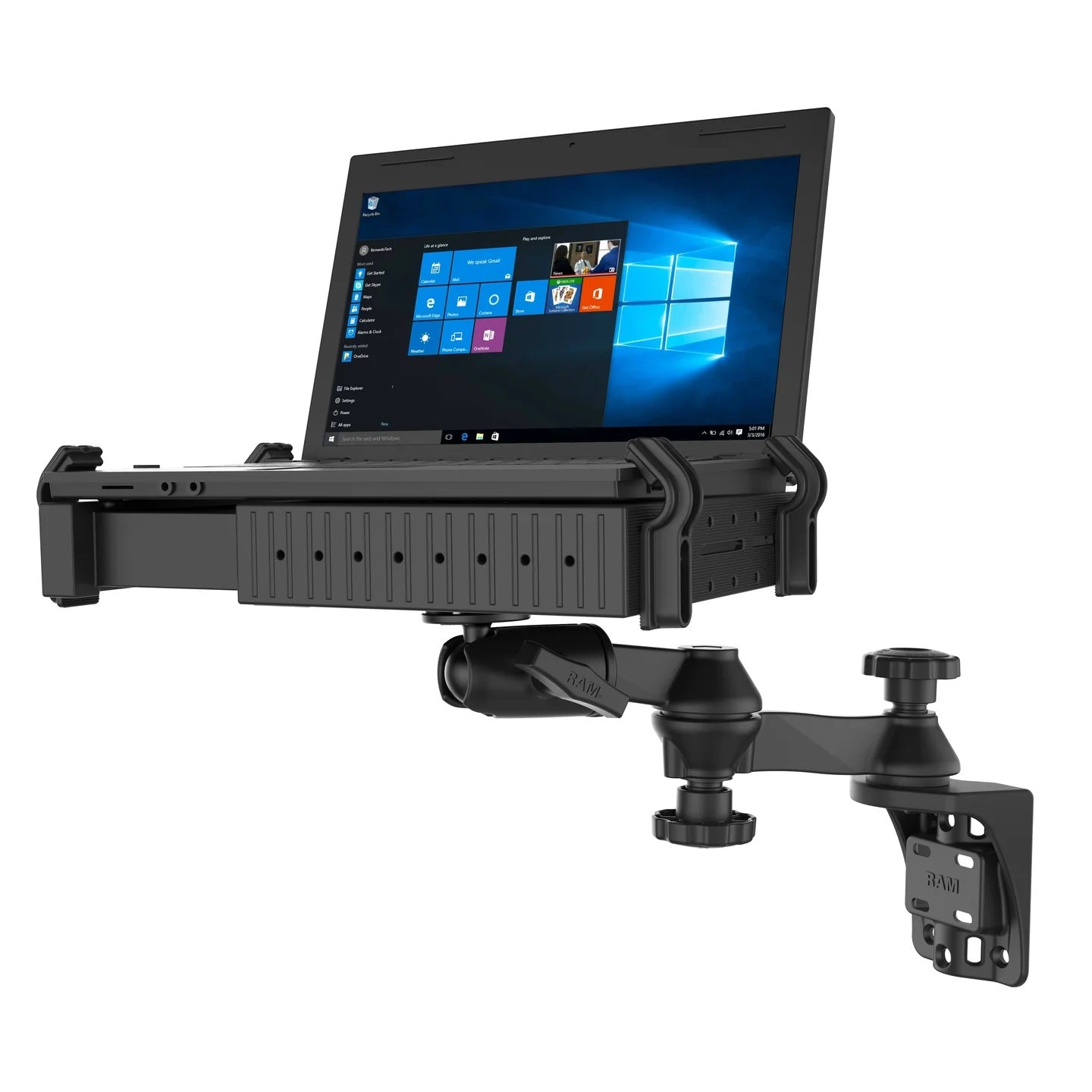

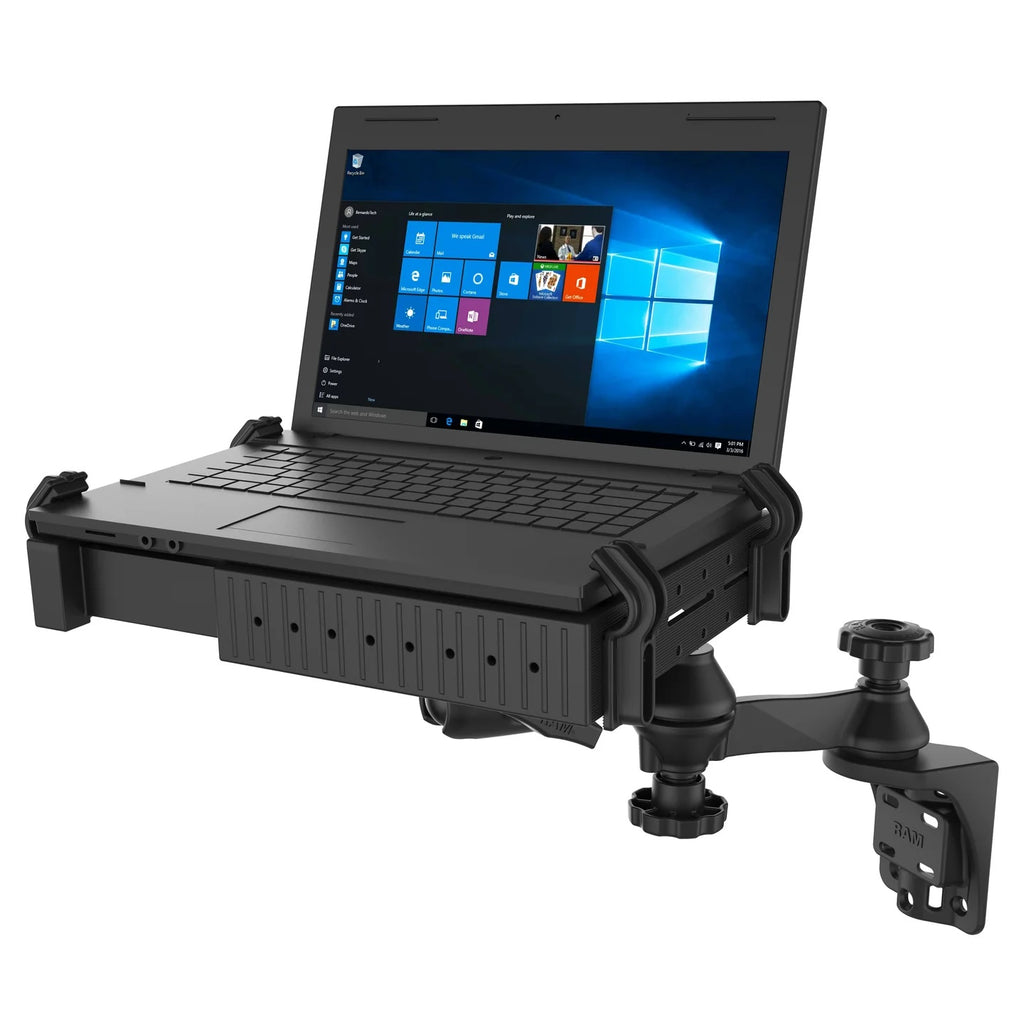

The RAM® Tough-Tray™ Laptop Holder with Vertical Swing Arm Mount is a rugged, adjustable mounting solution designed for secure laptop use in vehicles, industrial workstations, warehouses, and mobile command environments. Featuring dual swing arms and a spring-loaded Tough-Tray, this heavy-duty laptop mount delivers maximum flexibility, stability, and durability for professional applications.
Engineered for vertical surface installations, this mount allows precise positioning while keeping your laptop protected and easily accessible during daily operations.
Key Features
-
Vertical Surface Mounting
4.88" wide drill-down base mounts to flat vertical surfaces; V-shaped casting allows optional mounting to round posts or rails* -

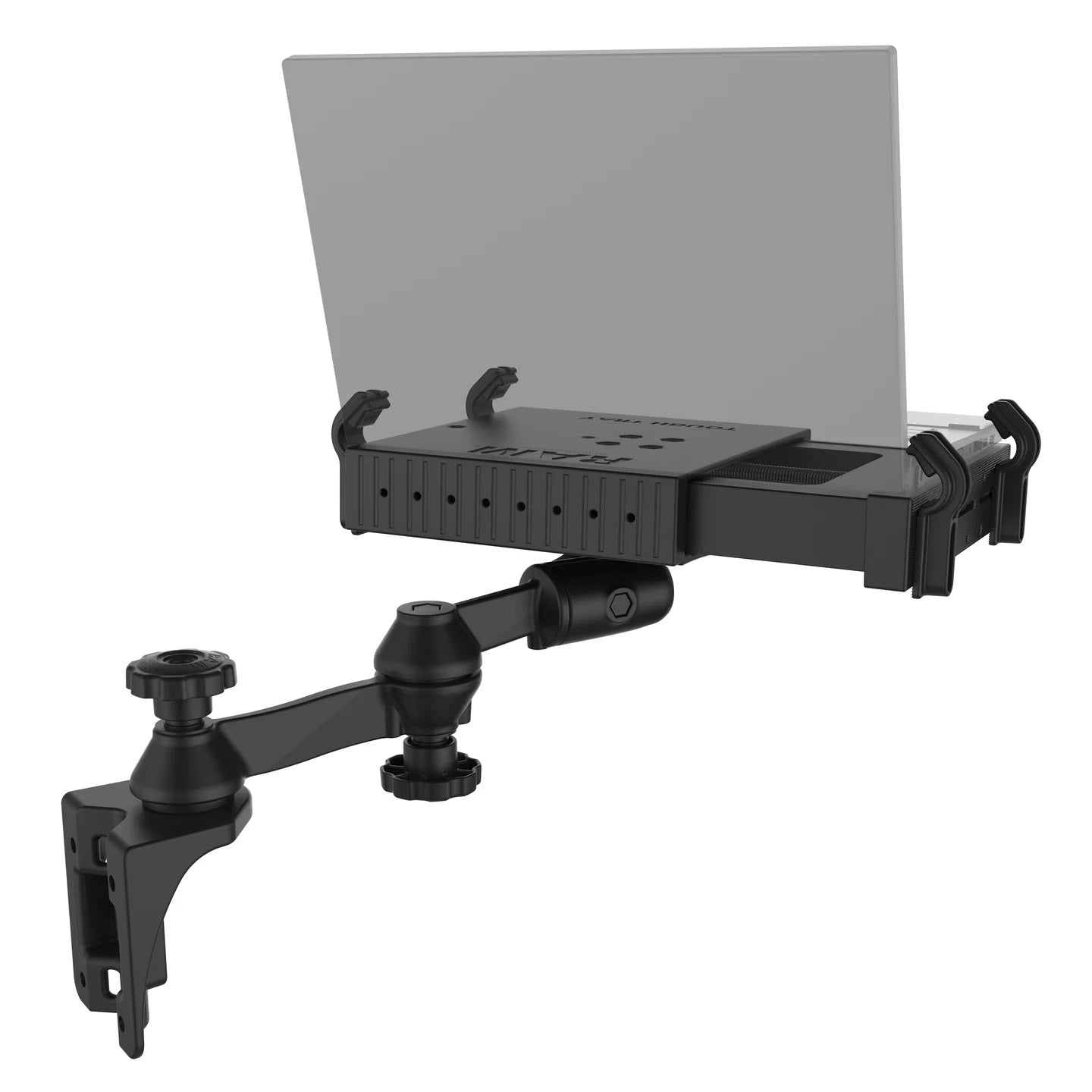

Dual Swing Arm System
Two independent 6" straight swing arms
Each arm rotates 360° with its own adjustment knob
Fully extended reach of 12 inches from the mounting surface
Arms lock securely in place once tightened -

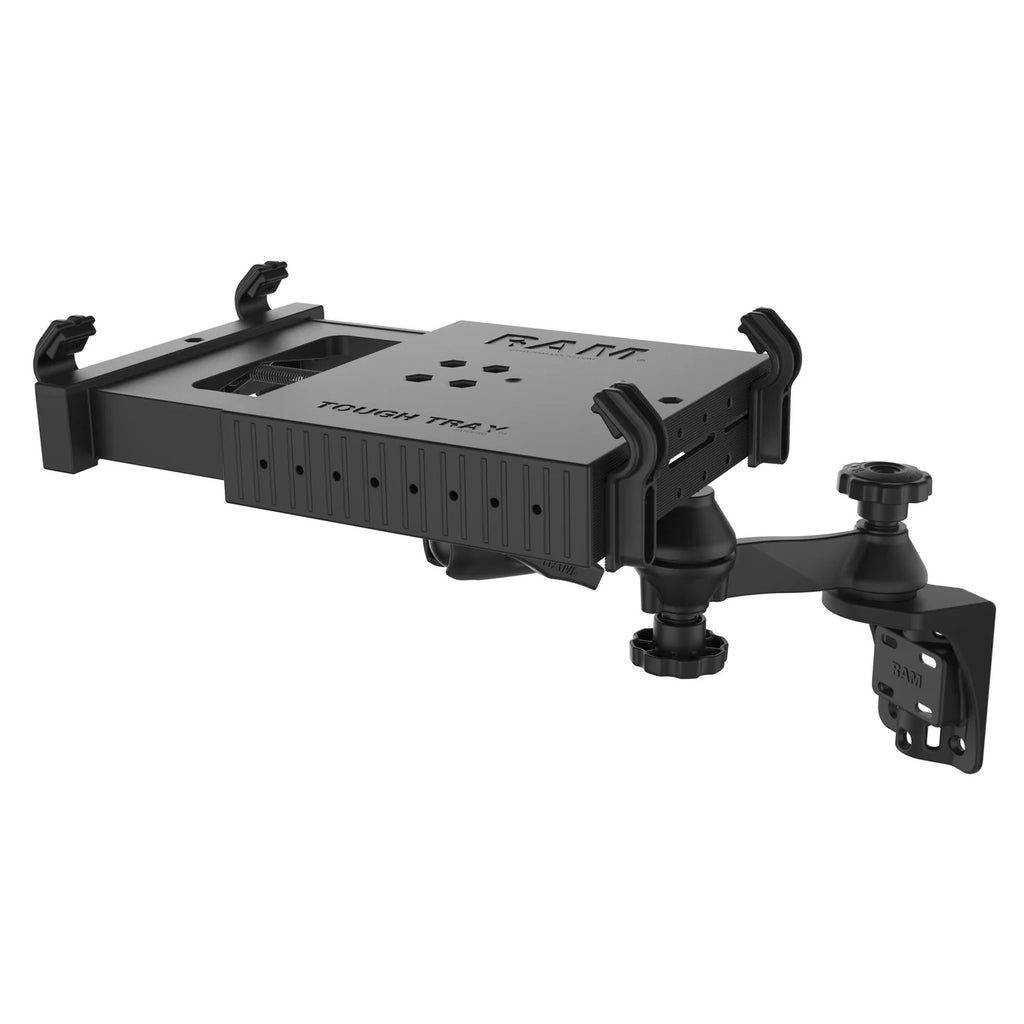

Universal Tough-Tray™ Laptop Holder

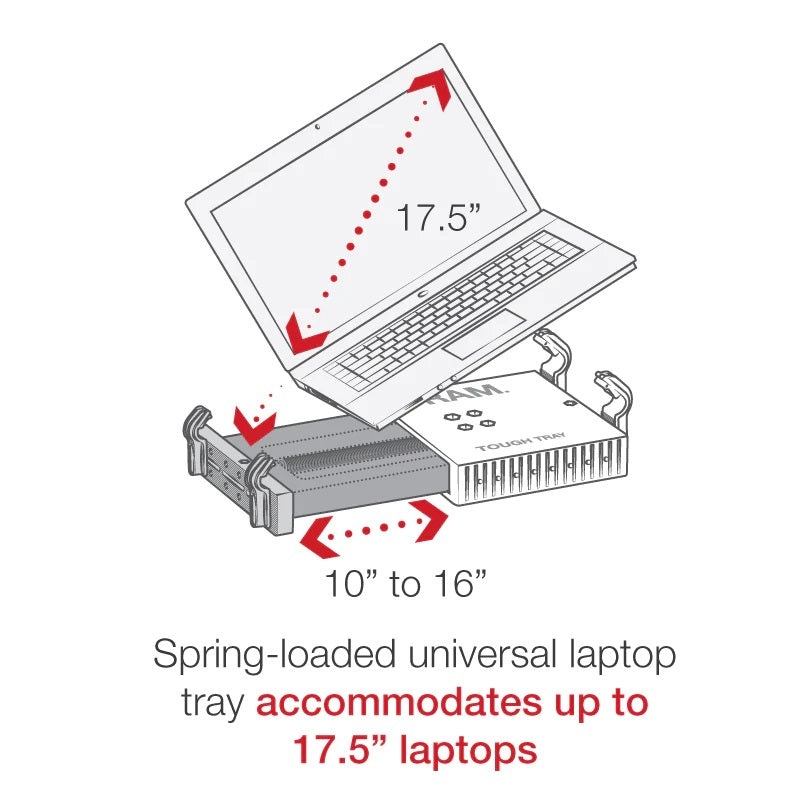

Spring-loaded tray fits laptops 10"–16" wide, supporting 17" screens
Includes four adjustable side clamping fingers with rubber inserts
Protects devices while keeping ports, drives, and buttons accessible -
Expandable Mounting Options
Side hole patterns allow attachment of additional RAM® mounts for smartphones, GPS units, or other electronics -
Heavy-Duty Construction
Powder-coated steel, marine-grade aluminum, and high-strength composite materials
Designed for demanding environments and long-term use -
Weight Capacity
Standard use: up to 4 lbs
Heavy-duty use: up to 3 lbs -
Made in the USA
Technical Specifications
-
Part Number: RAM-109V-234U
-
Product Weight: 8 lbs
-
Plate Size: 3.97" x 4.85"
-
Ball Size: C Size (1.5")
-
Base Type: Round AMPS base
-
Mounting Orientation: Vertical surface
Compatibility
-
Fits most laptops and notebooks from 10" to 16" wide
-
Supports 17" screen laptops
-
Ideal for fleet vehicles, forklifts, service trucks, warehouses, and industrial workstations
What’s Included
-
RAM® Tough-Tray™ Spring-Loaded Laptop Holder
-
Two 6" straight swing arms
-
Vertical drill-down mounting base
-
Hardware for Tough-Tray and AMPS base assembly
* Note: Hardware to attach the mount to a vertical surface or pole is not included.
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-109V-234U
-
Warranty: Manufacturer’s lifetime warranty
