Description

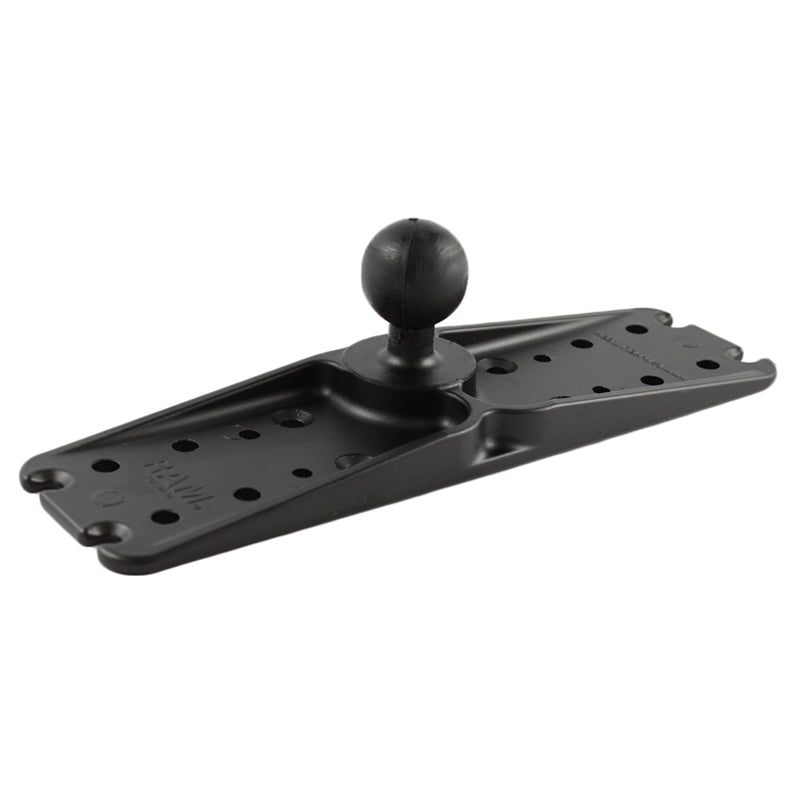

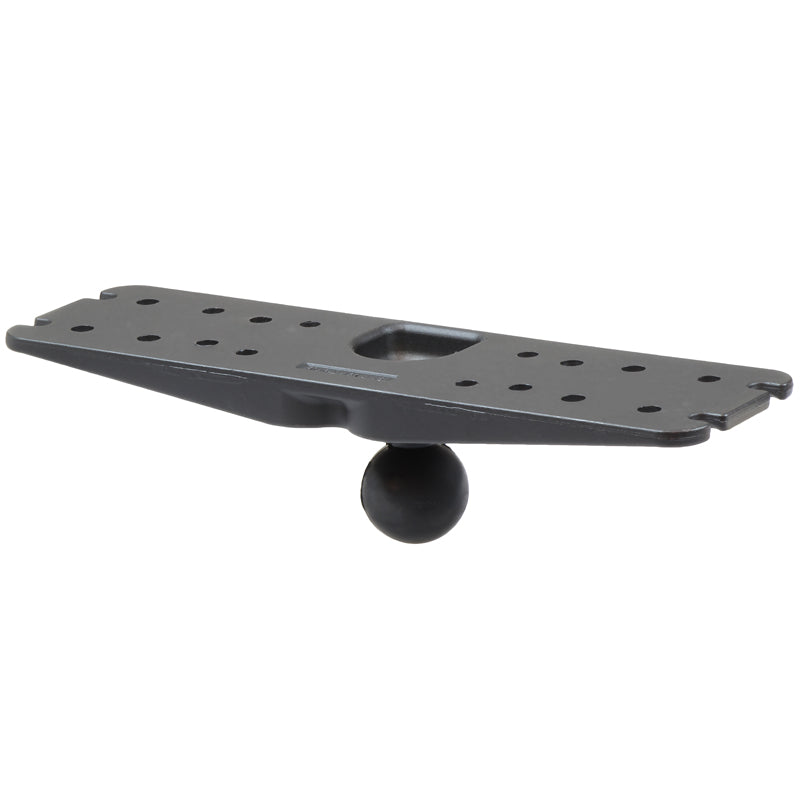

The RAM® Large Marine Electronics Plate combines a C Size 1.5" Ball with a flat 3" x 11" rectangular mounting plate. Its selection of predrilled holes supports a variety of compatible marine electronics, radios, gimbal brackets, and related equipment.
The ball is positioned at a right angle to the plate and connects to compatible RAM C Size double socket arms for adjustable equipment placement.
Key Features
-
RAM C Size 1.5" ball connection
-
Large 3" x 11" rectangular mounting plate
-
Multiple predrilled mounting-hole combinations
-
Suitable for many marine GPS units, radios, and gimbal brackets
-
Ball is positioned at a right angle to the plate
-
Includes four shoulder washers
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This electronics plate is designed for mounting compatible marine GPS units, CB radios, ham radios, gimbal brackets, and similar equipment. It is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
The universal plate provides multiple mounting-hole locations, but additional holes may be required for certain devices. Device attachment hardware is not included.
Specifications
Ball Size: C Size 1.5" Ball
Plate Dimensions: 3" x 11"
Hole Pattern: Multiple universal mounting-hole combinations; see manufacturer drawing
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 1.0 lb
What’s Included
-
(4) .312" x .187" shoulder washers
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-137BU
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
