Description

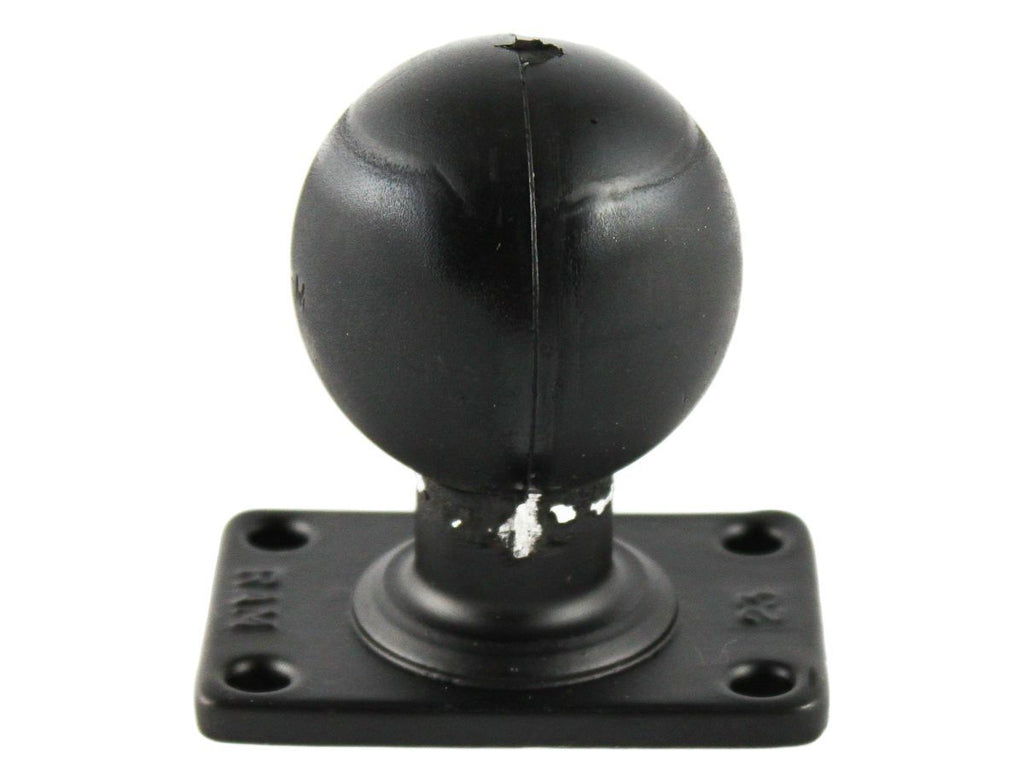

The RAM® Rectangular Ball Base combines a D Size 2.25" Ball with a compact 2" x 3" mounting plate. Its four-hole pattern measures 1.5" x 2.5" center to center for attachment to compatible equipment and mounting surfaces.
The integrated ball connects to compatible RAM D Size double socket arms for adjustable positioning within a heavy-duty modular mounting system.
Key Features
-
RAM D Size 2.25" ball connection
-
2" x 3" rectangular mounting plate
-
Four-hole mounting pattern
-
1.5" x 2.5" center-to-center hole spacing
-
Compatible with RAM D Size 2.25" double socket arms
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs during standard use and 5 lbs during heavy-duty use
Use Cases & Compatibility
This ball base is designed for compatible equipment and mounting surfaces that use a 1.5" x 2.5" four-hole pattern. It is compatible with a variety of RAM D Size 2.25" socket arms and mounting components.
Attachment hardware is not included.
Specifications
Ball Size: D Size 2.25" Ball
Hole Pattern: Four-hole pattern
Hole Spacing: 1.5" x 2.5" center to center
Plate Dimensions: 2" x 3"
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.52 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-202U-23
Warranty: Manufacturer’s lifetime warranty.
