Description

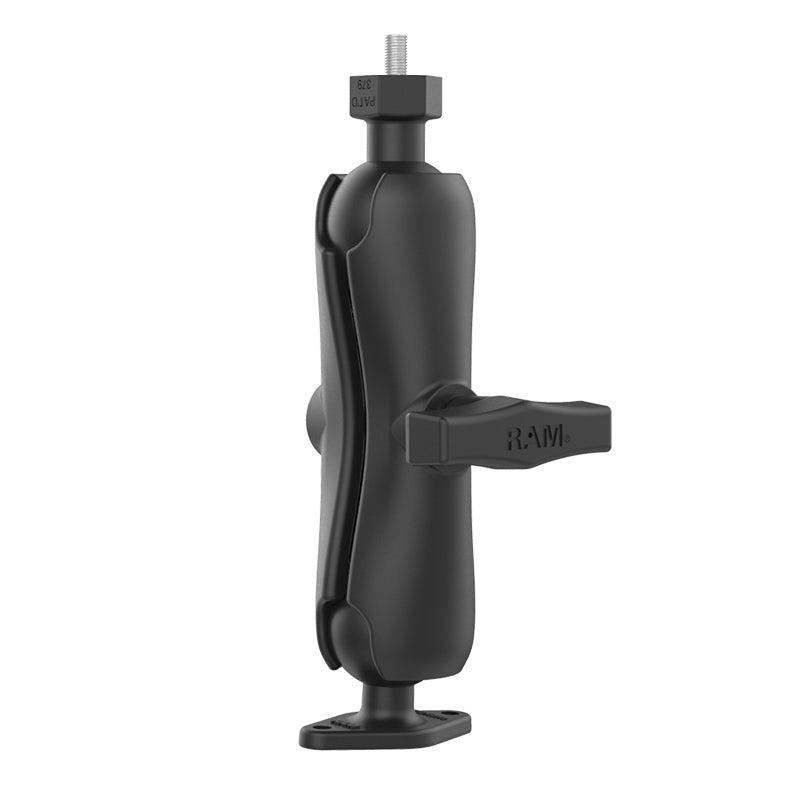

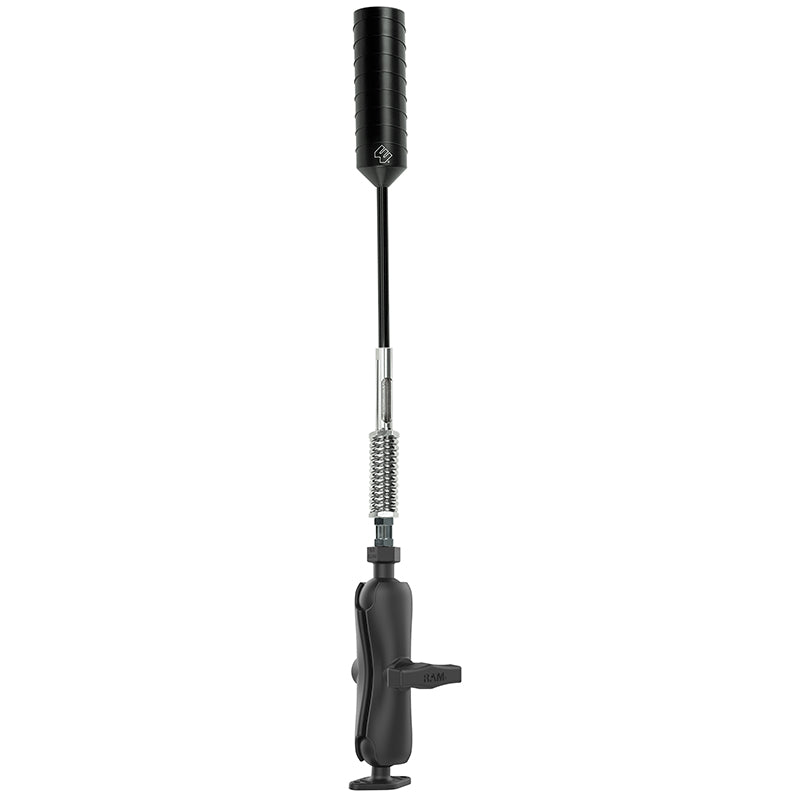

The RAM® Drill-Down Heavy-Duty Mount for weBoost antennas provides an adjustable mounting solution for vehicle installations where a secure flat-surface attachment is required. The system combines a threaded RAM® Tough-Ball™, short C Size socket arm, and drill-down diamond ball base, allowing the antenna to be repositioned, folded down when not in use, or extended for clearance in tighter mounting locations. It is designed for compatible weBoost Drive Reach OTR and Drive X antennas and is well suited for off-road vehicles, trucks, and other demanding vehicle applications.
Key Features
- Complete adjustable mounting kit for compatible weBoost antennas
- Threaded RAM® Tough-Ball™ connects to the weBoost antenna thread adapter
- Short C Size socket arm provides adjustable positioning and allows the antenna to fold down when not in use
- Drill-down diamond ball base installs to flat surfaces such as rear bumpers, spare tire carriers, and antenna brackets
- C Size ball-and-socket system provides additional reach and positioning flexibility
- Constructed from powder-coated marine-grade aluminum and high-strength composite
- Designed for demanding vehicle and off-road applications
Use Cases & Compatibility
Designed for use with compatible weBoost antennas including:
- weBoost Drive Reach OTR antennas
- weBoost Drive X antennas
The drill-down base is intended for secure installation on suitable flat mounting surfaces such as rear bumpers, spare tire carriers, and antenna brackets. The adjustable ball-and-socket design allows the antenna to be repositioned or collapsed when clearance is needed.

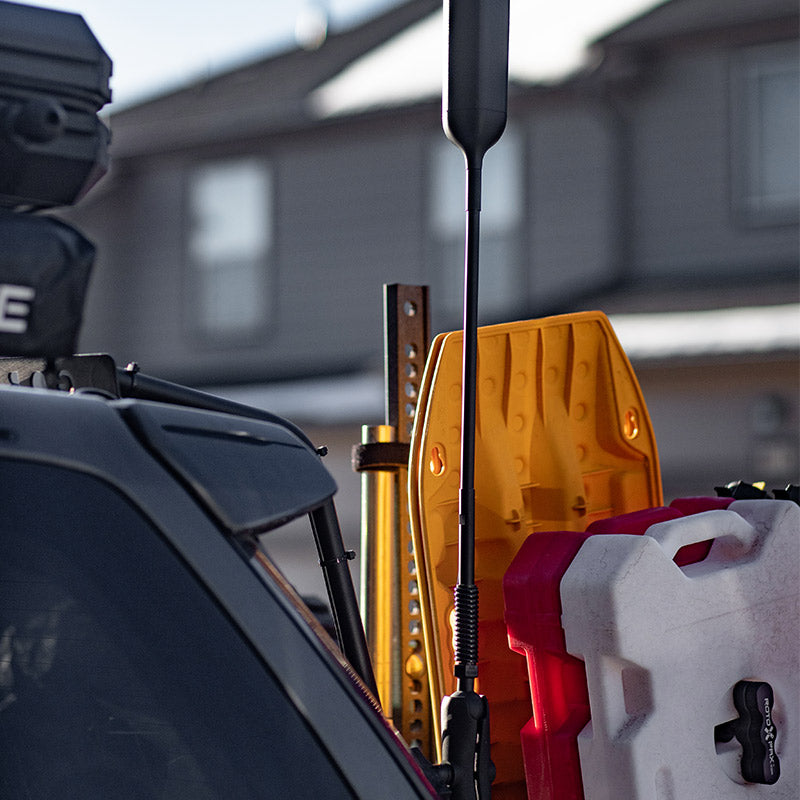

This mounting system is particularly suitable for semi-trucks, off-road vehicles, fleet vehicles, and other vehicle installations where a rugged adjustable antenna mounting solution is required.
Compatible Components
The system uses RAM® C Size 1.5" Ball components. The supplied threaded Tough-Ball™ uses a 3/8"-24 x .375" thread for connection to the compatible weBoost antenna thread adapter.
Specifications
- Mount Type: Drill-down adjustable antenna mounting system
- Ball Size: C Size 1.5" Ball
- Socket-to-Socket Length: 2.5"
- Hole Pattern: 2-Hole AMPS 1.912"
- Thread Pitch: 3/8"-24 x .375"
- Plate Size: 2.43" x 1.31"
- Weight Capacity — Standard Use: 4 lbs
- Weight Capacity — Heavy-Duty Use: 3 lbs
- Materials: Marine-grade aluminum and high-strength composite
- Product Weight: 1.02 lb
What’s Included
- 3/8"-24 x .375" threaded RAM® Tough-Ball™
- C Size short socket arm
- C Size RAM® diamond ball base
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-238-379-372437U
Warranty: Lifetime warranty
Gadget Mounts is an authorized RAM Mounts dealer.
