Description

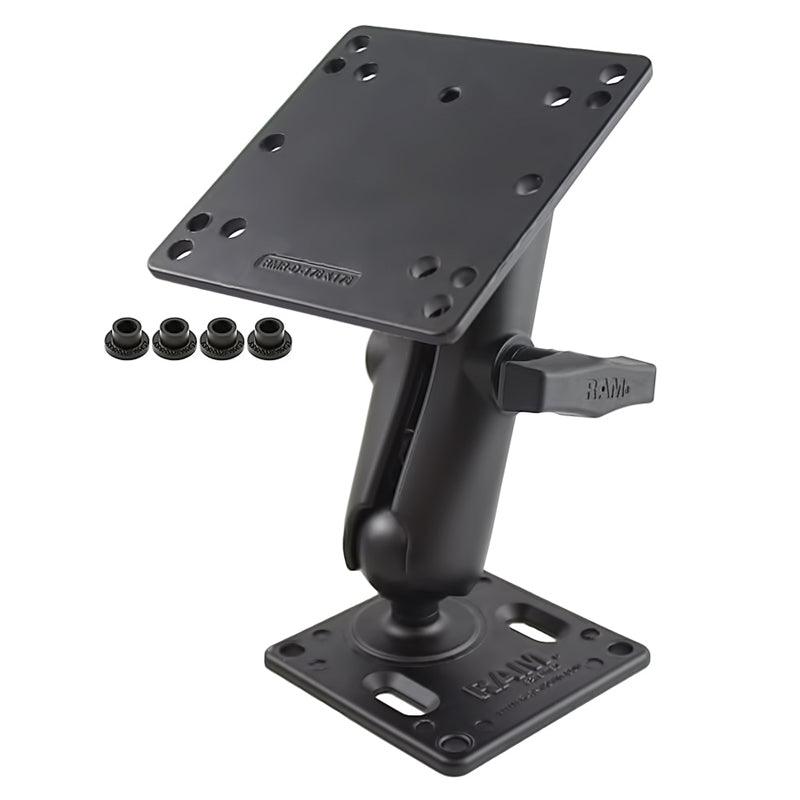

The RAM® Double Ball Mount with Dual VESA Plates is a rugged, adjustable mounting solution designed for securely attaching monitors, tablets, industrial displays, and other VESA-compatible devices in demanding environments. Built around RAM’s patented 1.5" C-size rubber ball and socket system, this mount delivers exceptional vibration dampening, strength, and full adjustability.
This versatile configuration includes two VESA adapter plates—one supporting 75x75mm and another supporting 75x75mm and 100x100mm hole patterns—connected by a standard-length double socket arm. Whether used in vehicles, warehouses, manufacturing floors, or mobile workstations, this mount provides rock-solid performance with precise positioning.
Manufactured from powder-coated, marine-grade aluminum, the RAM-246-2461U is built to last in harsh conditions. Backed by RAM Mounts’ lifetime warranty and made in the USA, this solution is trusted by professionals worldwide.
When you buy from Gadget Mounts, you’re purchasing from an Authorized RAM Mounts Dealer, ensuring genuine products and full manufacturer support.
Key Features
-
Dual VESA mounting plates support 75x75mm and 100x100mm configurations
-
C-size 1.5" rubber ball system provides superior vibration isolation
-
Standard-length double socket arm with spring-loaded tension
-
Allows near-infinite adjustability and secure locking
-
Includes washer inserts for compatibility with smaller screws
-
Constructed from powder-coated marine-grade aluminum
-
Ideal for vehicle, industrial, commercial, and workstation mounting
-
Made in the USA and backed by a lifetime warranty
Technical Specifications
-
Ball Size: C Size (1.5")
-
Arm Type: Standard Length Double Socket Arm
-
Overall Arm Length: 5.69"
-
Socket-to-Socket Length: 4.66"
-
Overall Height (Fully Straight): 7.35"
-
Small Plate Size: 3.625" x 3.625" (75x75mm VESA)
-
Large Plate Size: 4.75" x 4.75" (75x75mm & 100x100mm VESA)
-
Weight Capacity:
-
Standard Use: 4 lbs
-
Heavy-Duty Use: 3 lbs
-
-
Product Weight: 1.67 lbs
-
Material: Powder-coated marine-grade aluminum
Included Hardware
-
(4) .312" x .187" shoulder washers
Brand and Warranty
-
Brand: RAM Mounts
-
Part Number: RAM-246-2461U
-
Warranty: Manufacturer’s lifetime warranty
