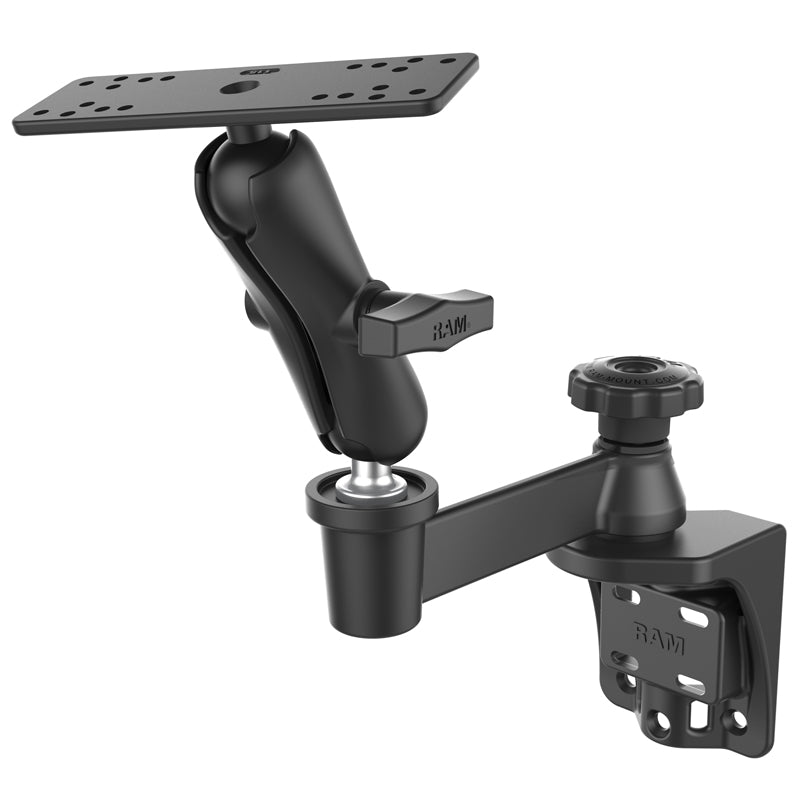

Vertical base mounts to flat vertical surface*: Cut-out on base allows for mounting to a vertical rail/post*
6" long swing arm connects to base with 1.5" ball - Loosen knob to swing to your desired location and tighten to secure in place
Standard size(5.625" long) socket arm connected to the 1.5" ball
Universal electronic base plate (6.25" x 2") is connected at the opposite end of the socket arm - contains combinations of pre-drilled holes which will match up to many electronic devices and mounts**
Adjust horizontally and vertically with 360 degree horizontal rotation
Constructed of powder coated marine grade aluminum
Holds up to 4 lbs.
Made in the USA
Dimensions:
Overall swing arm length: 6"
Overall base plate length: 6.25"
Overall height: 8.89"

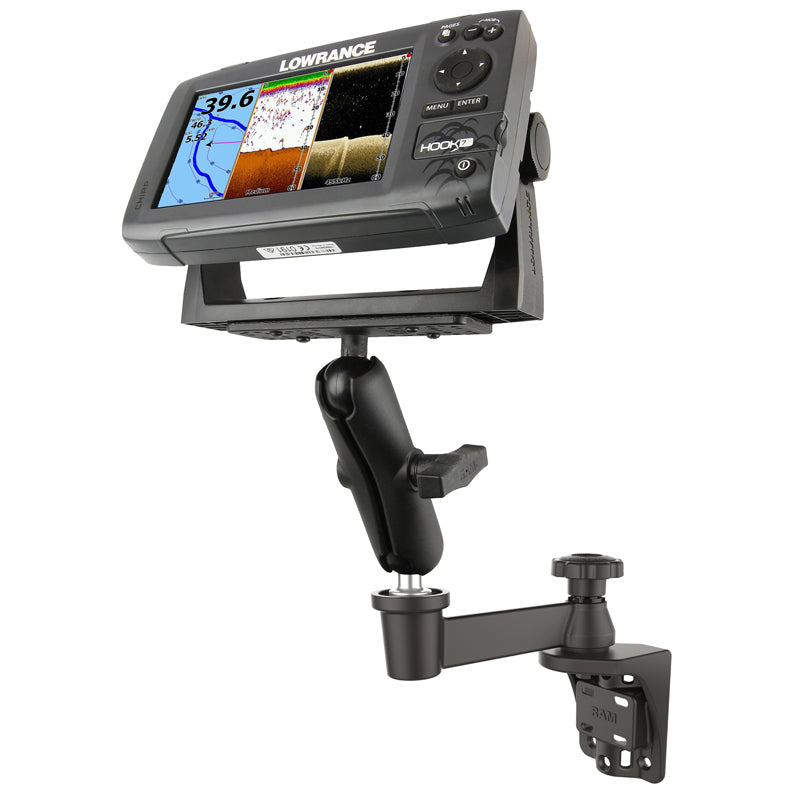

Compatible Devices: (partial list)
Garmin ECHOMAP Plus 72cv
Garmin ECHOMAP Plus 73cv
Garmin ECHOMAP Plus 74cv
Garmin ECHOMAP Plus 75cv
Garmin ECHOMAP Plus 77cv
Garmin GPSMAP 722
Garmin GPSMAP 722xs
Garmin GPSMAP 742
Garmin GPSMAP 742xs
Garmin Striker Plus 5cv
Garmin Striker Plus 7cv
Garmin Striker Plus 7sv
Lowrance HDS Carbon 7
Lowrance HDS LIVE 7
Plus many other devices
Brand: RAM Mounts Part number: RAM-109V-2U Warranty: Manufacturer's lifetime warranty
* Mounting hardware not included
** The rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
