Description

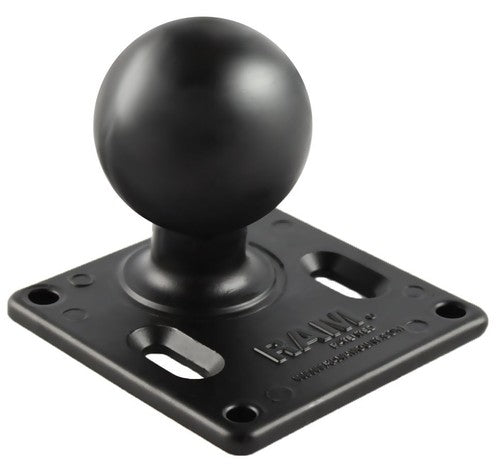

The RAM® 75 x 75mm VESA Plate combines a 3.625" square mounting plate with a D Size 2.25" Ball. Its standard 75 x 75mm VESA pattern supports compatible monitors, displays, and equipment.
The ball is offset approximately .88" from the center of one plate edge and connects to compatible RAM D Size double socket arms for adjustable positioning.
Key Features
-
RAM D Size 2.25" ball connection
-
Standard 75 x 75mm VESA mounting pattern
-
3.625" square mounting plate
-
Ball is positioned .88" from the center of one plate edge
-
Compatible with RAM D Size 2.25" double socket arms
-
Powder-coated marine-grade aluminum construction
-
Supports up to 6 lbs during standard use and 5 lbs during heavy-duty use
Use Cases & Compatibility
This VESA adapter plate is designed for compatible displays and equipment using a 75 x 75mm VESA mounting pattern. It is compatible with a variety of RAM D Size 2.25" socket arms and mounting components.
Attachment hardware is not included.
Specifications
Ball Size: D Size 2.25" Ball
Mounting Pattern: 75 x 75mm VESA
Plate Dimensions: 3.625" x 3.625"
Ball Position: .88" from the center of one plate edge
Material: Powder-coated marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.69 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-2461U
Warranty: Manufacturer’s lifetime warranty.
