Description
The RAM 8” Tele-Pole Upper Pole & C-Size Double Ball Swing Arm Mount is a modular workstation mounting component designed to connect a RAM lower pole base with a tablet holder, monitor mount, or GDS® Keyboard™ setup. It is built for fleet vehicles, service trucks, warehouse vehicles, and mobile workstations where operators need adjustable device positioning in tight vehicle interiors.

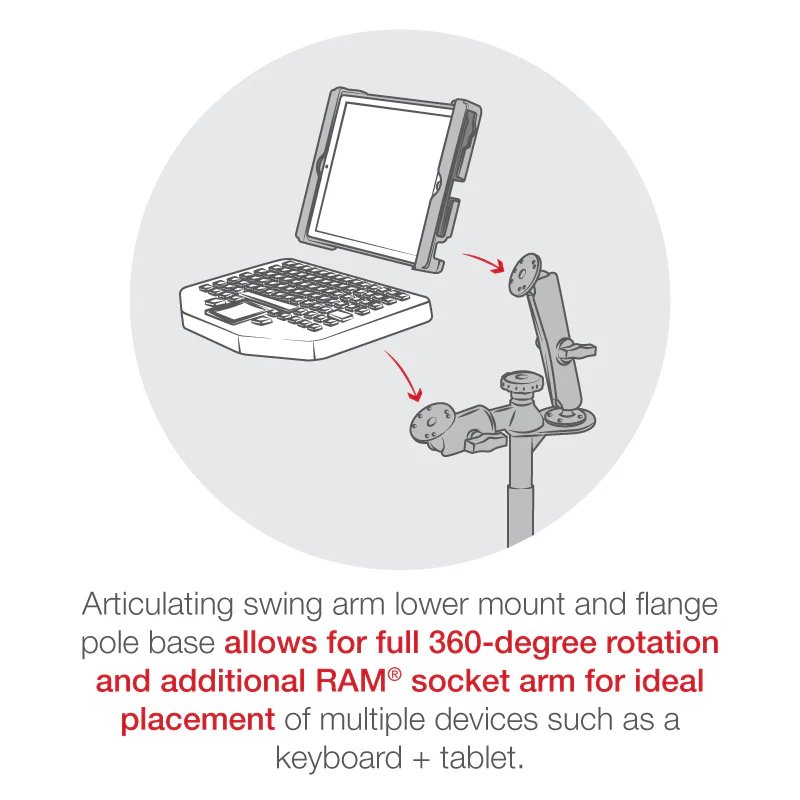

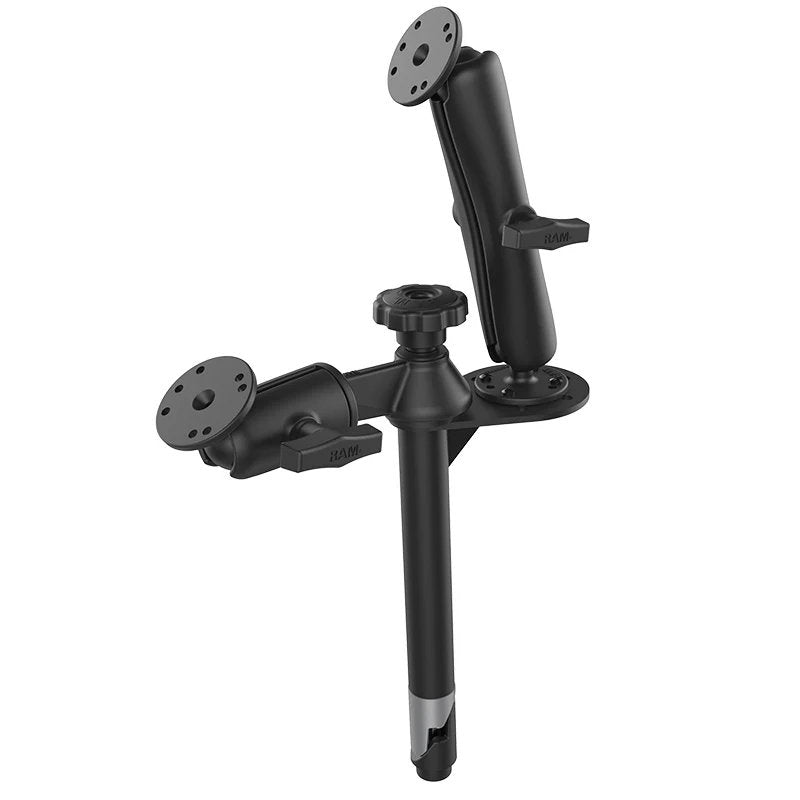

This assembly includes an 8” upper Tele-Pole™ with flange, a 6” swing arm, and a long C Size double socket arm for flexible positioning. The swing arm allows the keyboard or mounted device to move into working position when needed and swing out of the way when not in use.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features:
• 8” RAM® Tele-Pole™ upper pole with flange for use with compatible RAM lower pole bases
• 6” swing arm provides 360-degree rotation for adjustable keyboard or device placement
• Long C Size double socket arm supports rugged workstation positioning
• Compatible with a variety of RAM tablet holders, device holders, and GDS® Keyboard™ setups
• Powder-coated steel and marine-grade aluminum construction for demanding vehicle environments
• Designed for modular RAM mobile workstation builds and upgrades
Use Cases & Compatibility:
This mount is best used as part of a RAM vehicle workstation system where a lower pole base is already installed or being selected separately. It is commonly used in work trucks, fleet vehicles, warehouse vehicles, service vehicles, delivery vehicles, and mobile office setups where a tablet, monitor, or keyboard needs to be positioned for operator access.
Compatible with RAM lower pole bases and RAM C Size components. The flange and round plate hole patterns support common RAM mounting configurations, including AMPS-compatible device holders and compatible tablet or workstation accessories.
Specifications:
Hardware Included: Assembly Hardware
Hole Pattern:
• Tele-Pole: 2.625" x 2.625"
• Round Plate: 4-Hole AMPS: 1.181" x 1.496"
• Round Plate: 3-Hole 120-Degree: 1.812" Diameter
Ball Size: C Size (1.5")
Arm Type: Long C Size double socket arm
Upper Pole Length: 8"
Swing Arm Length: 6"
Materials:
• Powder-coated steel
• Marine-grade aluminum
Packaging Type: Box
Product Weight: 8.22 lb
What’s Included:
• RAM® 8" Upper Pole with Flange
• RAM® Double Ball Mount with Two Round Plates - C Size Long
• RAM® 6" Single Swing Arm with Round Plate
• Assembly hardware
Notes:
This is a component-style workstation mount and does not include a lower pole base, tablet holder, monitor holder, keyboard, or device cradle. Select compatible RAM lower pole bases and device holders separately based on the vehicle and workstation setup.
Brand and Warranty:
Brand: RAM Mounts
Part Number: RAM-VP-SW2F-8
Warranty: Manufacturer’s lifetime warranty
