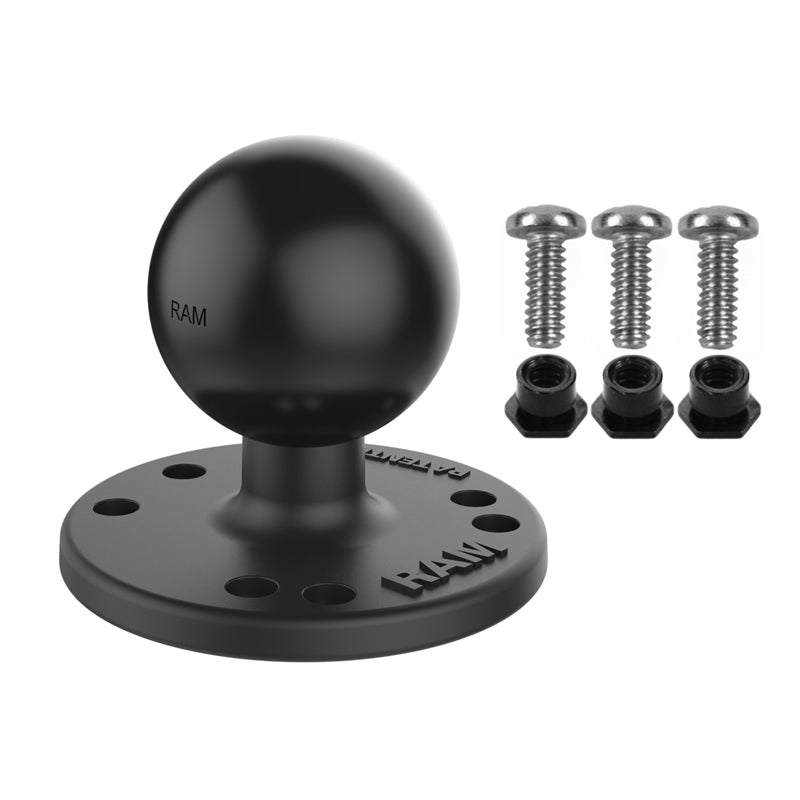

The RAM-202-G2U combines a 2.5" round mounting plate with a RAM C Size 1.5" ball for connecting compatible Garmin marine GPS and fish finder swivel mounts to a RAM mounting system.
The base includes both a four-hole AMPS pattern and a three-hole 120-degree pattern, providing compatibility with supported Garmin mounting connections. Assembly hardware is included.
Key Features
-
2.5" diameter round mounting plate
-
RAM C Size 1.5" ball connection
-
Four-hole AMPS mounting pattern
-
Three-hole 120-degree mounting pattern
-
Includes #6-32 mounting hardware
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
Designed for compatible Garmin marine GPS and fish finder swivel mounts that use the specified three-hole or four-hole mounting pattern.
Compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Base Dimensions: 2.5" diameter
Mounting Pattern: Four-hole AMPS and three-hole 120-degree
AMPS Hole Spacing: 1.181" x 1.496"
Three-Hole Pattern: 1.812" diameter
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Material: Marine-grade aluminum
Product Weight: 0.24 lb
What’s Included
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202-G2U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
