The RAM-B-202-G4U is a round ball adapter with a B Size 1" RAM rubber ball and a 2.5" diameter mounting plate. It includes hardware for attaching to the bottom of Garmin echo and Striker 4 Series devices and works with RAM B Size double socket arms.
Key Features
- 2.5" round plate with B Size 1" RAM rubber ball
- Compatible with RAM B Size double socket arms
- Includes hardware for Garmin echo and Striker 4 Series
- Pre-drilled with AMPS and 3-hole 120-degree patterns
- Marine-grade aluminum construction
Use Cases & Compatibility
Designed to connect Garmin echo and Striker 4 Series devices to RAM B Size mounting systems. The plate includes a 4-hole AMPS pattern and a 3-hole 120-degree pattern.
Specifications
Ball Size: B Size 1" Ball
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Pattern / Hole Spacing: 4-Hole AMPS: 1.181" x 1.496"; 3-Hole 120-Degree: 1.812" diameter
Dimensions: 2.5" diameter base
Product Weight: 0.18 lb

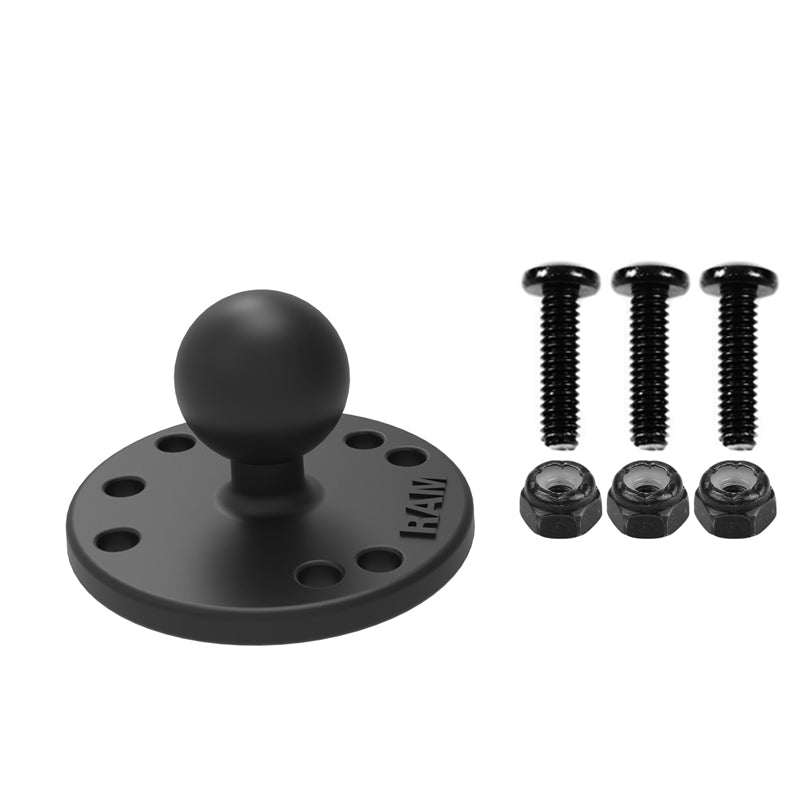

What’s Included
- RAM round plate with B Size 1" ball
- Three #8-32 x 5/8" machine screws
- Three #8-32 Nylock nuts
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-202-G4U
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
