Description
Overview

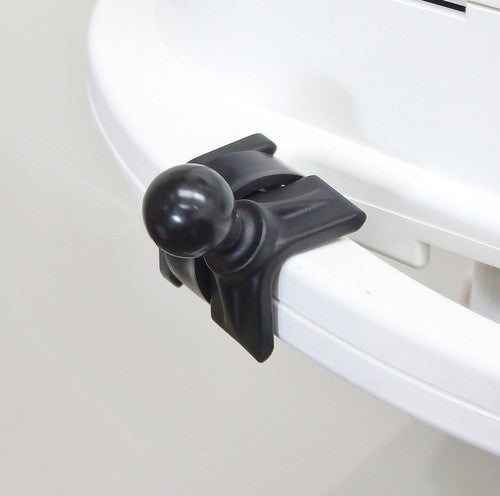

The RAM-B-108BU is a strap hose clamp ball base designed to attach a RAM B Size 1" ball to round rails from 1" to 2.1" in diameter. It uses a saddle-shaped V-base and metal worm drive strap clamp to create a secure mounting point on rails, posts, and similar round surfaces.
This base is useful when a traditional U-bolt or drill-down mount is not the right fit. It is commonly used in vehicle, marine, industrial, aviation, and equipment applications where a RAM B Size ball is needed on a larger rail or tubular surface.
Key Features
-
Saddle-shaped clamp base fits rails from 1" to 2.1" in diameter
-
Includes RAM B Size 1" rubber ball for use with RAM B Size socket arms
-
Strap clamp design provides an alternative to U-bolt and drill-down mounting
-
Compatible with RAM B Size double socket arms, holders, cradles, and adapters
-
Made from powder-coated, marine-grade aluminum for durability
-
Manufacturer-rated weight capacity of 2 lbs for standard use and 1 lb for heavy-duty use
Use Cases & Compatibility
The RAM-B-108BU is compatible with a variety of RAM Mounts B Size 1" ball components.
This base is commonly used on rails, posts, tubing, and other round mounting surfaces from 1" to 2.1" in diameter. RAM also notes this base as an alternative mounting option for Beechcraft airplanes with a “throw over yoke.”
Specifications
Product Name: RAM Strap Hose Clamp Rail Base with B Size 1" Ball
Manufacturer Part Number: RAM-B-108BU
Brand: RAM Mounts
Ball Size: B Size 1" Ball
Material: Powder-Coated Marine-Grade Aluminum
Color: Black
Clamp Range: 1" to 2.1" Diameter Rails
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Included Hardware: One #20 worm drive strap clamp, one #28 worm drive strap clamp, one 6" rubber strip
Product Weight: 0.3 lb
Additional Details: Saddle-shaped V-base with right-angle B Size ball for rail and tube mounting applications

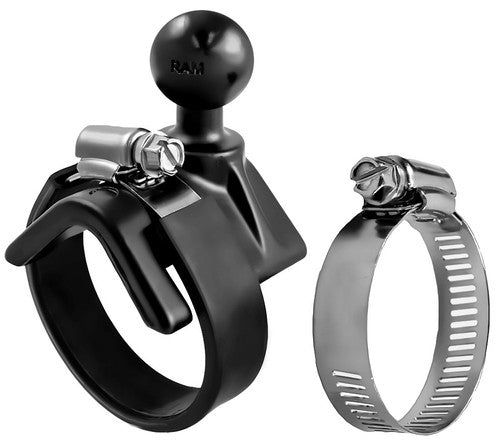

What’s Included
-
RAM strap hose clamp base with B Size 1" ball
-
One #20 worm drive strap clamp
-
One #28 worm drive strap clamp
-
One 6" rubber strip
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-108BU
Warranty: Manufacturer's lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
