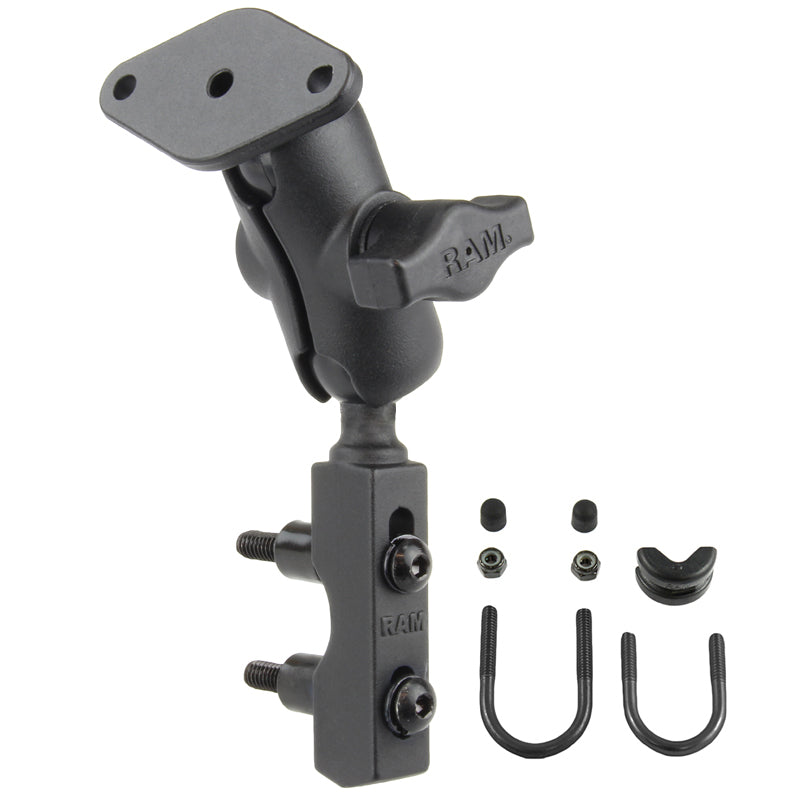

RAM Motorcycle Brake / Clutch Reservoir Short Mount with Diamond Plate

No reviews

Price:
Sale price$39.99
Stock:
In stock (31 units), ready to be shipped

Description

Features:

  • Combination base with 1" ball includes hardware for mounting to either brake/clutch reservoirs and rails that are 0.5" to 1.25" in diameter
  • Short size double socket arm - overall length: 2.42"; socket to socket: 1.75"
  • Diamond base with 1" ball; base measures 2.43" x 1.31" that contain two AMPS hole pattern (1.912" from center to center) - Connects to a variety of RAM and third party cradles
  • RAM ball and socket system with adjustment points at both ends of the socket arm - this with a twist of the arm knob allows you to move the mount to your optimum viewing position
  • Constructed of powder coated marine grade aluminum
  • Holds up to 2 lbs.
  • Made in the USA


Included Hardware:

  • (2) M6 x 55mm Hex Bolts
  • (2) #1/4-20 x 2" Hex Bolts
  • (2) 1/4"-20 x 2.5" Hex Bolts
  • (2) 1/2" Spacers
  • (2) 1/4" Split Lock Washers
  • (1) 1/4"-20 U-Bolt for .5" - 1" Rails
  • (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
  • (2) 1/4"-20 Nylock Nuts
  • (2) Rubber Caps
  • (1) U-Bolt Spacer



To determine if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centers have a minimum width of 0.94" and a maximum of 1.58".


Brand: RAM Mounts
Part number: RAM-B-174U-A
Warranty: Manufacturer's lifetime warranty
