Description

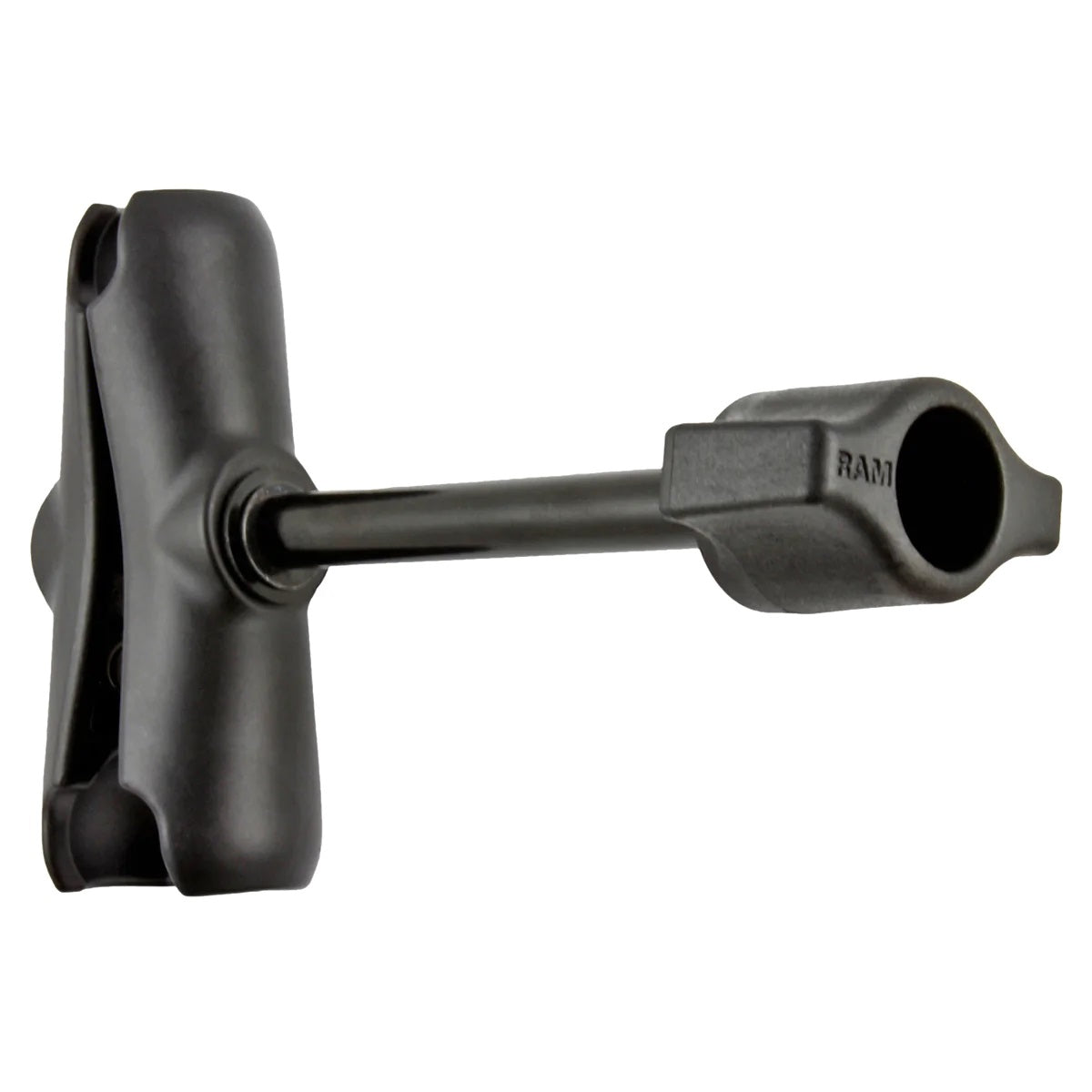

The RAM® B Size Medium Double Socket Arm with Retention Knob provides an adjustable connection between two RAM® B Size 1" ball components. The spring-loaded socket design allows the arm to pivot at both ends for flexible positioning and easy adjustment of the mounted device.
An extended retention knob makes the arm easier to tighten and reposition while helping prevent the knob from being loosened too far during adjustment. With a 3" socket-to-socket length and durable marine-grade aluminum construction, this medium-length arm is designed for building or modifying RAM® B Size mounting systems.
Key Features
-
Medium-length double socket arm for RAM® B Size 1" ball components
-
Socket at each end accepts compatible 1" RAM® balls
-
Spring-loaded design allows easy positioning and adjustment
-
Extended retention knob provides convenient tightening and helps prevent over-loosening
-
Ball-and-socket design provides a wide range of positioning angles
-
Marine-grade aluminum construction
-
Supports up to 2 lbs in standard-use applications and 1 lb in heavy-duty applications
Use Cases & Compatibility
Designed for use with RAM® B Size 1" ball components. The double socket arm connects two compatible B Size ball bases, adapters, holders, or other RAM® components to create or modify a mounting system.
This is a mounting component and does not include a device holder or mounting base.
Specifications
-
Ball size: B Size 1"
-
Arm length: Medium
-
Overall length: 3.73"
-
Socket-to-socket length: 3"
-
Weight capacity: Standard use: 2 lbs; Heavy-duty use: 1 lb
-
Product weight: 0.40 lb
-
Material: Marine-grade aluminum
What’s Included
-
(1) RAM® B Size Medium Double Socket Arm with Retention Knob
Brand & Warranty
Brand: RAM® Mounts
Part number: RAM-B-201-ALA1-KRU
Warranty: Lifetime warranty
