Description

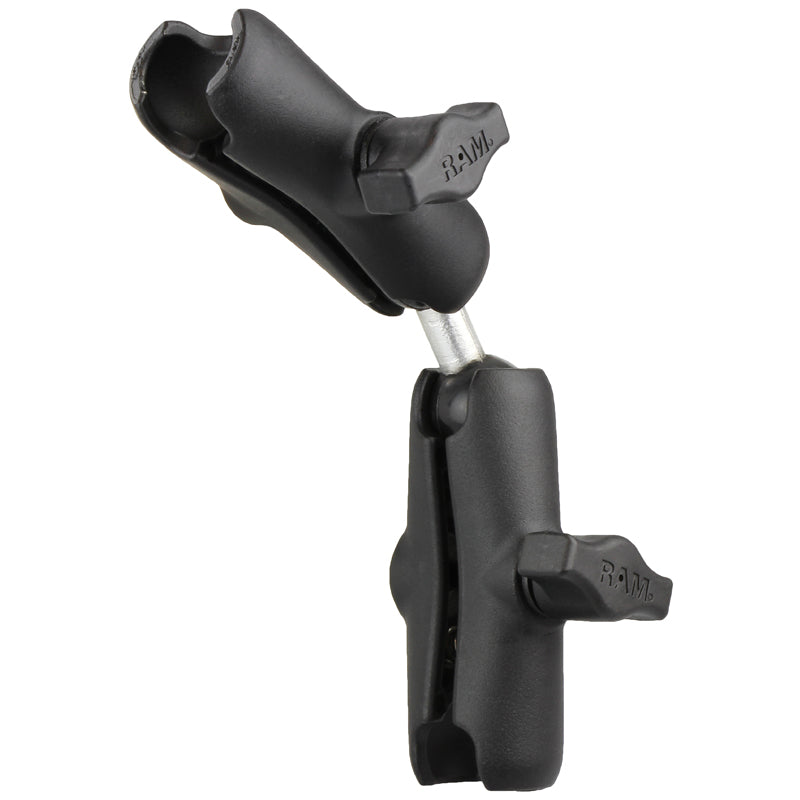

The RAM-B-201-201U combines two medium-length B size double socket arms with a double ball adapter to provide extended reach and additional articulation within a RAM mounting system. The dual-arm design allows multiple adjustment points for positioning a compatible device holder, mounting base, or other B size component.
Key Features
-
Includes two medium-length RAM B size double socket arms
-
Double ball adapter connects the two arms for increased reach and positioning flexibility
-
Compatible with RAM B size 1" ball components
-
Ball-and-socket design provides a wide range of adjustment
-
Overall length of 8.375"
-
Made from powder-coated, marine-grade aluminum
-
Supports up to 2 lbs in standard-use applications and 1 lb in heavy-duty applications
-
Backed by RAM Mounts' lifetime warranty
Use Cases & Compatibility
Designed as an extension and articulation component for RAM B size mounting systems. It can be used between compatible B size mounting bases, device holders, adapters, and other RAM components when additional reach or positioning flexibility is needed.
RAM specifically notes this configuration as suitable for applications such as aircraft cockpits where additional extension and articulation may be useful.
Specifications
-
Ball size: B Size – 1"
-
Overall length: 8.375"
-
Socket-to-socket length: 7.65"
-
Weight capacity: 2 lbs standard use; 1 lb heavy-duty use
-
Product weight: 0.68 lb
-
Material: Marine-grade aluminum
What’s Included
-
Two RAM-B-201U medium-length double socket arms
-
One RAM-B-230U double ball adapter
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-B-201-201U
Warranty: Manufacturer lifetime warranty
Gadget Mounts is an authorized RAM Mounts Dealer.
