Description

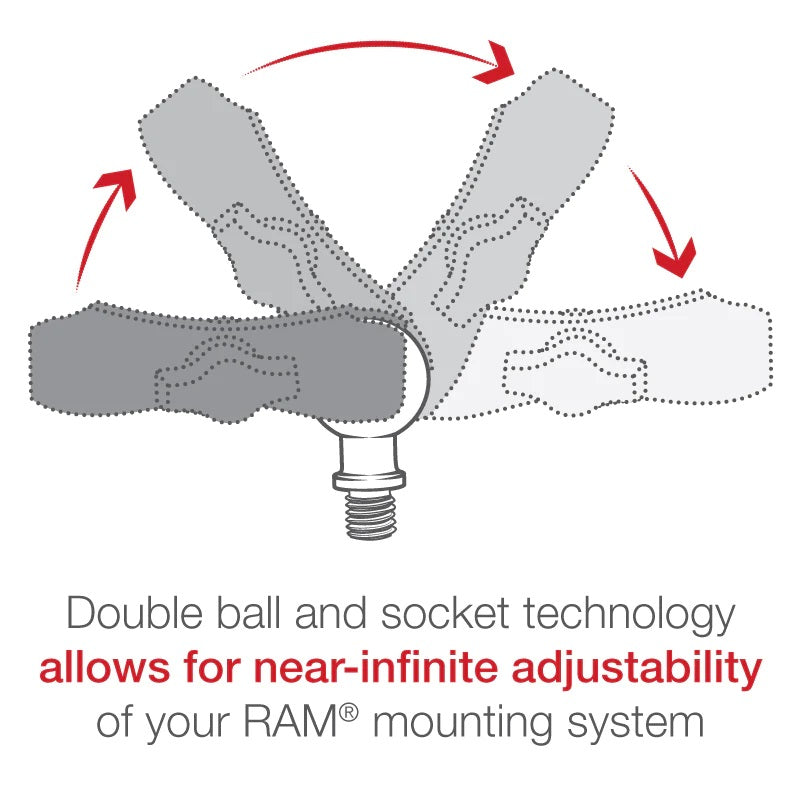

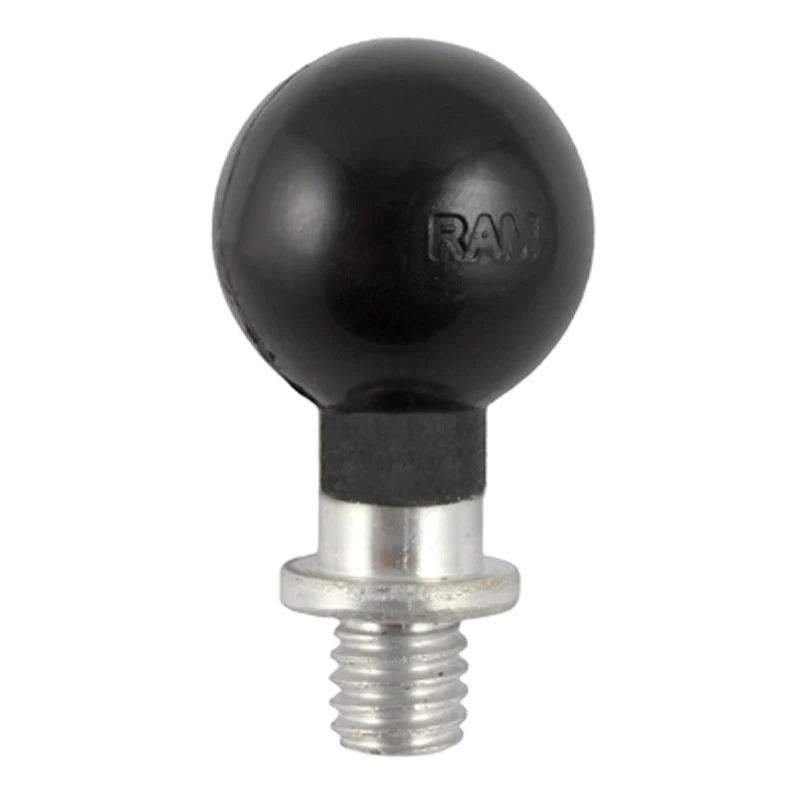

The RAM-B-236-SEC1U Ball Adapter is a compact RAM Mounts component that adds a B size 1" RAM rubber ball to compatible 3/8"-16 threaded applications. It features a 3/8"-16 threaded post with a 0.4" thread length, allowing compatible mounting points to be adapted into the RAM ball-and-socket system.
This adapter is useful for custom mounting setups where a threaded connection needs to connect to a RAM B size double socket arm.
Key Features
-

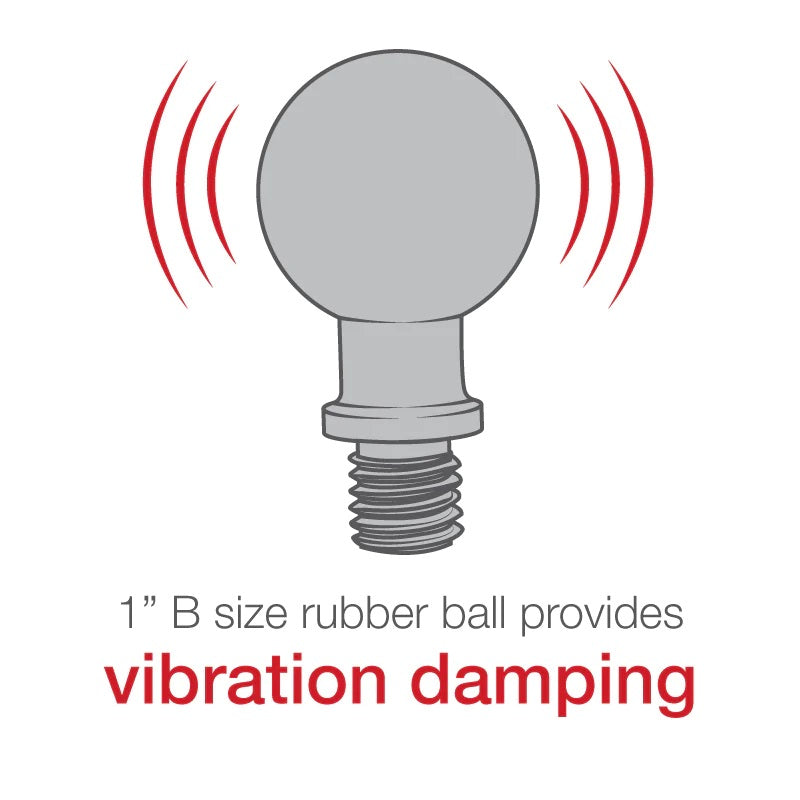

B size 1" RAM rubber ball with 3/8"-16 threaded post
-
0.4" thread length
-
Allows connection to RAM B size double socket arms
-
Useful for custom threaded mounting applications
-
Marine-grade aluminum construction for durability
-
Compact adapter for building or modifying RAM mounting systems
Use Cases & Compatibility
The RAM-B-236-SEC1U is designed for compatible applications that require a 3/8"-16 threaded post and a RAM B size 1" ball. Once installed, the integrated ball connects to RAM B size double socket arms and other compatible RAM B size components.
This component is commonly used when adapting a threaded mounting point into an adjustable RAM ball-and-socket setup.
Specifications
Ball Size: B Size 1"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Product Weight: 0.05 lb
Additional Details: 3/8"-16 threaded post; 0.4" thread length
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-236-SEC1U
Warranty: Manufacturer's lifetime warranty
