Description

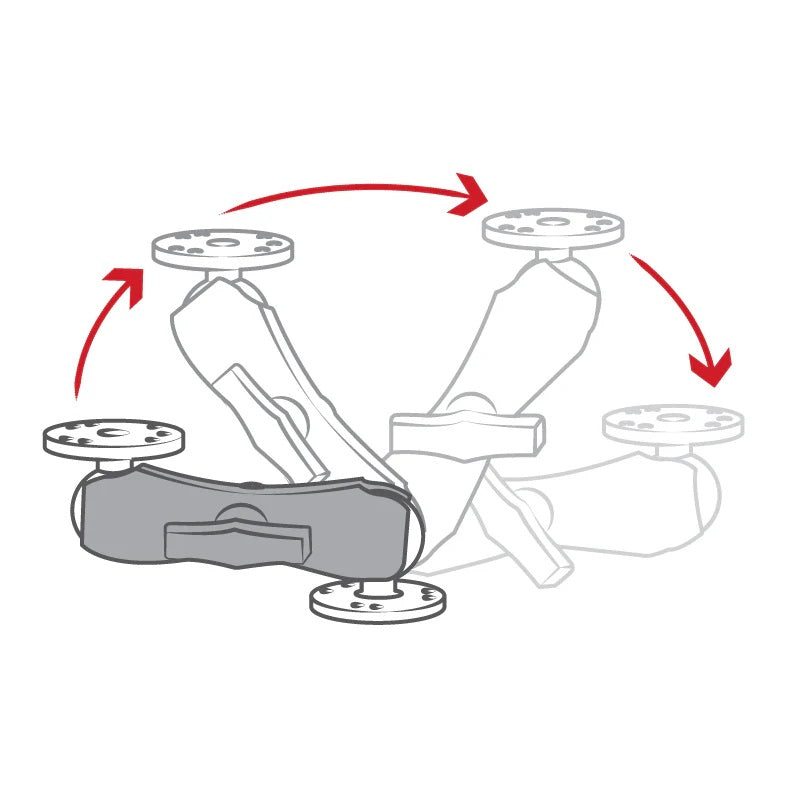

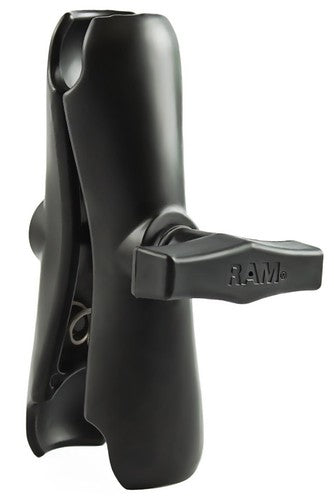

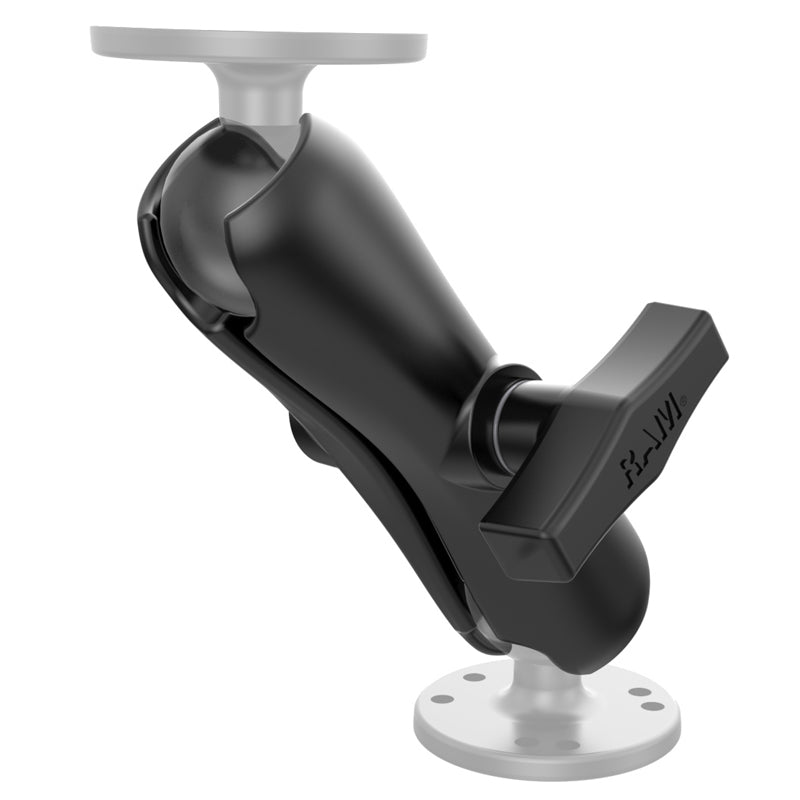

The RAM-201U is a medium-length double socket arm that connects two RAM C Size 1.5" ball components. Its adjustment knob secures both sockets simultaneously, allowing connected bases, adapters, and device holders to be repositioned as needed.
An internal spring keeps one socket open when the arm is loosened, helping simplify component attachment and adjustment.
Key Features
-
Connects two RAM C Size 1.5" ball components
-
Medium-length arm with a 5.69" overall length
-
4.66" socket-to-socket length
-
Adjustable ball-and-socket design supports a wide range of positioning angles
-
Internal spring keeps one socket open during installation
-
Powder-coated, marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
Designed for use between compatible RAM C Size 1.5" ball bases, adapters, and device holders. This standalone socket arm is part of the modular RAM C Size mounting system.

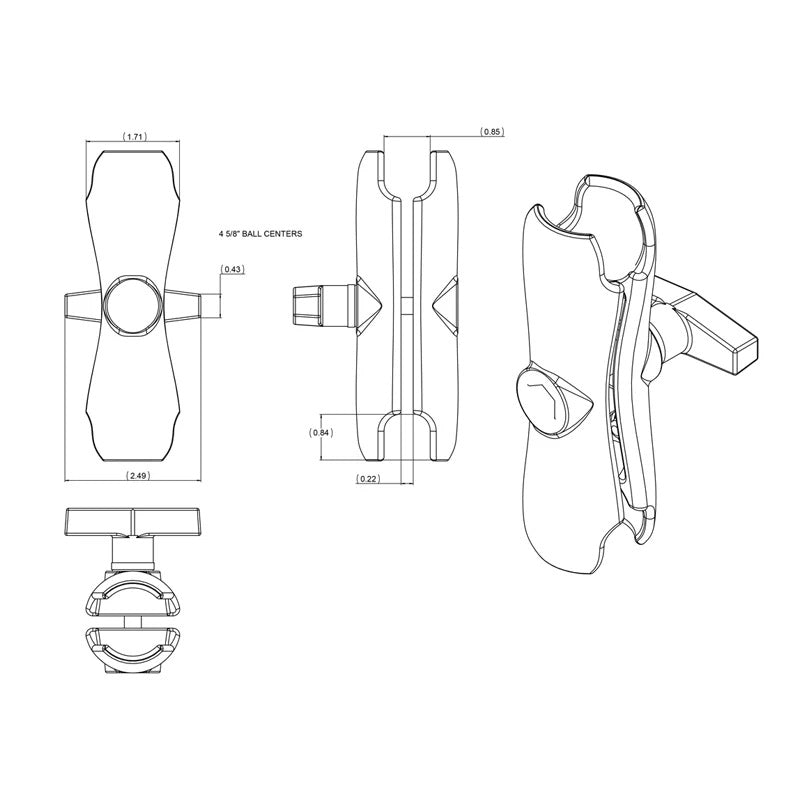

Specifications
Ball Size: C Size 1.5" Ball
Overall Length: 5.69"
Socket-to-Socket Length: 4.66"
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.75 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-201U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
