Description

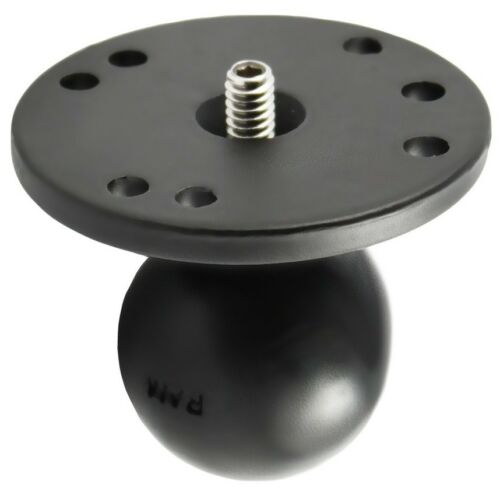

The RAM-202AU combines a RAM C Size 1.5" ball with a 2.5" round support plate and centered 1/4"-20 threaded stud. It is designed to connect compatible cameras, camcorders, and other equipment with a standard female 1/4"-20 mounting thread to a modular RAM mounting system.
The round plate supports the base of the attached device, while the integrated ball allows connection to compatible RAM C Size socket arms and mounting components.
Key Features
-
RAM C Size 1.5" ball for compatible socket arms and mounting components
-
Centered male 1/4"-20 threaded stud
-
3/4" threaded post length
-
2.5" diameter round support plate
-
Supports compatible cameras and camcorders with a female 1/4"-20 thread
-
Includes 4-hole AMPS and 3-hole 120-degree mounting patterns
-
Marine-grade aluminum construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
Designed for attaching compatible cameras, camcorders, and threaded equipment to a RAM mounting system. This standalone adapter is compatible with a variety of RAM C Size 1.5" socket arms and mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Thread Size: Male 1/4"-20
Threaded Post Length: 3/4"
Plate Dimensions: 2.5" diameter
Hole Pattern: 4-Hole AMPS: 1.181" x 1.496"; 3-Hole 120-Degree: 1.812" diameter
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Product Weight: 0.24 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202AU
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
