Description

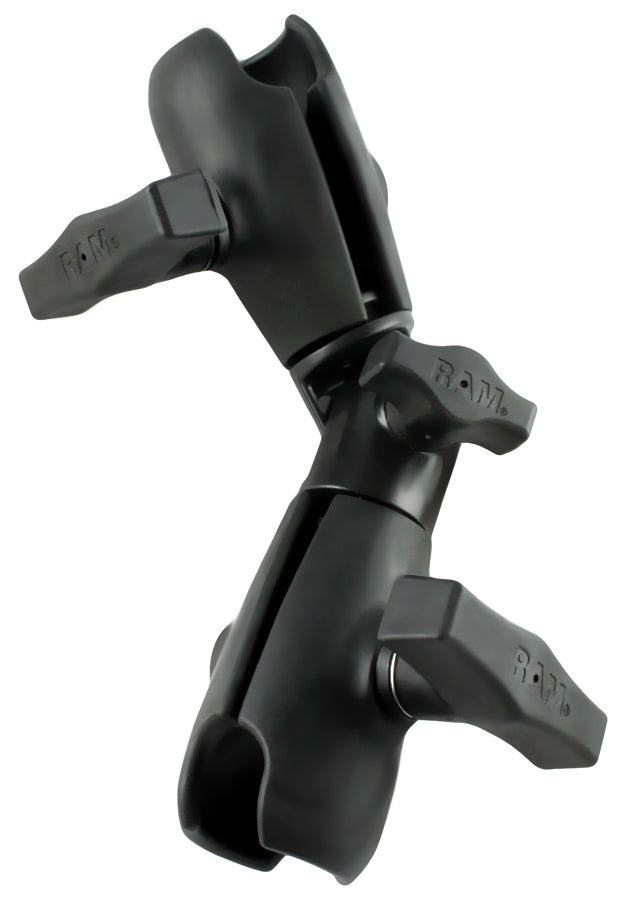

The RAP-200-2U is a double socket swivel and ratchet arm for RAM C Size mounting systems. Open sockets at both ends connect to compatible C Size ball bases, adapters, and device holders.
A rotating center section and adjustable swivel joint provide additional positioning beyond a standard double socket arm. The center rotates 360 degrees, while the swivel joint moves forward and backward through 180 degrees.
Key Features
-
Dual open sockets for RAM C Size 1.5" ball components
-
Center section provides 360-degree rotation
-
Swivel joint provides 180-degree forward-and-back adjustment
-
Multiple pivot points allow a wide range of positioning
-
High-strength composite construction
-
Supports up to 4 lbs during standard use and 3 lbs during heavy-duty use
Use Cases & Compatibility
This standalone socket arm connects compatible RAM C Size ball bases, device holders, and adapters. Its additional center rotation and swivel adjustment are useful when a standard double socket arm does not provide the required positioning range.
Compatible with a variety of RAM C Size 1.5" ball mounting components.
Specifications
Ball Size: C Size 1.5" Ball
Overall Length: 8.29"
Socket-to-Socket Length: 7.27"
Center Rotation: 360 degrees
Swivel Joint Adjustment: 180 degrees
Weight Capacity: Standard Use: 4 lbs; Heavy-Duty Use: 3 lbs
Material: High-strength composite
Product Weight: 0.73 lb
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAP-200-2U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
