Description

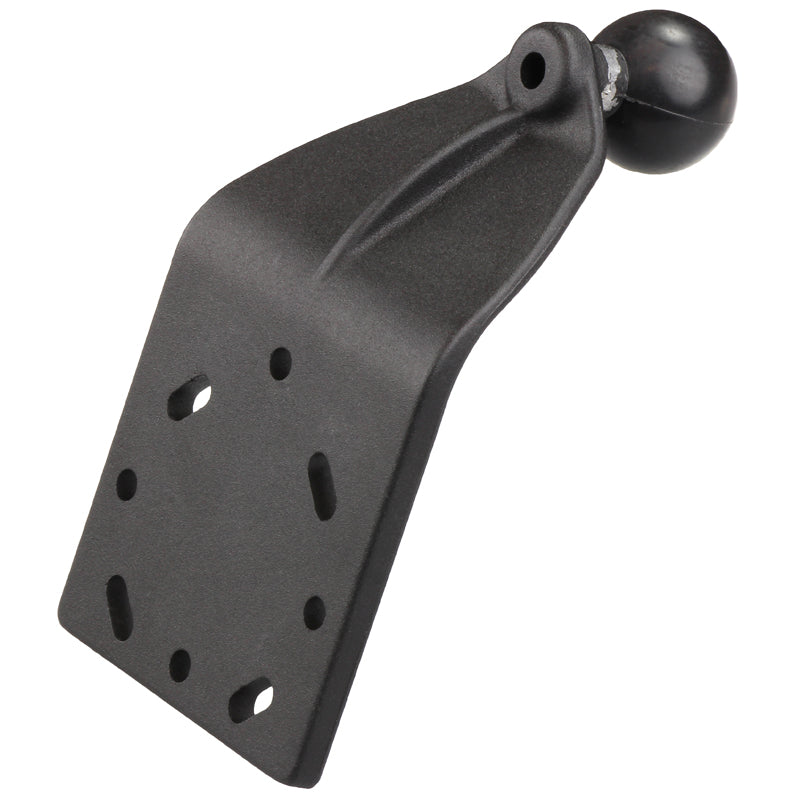

The RAM-B-125BU is a RAM Mounts curved extension base with an integrated B size 1" rubber ball. Originally designed to position a GPS in front of an aircraft yoke, this component can also be used in other mounting applications where extra forward and upward positioning is needed. The 2.5" square mounting plate includes various AMPS hole patterns, allowing it to connect with compatible RAM holders, plates, and components.
Key Features
- Curved extension base with integrated B size 1" RAM rubber ball
- Designed to help position a device forward and upward from the mounting point
- 2.5" square mounting plate includes various AMPS hole patterns
- Originally designed for aircraft yoke GPS positioning, with use in other compatible applications
- Marine-grade aluminum construction for strength and durability
- B size ball works with compatible RAM B size double socket arms
Use Cases & Compatibility
The RAM-B-125BU is designed for use with RAM Mounts B size 1" ball-and-socket components. The integrated 1" ball connects to compatible B size RAM double socket arms, while the 2.5" square extension plate includes various AMPS hole patterns for attaching compatible RAM device holders, plates, and other AMPS-compatible components. The curved extension design is useful when a mounted device needs to be positioned forward or raised above the base location.
Specifications
Ball Size: B Size 1" rubber ball
Material: Marine-grade aluminum
Color: Black
Weight Capacity: Standard Use: 2 lbs; Heavy-Duty Use: 1 lb
Pattern / Hole Spacing: Various AMPS hole patterns
Dimensions: 2.5" square mounting section; connection section extends approximately 2.25" forward at a 45-degree angle from the center of the 1" ball and approximately 1.5" above the 1" ball to the bottom of the connection section
Product Weight: 0.26 lb
Additional Details: Curved extension plate design for forward and upward positioning
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-B-125BU
Warranty: Manufacturer's lifetime warranty
