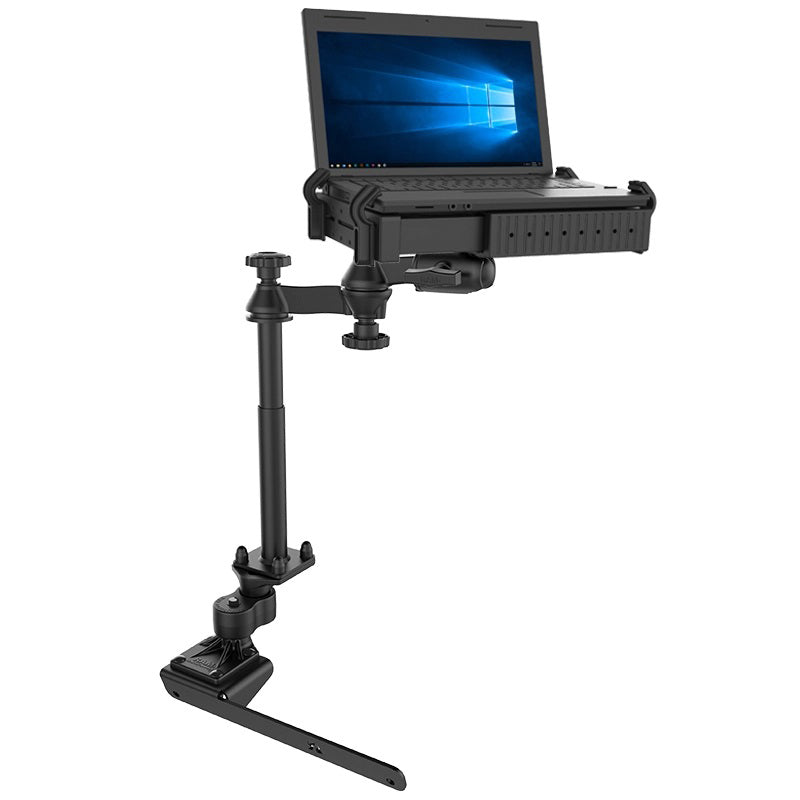

The RAM-VB-178A-SW1 is a vehicle-specific RAM® laptop mounting kit designed for select Ram trucks. This legacy laptop mount installs to the passenger-side seat rails using existing vehicle hardware, helping avoid drilling into the vehicle floor.
The telescoping pole adjusts from 12" to 18", while the dual swing arm system provides articulation and reach for positioning the laptop inside the vehicle. The included legacy RAM® Tough-Tray™ laptop holder accommodates many 10" to 17" laptops, measured diagonally, with adjustable retaining arms for a secure fit.
This bundle is a practical mounting solution for work trucks, fleet vehicles, service vehicles, and other mobile work environments where a secure laptop workstation is needed inside the vehicle. Vehicle compatibility is provided in the compatibility tab below.
Key Features
• No-drill laptop mounting kit installs using the passenger-side seat rail hardware
• Telescoping pole adjusts from 12" to 18" for flexible positioning
• Dual swing arms provide articulation and up to 12" of reach
• Includes legacy RAM® Tough-Tray™ laptop holder for many 10" to 17" laptops
• Powder-coated steel, marine-grade aluminum, and high-strength composite construction
Use Cases & Compatibility
This RAM® laptop mount is well suited for commercial trucks, service vehicles, fleet vehicles, public safety support vehicles, and mobile workstations where a laptop needs to be securely positioned inside the cab.

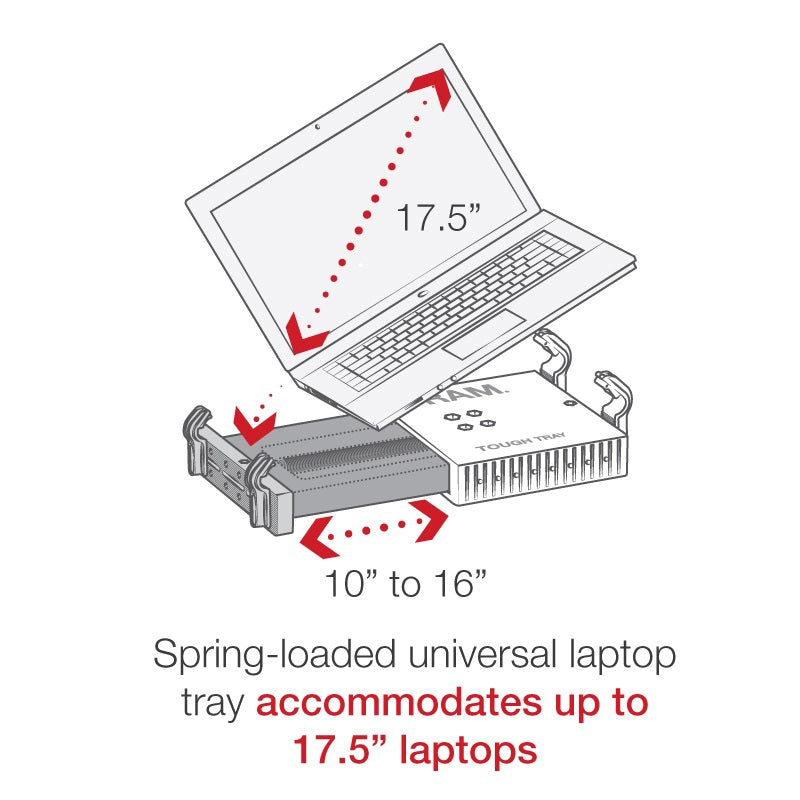

The included legacy Tough-Tray™ laptop holder fits many laptops from 10" to 17", measured diagonally. Laptop fit can vary based on thickness, port locations, and overall device design.
Vehicle fitment is listed in the vehicle compatibility tab below. Please review the compatibility information before ordering to confirm proper vehicle fit.
Specifications
Product Type: Vehicle laptop mount kit
Material: Powder-coated steel, marine-grade aluminum, high-strength composite
Ball Size: C Size 1.5" RAM® rubber ball
Weight Capacity: Not specified by manufacturer
Mount Type: No-drill passenger seat rail mount
Vehicle Base: Vehicle-specific base for select Ram trucks
Device Holder: Legacy RAM® Tough-Tray™ laptop holder
Height Adjustment: 12" to 18" telescoping range
Swing Arm Reach: Up to 12"
Tray Width Range: 10" to 16"
Side Arm Clamp Height: 0.5" to 1.75"
Tray Depth: 10"
Tray Thickness: 2.125"
Seat Bolt Distance: 13.25" center to center
Product Weight: 16.0 lb
Additional Information: The low-profile base is designed to help limit intrusion into the passenger-side leg space. It is also designed to avoid interference with factory-installed levers, consoles, 4WD levers, and trucks equipped with power take-off, or PTO.
What’s Included

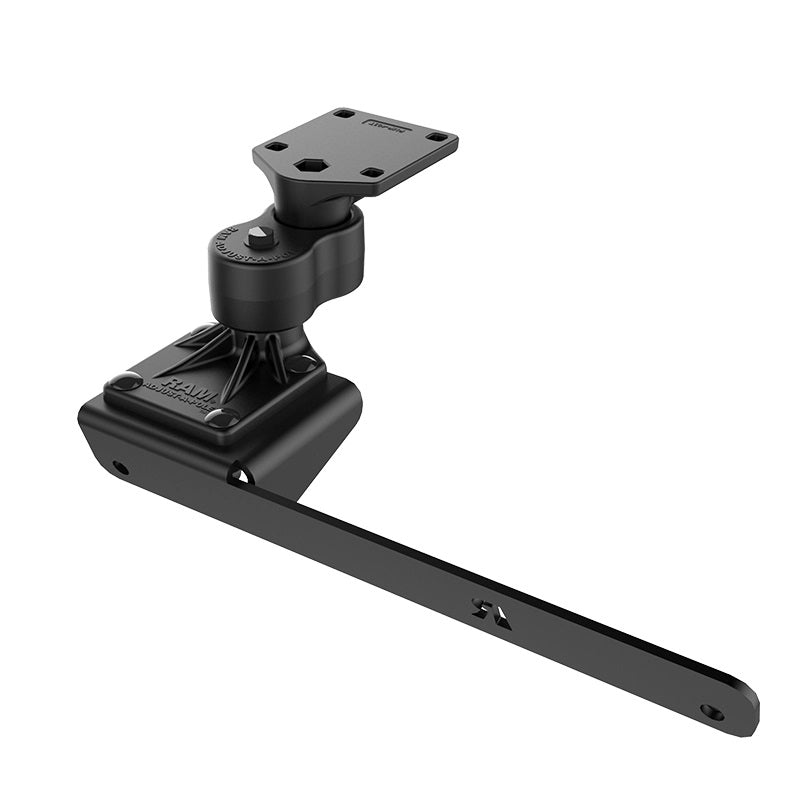

• RAM® vehicle-specific no-drill base
• Telescoping pole assembly

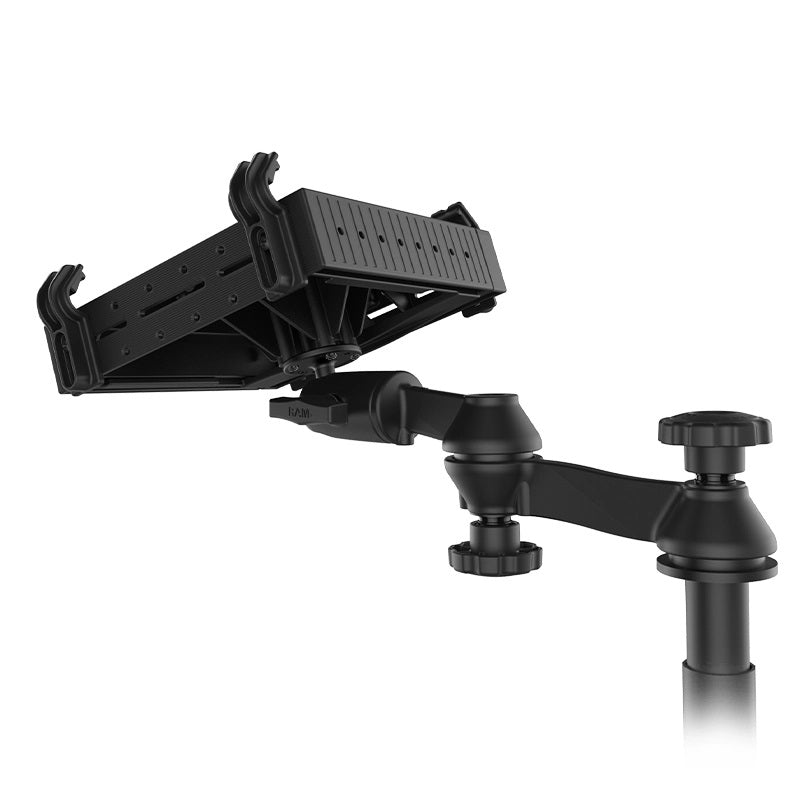

• Dual swing arm assembly

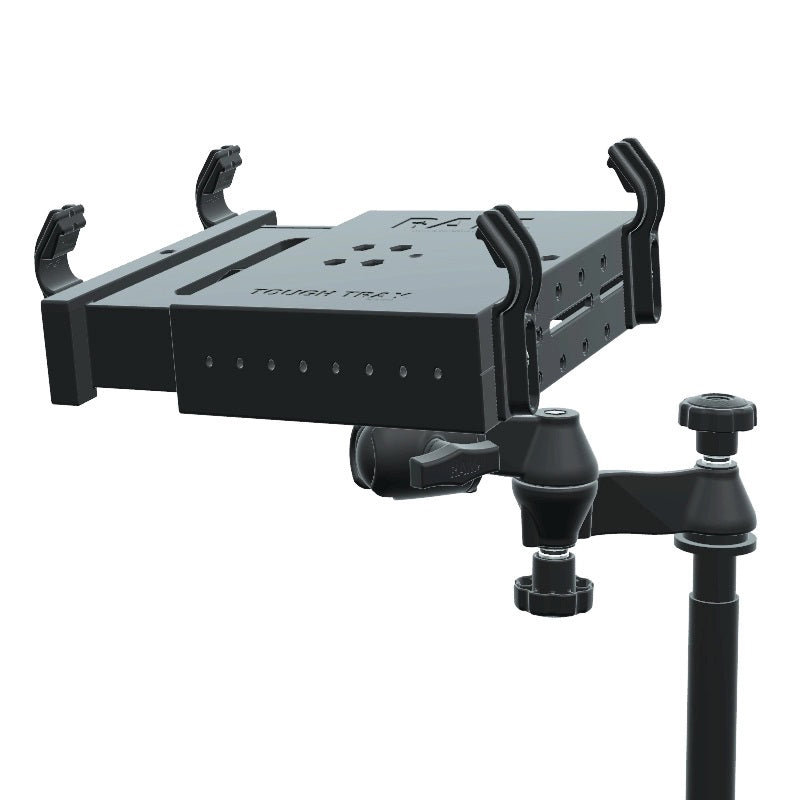

• Legacy RAM® Tough-Tray™ laptop holder
• Assembly hardware
• Two M8-1.25 x 60mm hex bolts
• Two 3/4" stand-offs
• Two 5/16" flat washers
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-VB-178A-SW1
Warranty: Manufacturer’s lifetime warranty
Gadget Mounts is an Authorized RAM Mounts Dealer.
