Description

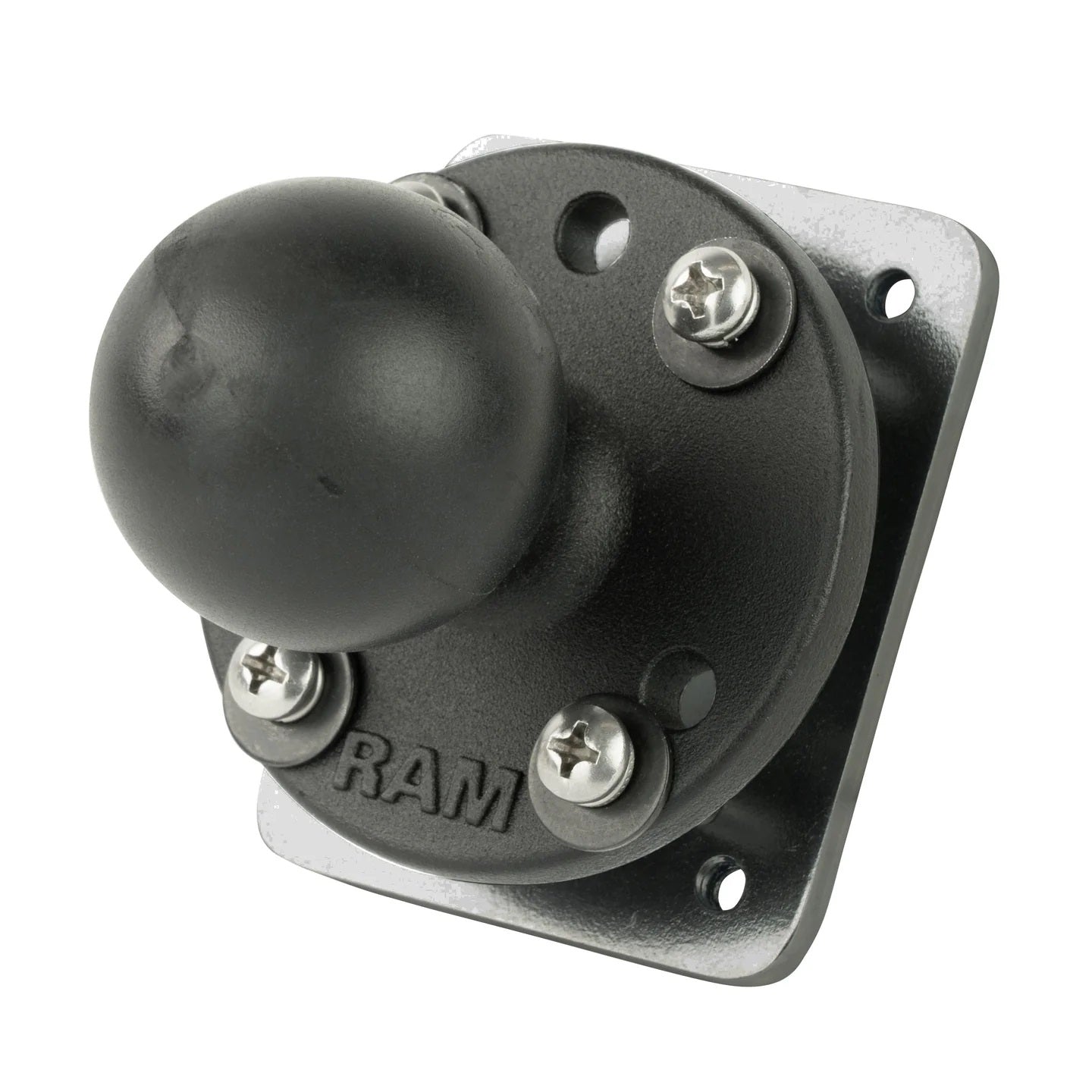

The RAM-202-225-2U provides a secure drill-down mounting point for dashboards, consoles, work surfaces, and other flat mounting locations. It combines a C Size 1.5" Ball with a 2.5" round plate and a steel backing plate to reinforce the mounting surface.
The round base supports both the standard four-hole AMPS pattern and a three-hole 120-degree pattern, making it compatible with a wide range of RAM mounting components and installation layouts.
Key Features
-
C Size 1.5" Ball connects with compatible RAM C Size socket arms
-
2.5" round drill-down mounting plate
-

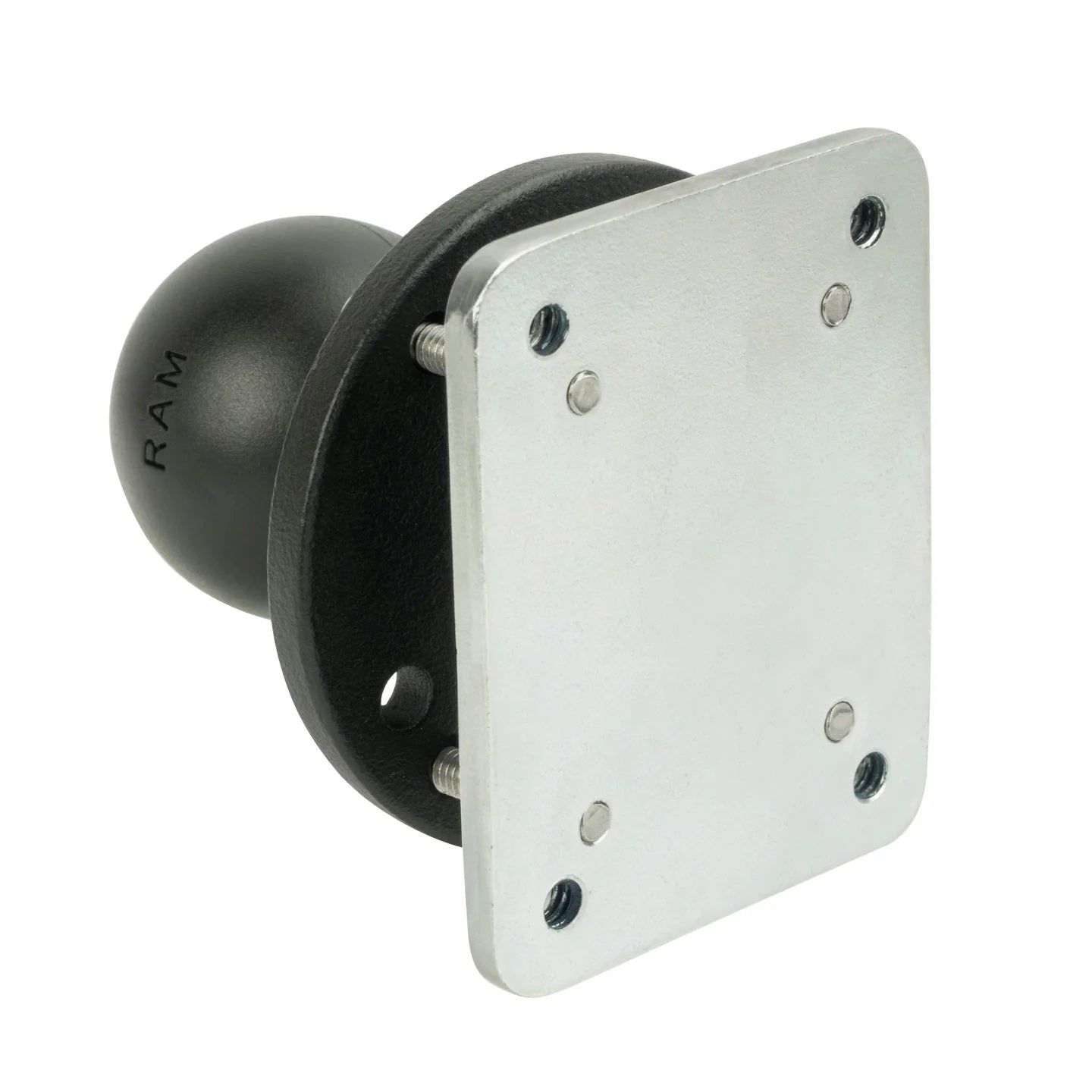

Includes a steel backing plate for added mounting-surface support
-
Supports four-hole AMPS and three-hole 120-degree mounting patterns
-
Rubber ball-and-socket design helps absorb vibration and allows adjustable positioning
-
Marine-grade aluminum and steel construction
-
Includes mounting hardware
Use Cases & Compatibility

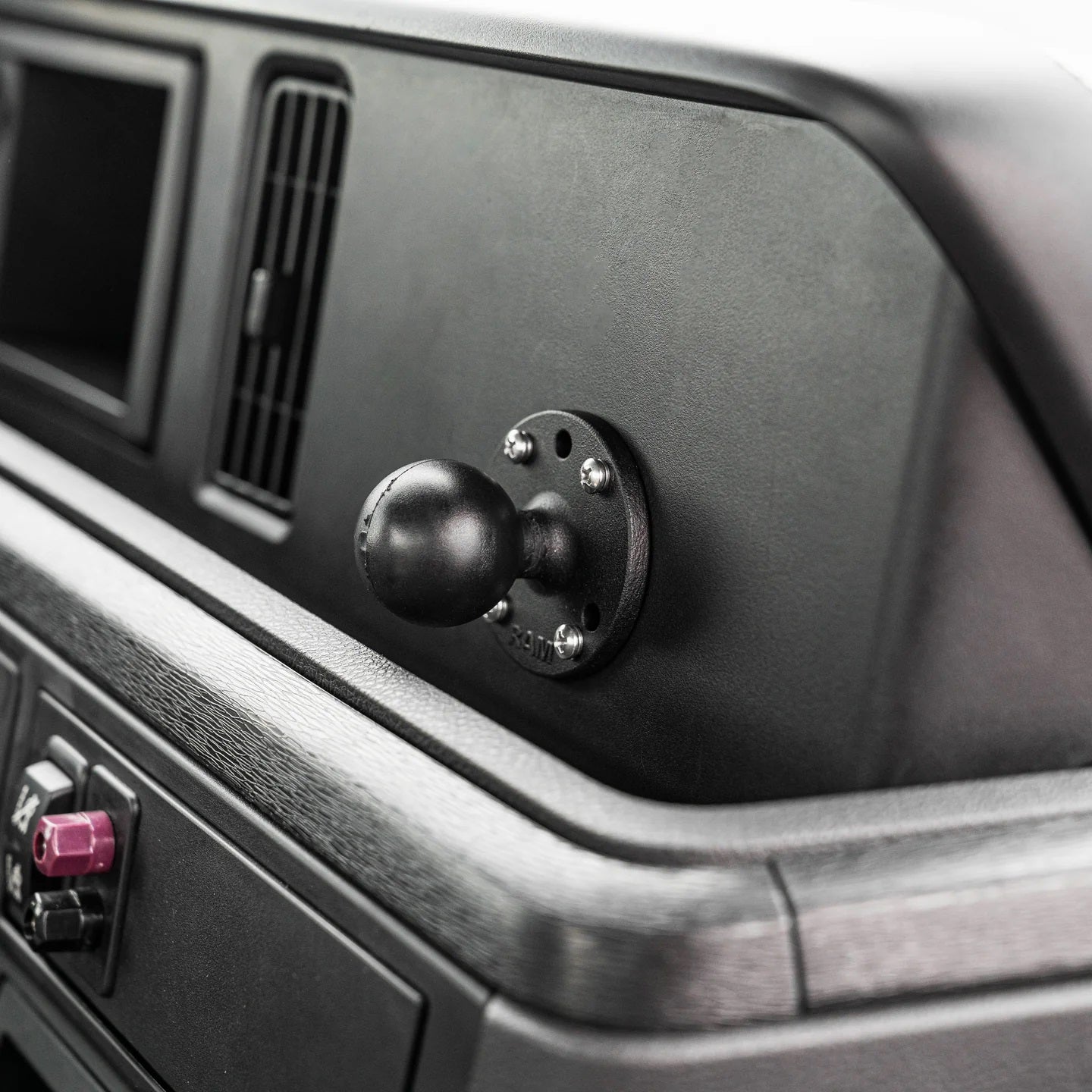

Designed for permanent mounting on dashboards, consoles, workstations, equipment panels, and other flat surfaces where additional backing support is beneficial.
Compatible with RAM C Size socket arms and mounting components. The round plate supports the four-hole AMPS pattern as well as a three-hole 120-degree mounting pattern.
Specifications
Ball Size: C Size 1.5" Ball
Round Plate Diameter: 2.5"
Backing Plate Dimensions: 2.10" x 2.60"
Hole Pattern: Four-hole AMPS, 1.181" x 1.496"
Additional Hole Pattern: Three-hole 120-degree, 1.812" diameter
Material: Marine-grade aluminum and steel
Weight Capacity: Standard Use: 4 lbs.; Heavy-Duty Use: 3 lbs.
Product Weight: 0.5 lb.
What’s Included
-
RAM C Size ball base with 2.5" round plate
-
2.10" x 2.60" steel backing plate
-
Four #8-32 x 1" machine screws
-
Four #8 split lock washers
-
Four #8 flat washers
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-202-225-2U
Warranty: Manufacturer’s lifetime warranty.
Gadget Mounts is an Authorized RAM Mounts Dealer.
