Description

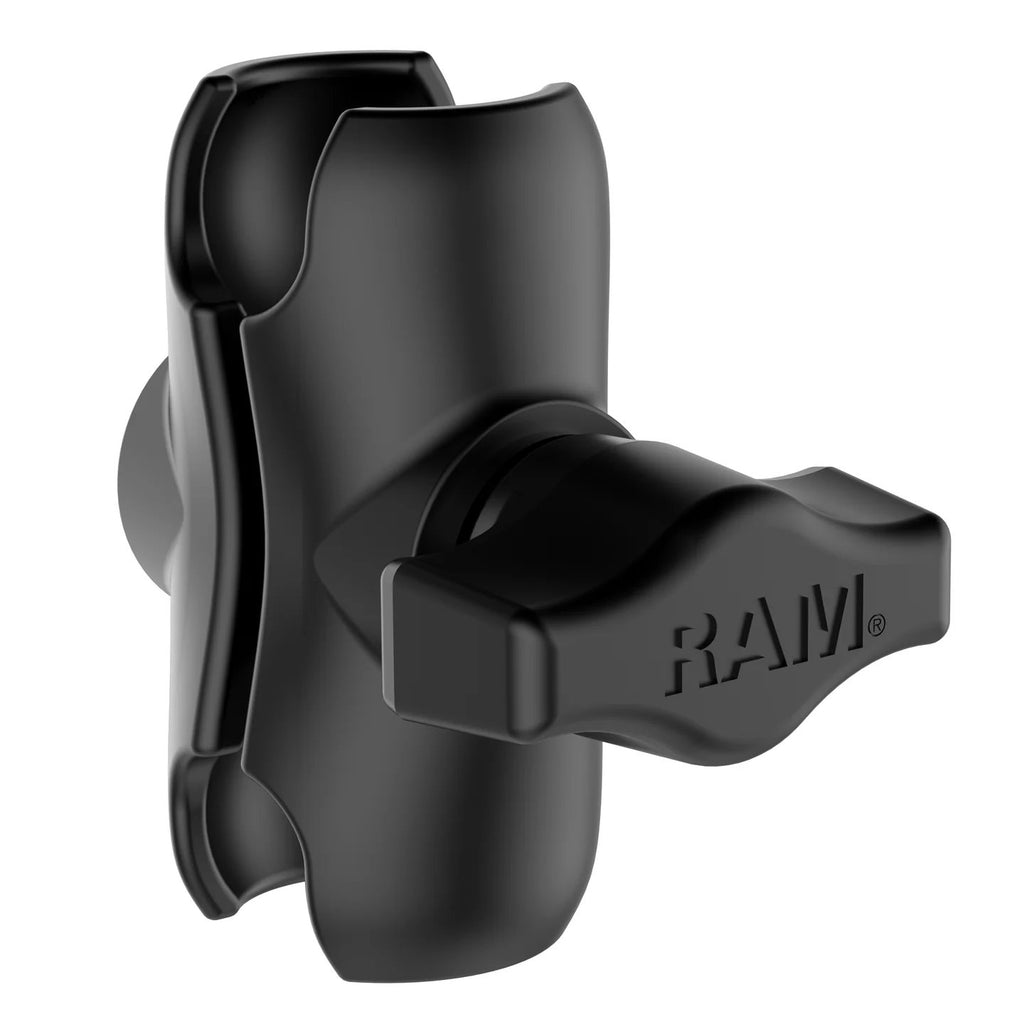

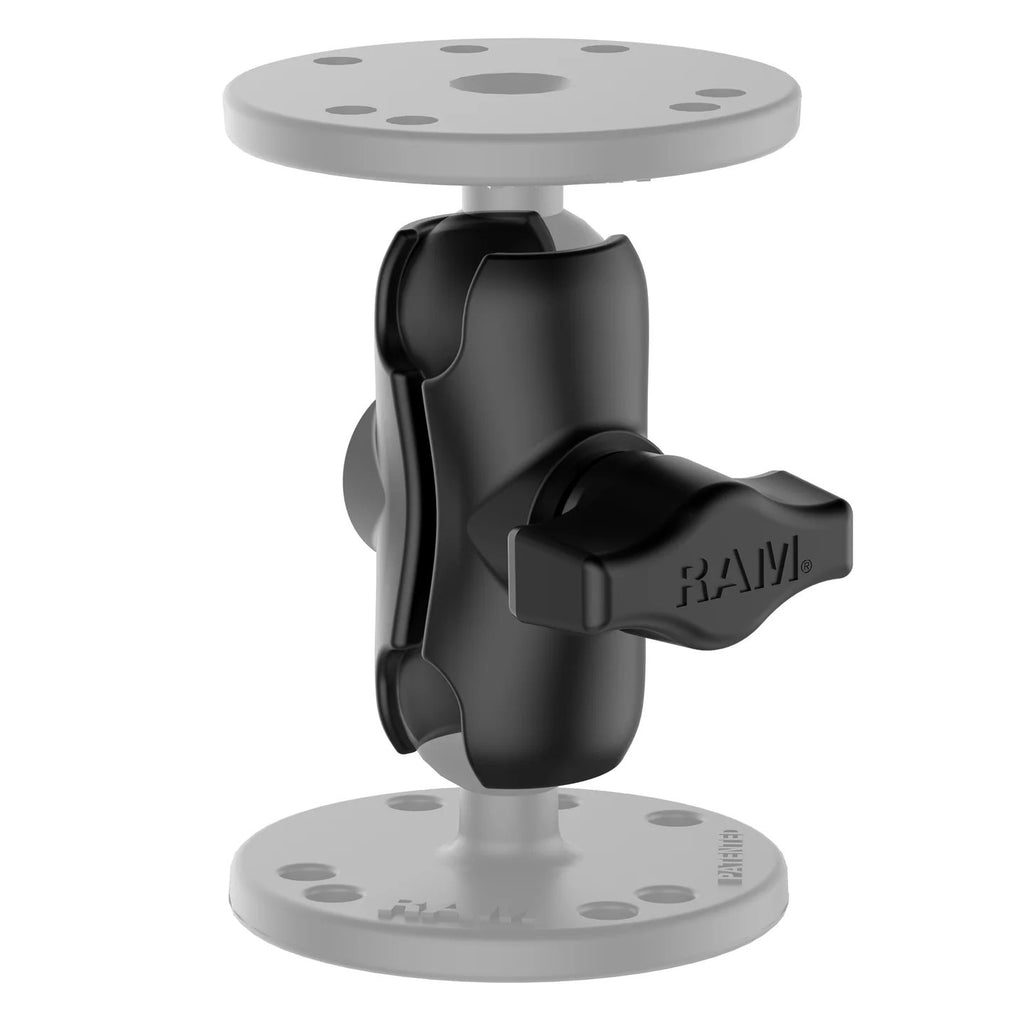

The RAM® short double socket arm is a B size (1") mounting system component designed to connect two RAM ball bases or adapters in a compact, low-profile configuration.
Built as part of the RAM Mounts ball and socket system, this short arm provides a secure connection between components while allowing near-infinite adjustability. The 1" B size compatibility makes it ideal for lighter-duty mounting setups, while the compact 2.42" overall length keeps installations tight and unobtrusive—perfect for space-constrained environments.
Commonly used in vehicles, motorcycles, and industrial applications, this arm is engineered from marine-grade aluminum to withstand vibration, harsh weather, and demanding daily use. The easy-adjust knob allows for quick positioning and locking of your device at the ideal viewing angle.
Gadget Mounts is an Authorized RAM Mounts Dealer, ensuring you receive genuine products backed by the full manufacturer warranty.
Key Features
• Short, low-profile double socket arm design for compact mounting setups
• Compatible with all RAM B size (1") ball components

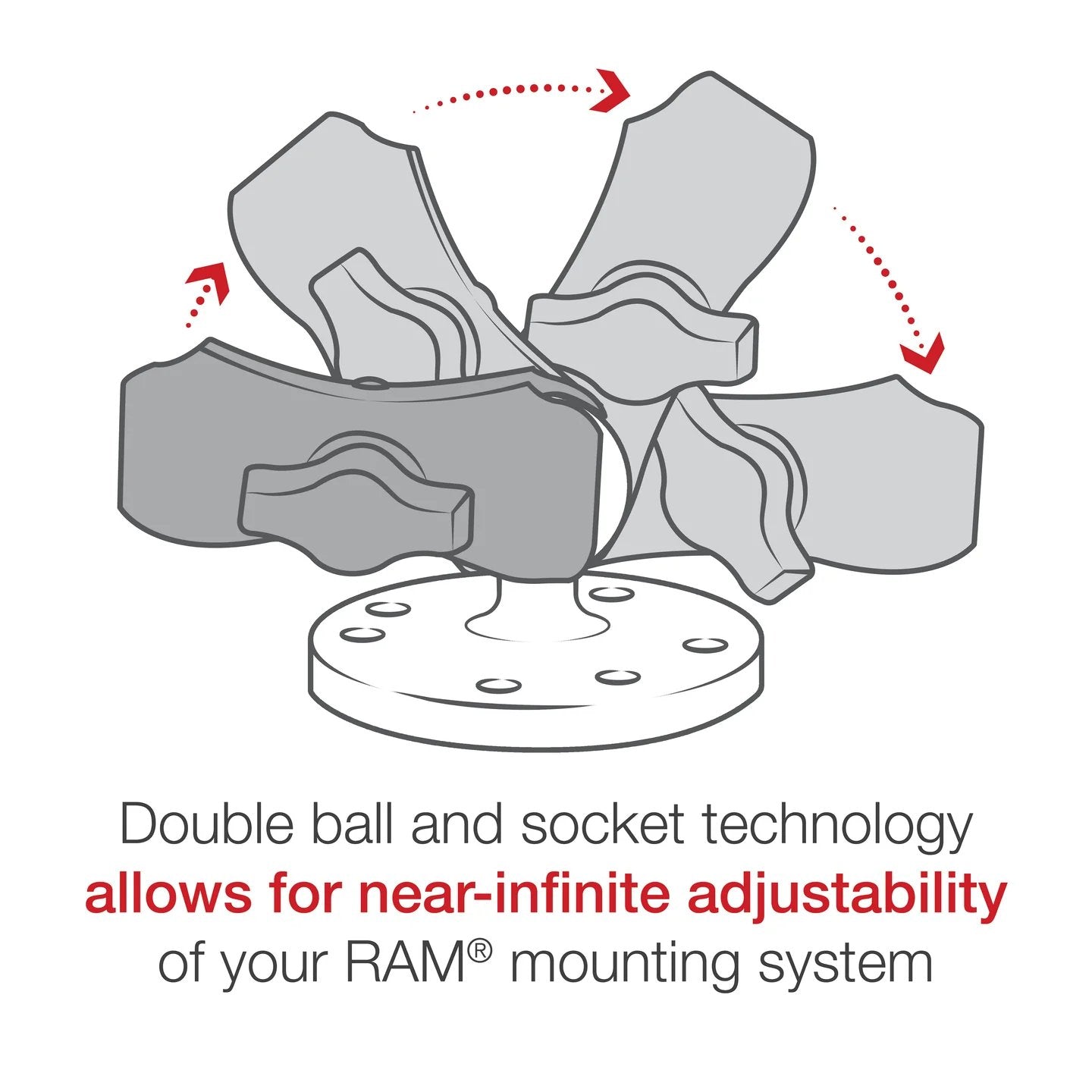

• Double ball and socket system allows near-infinite adjustability
• Easy-to-tighten knob for secure positioning and quick adjustments
• Constructed from powder-coated, marine-grade aluminum for durability
Use Cases & Compatibility
Ideal for applications where space is limited but adjustability is still required:
• Fleet vehicles and service trucks
• Motorcycles and powersports
• Off-road and utility vehicles
• Marine electronics and navigation systems
• Industrial equipment and control panels
Compatible with any RAM Mounts B size (1") ball base, device holder, or adapter.
Specifications
Mount Details
Ball Size: B Size (1")
Arm Length: Short
Technical Specifications
Product Weight: 0.22 lbs

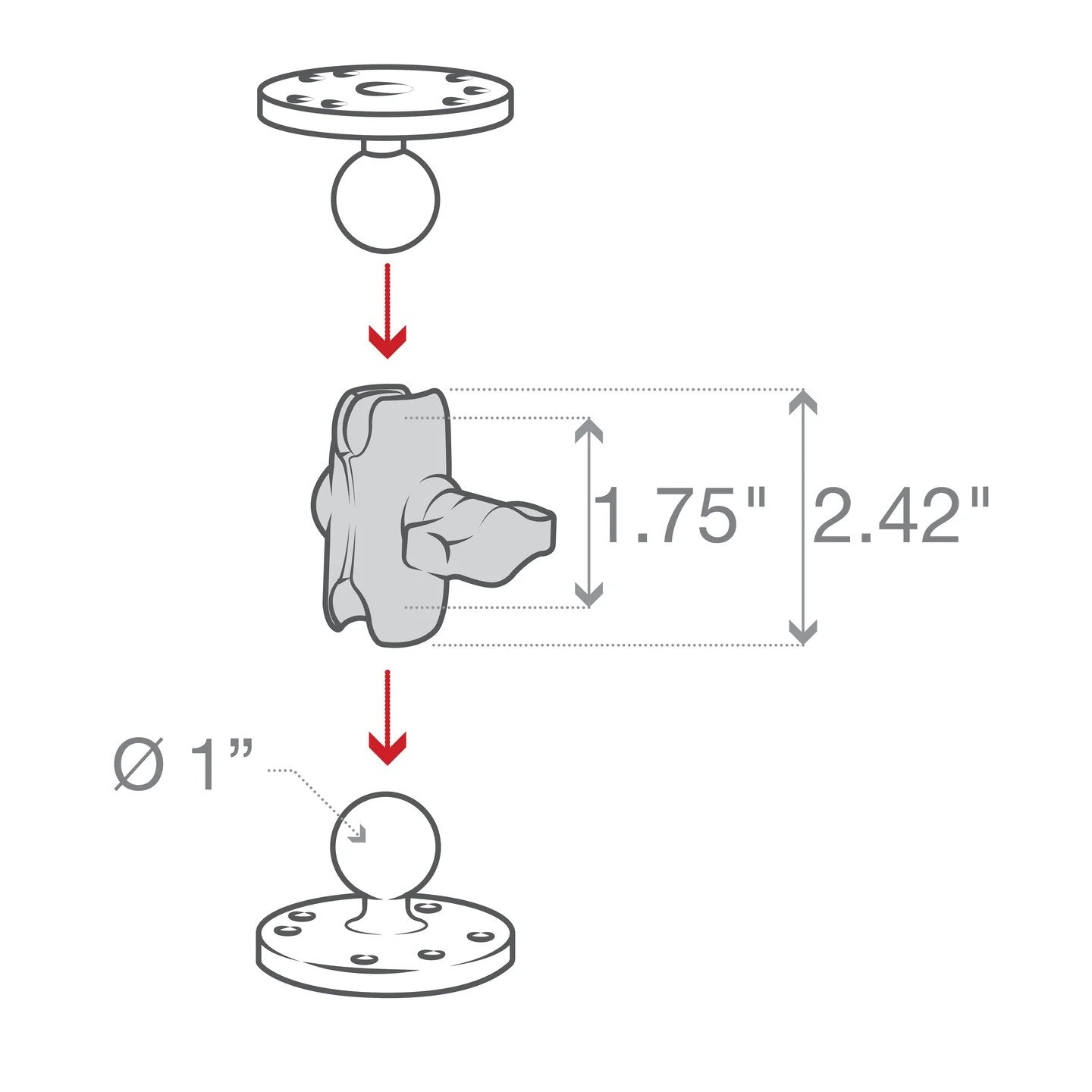

Arm Dimensions:
• Overall Length: 2.42"
• Socket-to-Socket Length: 1.75"
Weight Capacity:
• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb
Material: Marine grade-aluminum
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-B-201U-A
Warranty: Lifetime
