Description

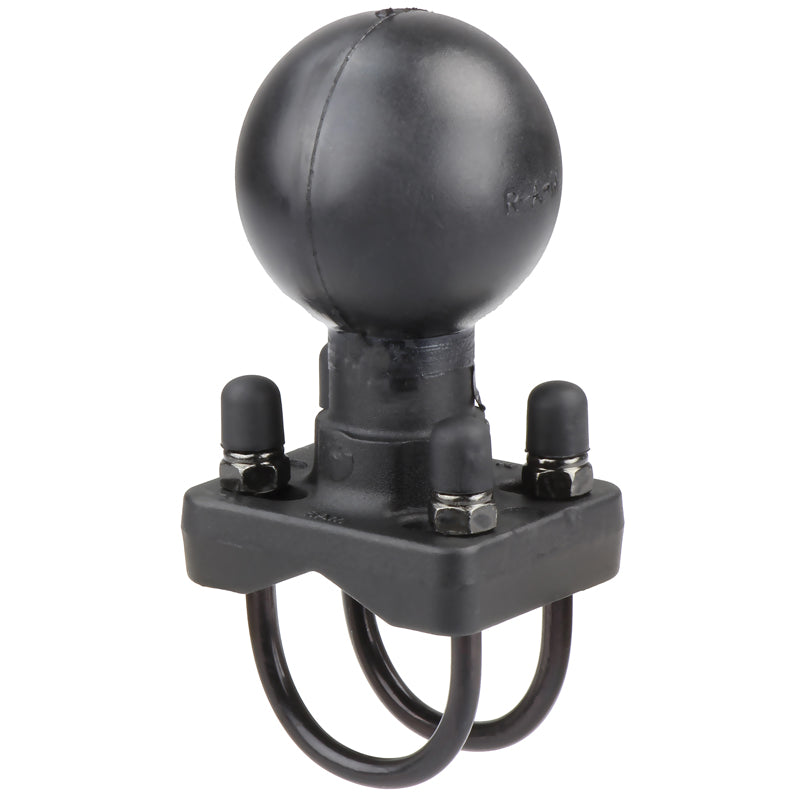

The RAM-D-235-1U provides a secure mounting point on round rails measuring 1.25" to 1.5" in diameter. Its double U-bolt design installs around the rail without requiring holes to be drilled into the mounting surface.
An integrated RAM D Size 2.25" ball connects with compatible D Size socket arms. The marine-grade aluminum base and zinc-coated U-bolts are suited for demanding vehicle, equipment, industrial, and marine applications.
Key Features
-
Double U-bolt base fits rails from 1.25" to 1.5" in diameter
-
Integrated RAM D Size 2.25" ball
-
Compatible with RAM D Size socket arms and mounting components
-
Marine-grade aluminum base
-
Includes zinc-coated U-bolts, Nylock nuts, and rubber caps
-
Supports up to 6 lbs under standard-use conditions
Use Cases & Compatibility
This rail base is suitable for adding a RAM mounting point to compatible roll cages, equipment frames, structural tubing, vehicle rails, and other round posts within the specified diameter range.
Compatible with a variety of RAM D Size 2.25" socket arms and mounting components.
Specifications
Ball Size: D Size 2.25" Ball
Clamp Range: 1.25"–1.5" diameter
Material: Marine-grade aluminum
Weight Capacity: Standard Use: 6 lbs; Heavy-Duty Use: 5 lbs
Product Weight: 0.85 lb
What’s Included
-
Double U-bolt base with D Size 2.25" ball
-
(2) 1/4"-20 U-bolts for 1.25"–1.5" rails
-
(4) 1/4"-20 Nylock nuts
-
(4) rubber caps
Brand & Warranty
Brand: RAM Mounts
Manufacturer Part Number: RAM-D-235-1U
Warranty: Manufacturer’s lifetime warranty.
