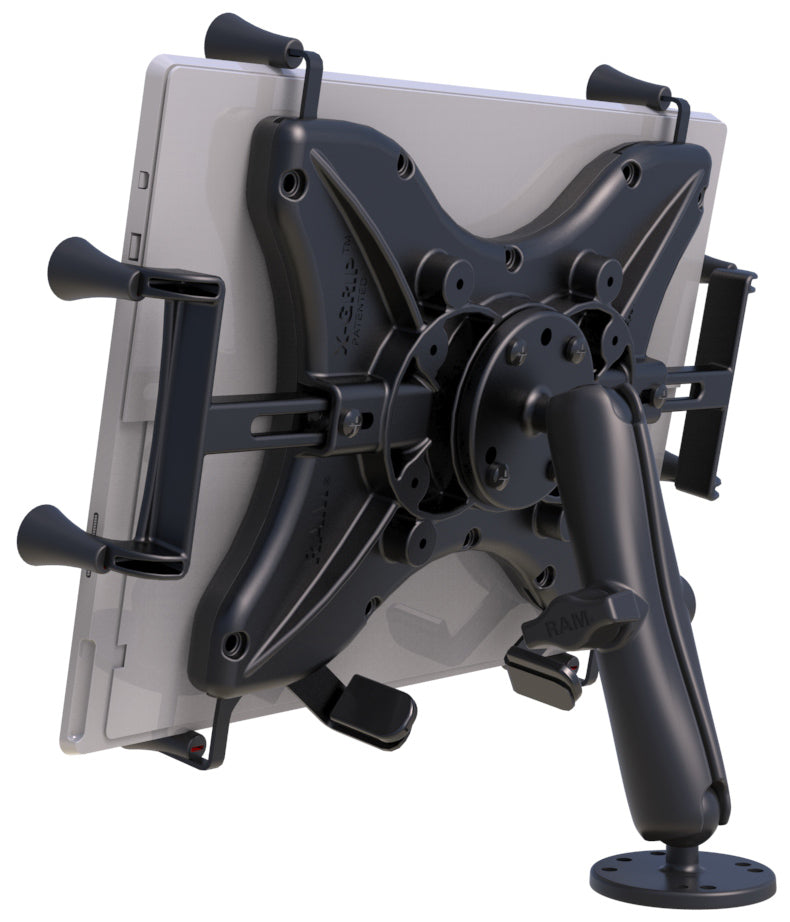

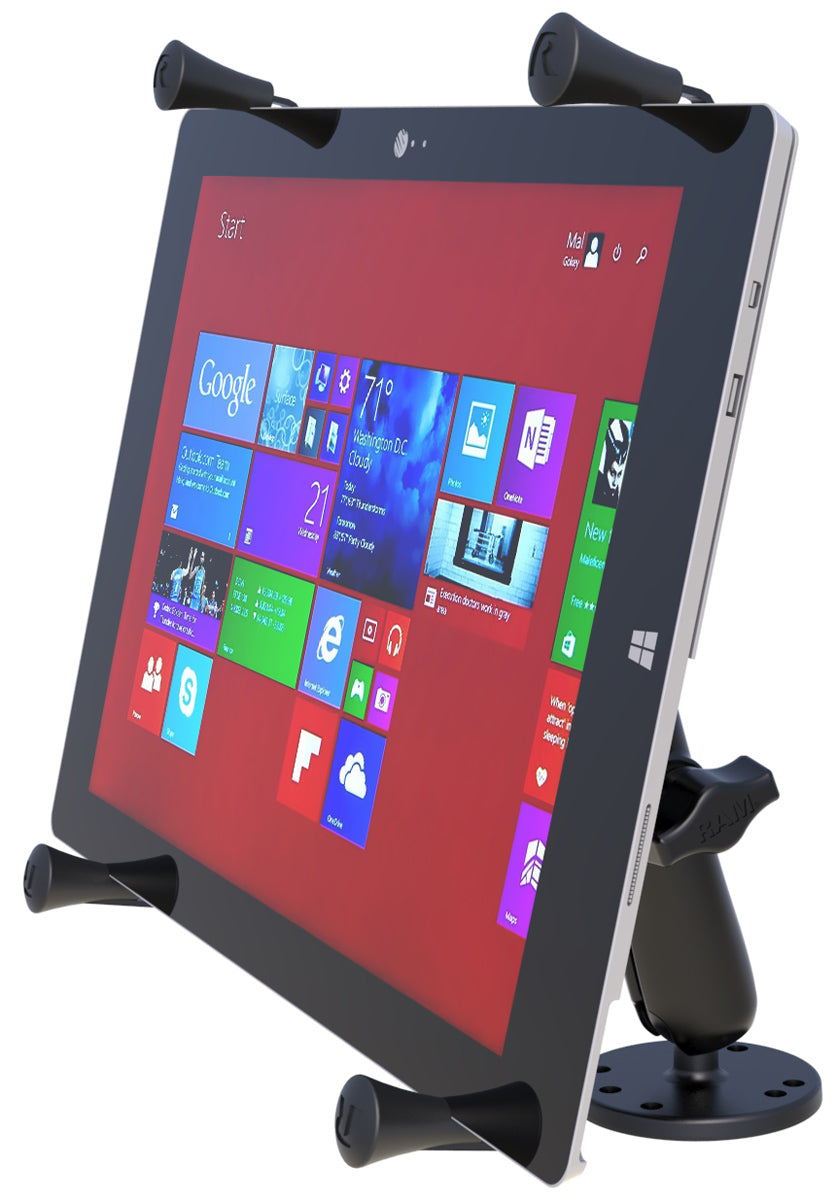

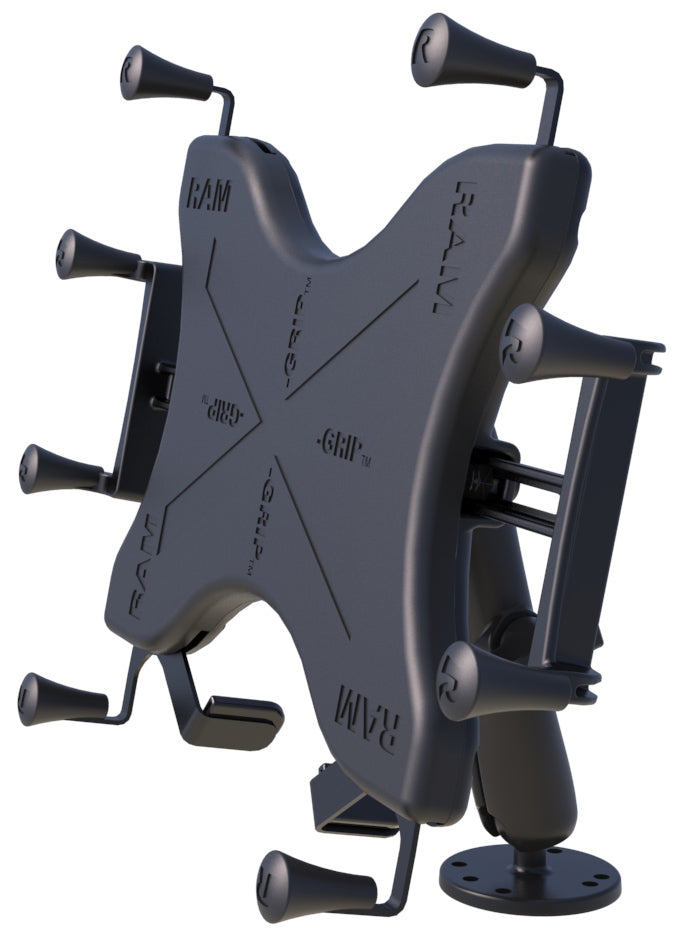

RAM® X-Grip® Drill-Down Double Ball Mount for 12"–13" Tablets | Heavy-Duty AMPS Base Tablet Holder

Upgrade your tablet mounting setup with the RAM® X-Grip® Drill-Down Double Ball Mount for 12–13 inch tablets, a rugged and highly adjustable solution ideal for fleets, work vehicles, service trucks, marine consoles, and industrial environments. Built around RAM’s trusted B-size ball-and-socket system, this mount delivers exceptional holding strength, smooth adjustability, and long-lasting durability.

This kit features two 2.5" AMPS round bases, a long double-socket arm for extended reach, and the popular X-Grip® spring-loaded cradle designed to secure larger tablets—with or without cases. The expandable stainless-steel grip arms and rubber-capped tips hold your device firmly while maintaining full access to all ports and buttons. A built-in bottom support keeps your tablet from shifting during vibrations or off-road use.

Ideal for users who need a professional-grade tablet mounting solution, the X-Grip® accommodates devices between 7.25"–8.75" wide, up to 0.875" deep, and 10.25" long (with supports). Whether you’re running navigation apps, fleet management software, point-of-service tools, or field data collection, this heavy-duty drill-down mount ensures your tablet stays exactly where you need it.

Shop with confidence—Gadget Mounts is an Authorized RAM Mounts Dealer.

---

Key Features

• Long double-socket arm (6" overall length) offers extended reach and highly adjustable viewing angles.

• Two 2.5" round AMPS bases with 1" balls provide a secure, drill-down mounting platform.

• X-Grip® spring-loaded cradle expands and contracts for a precision fit on most 12–13" tablets.

• Rubber-coated grip tips ensure a strong, stable, scratch-free hold.

• Quick-release rear knobs allow fast device loading and removal.

• Bottom support keeper adds stability for larger devices and rough environments.

• Full port access maintained for charging, data, and peripheral connections.

• Marine-grade aluminum and stainless steel construction resists corrosion and performs in demanding conditions.

• RAM® B-size system rated for up to 2 lbs (standard use) or 1 lb (heavy-duty use).

• Proudly made in the USA.

---

Specifications

• Overall Weight: 1.91 lbs

• Hole Patterns:

  • 4-Hole AMPS: 1.181" x 1.496"

  • 3-Hole 120°: 1.812" diameter

• Compatible Device Dimensions:

  • Width: 7.25" – 8.75"

  • Max Depth: 0.875"

  • Max Length (with supports): 10.25"

---

Brand & Warranty

• Brand: RAM Mounts

• Part Number: RAM-B-101-C-UN11U

• Warranty: Manufacturer’s lifetime warranty

---
