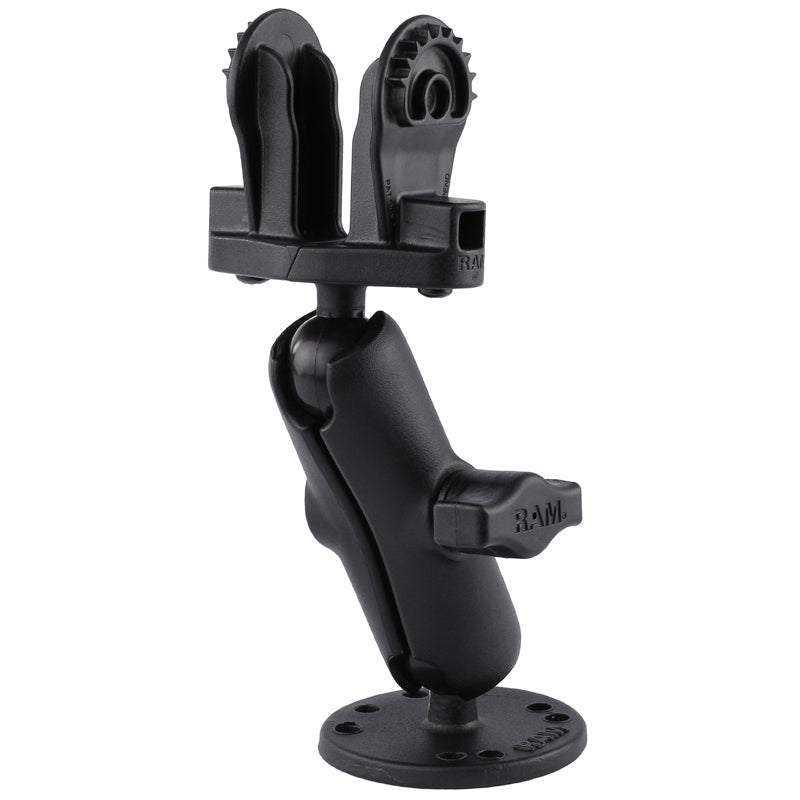

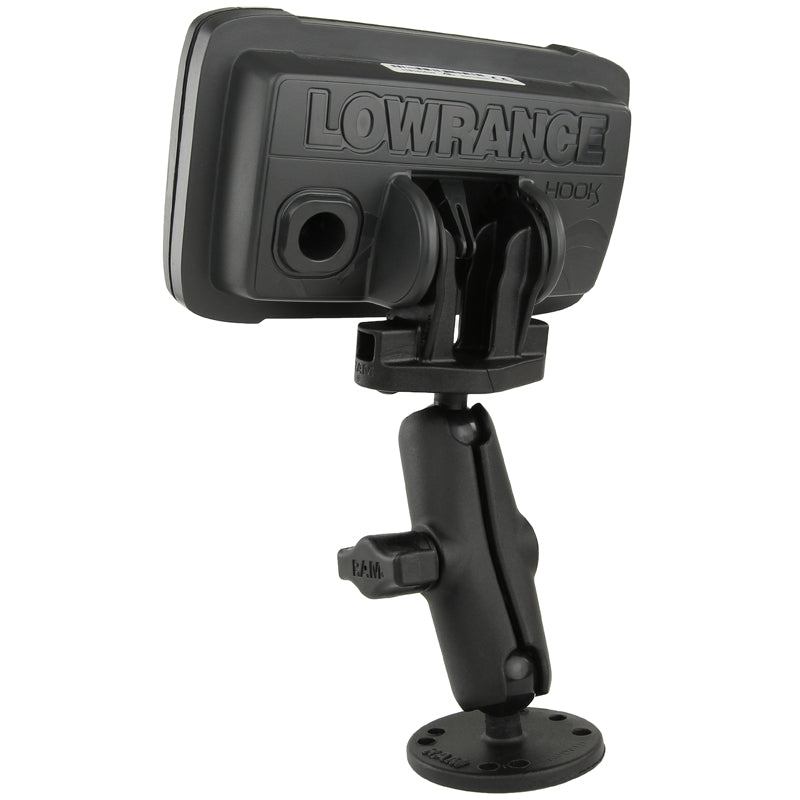

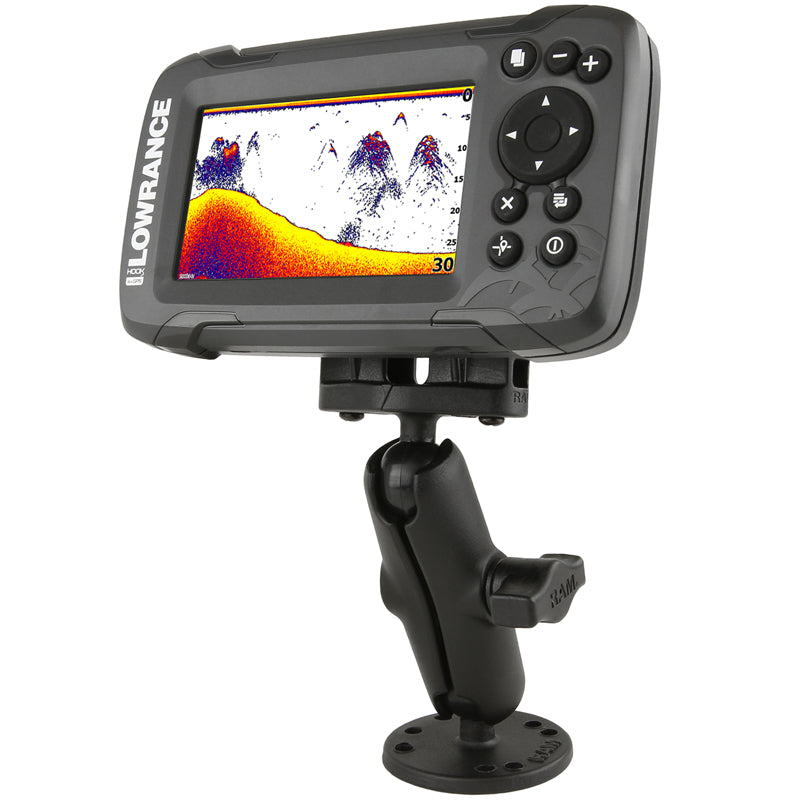

Upgrade your Lowrance fish finder mounting setup with the RAM® 1" Ball Drill-Down Mount Kit, engineered for light-duty freshwater use on kayaks, inflatables, and small boats. This B size (1") RAM Mounts solution replaces the factory Lowrance bracket with a more durable, adjustable, and vibration-dampening ball-and-socket system.
Built from marine-grade aluminum and high-strength composite, this mount delivers rock-solid stability while allowing quick, tool-free adjustments to dial in the perfect viewing angle—even in rough water.
As an Authorized RAM Mounts Dealer, Gadget Mounts supplies genuine RAM® components backed by a manufacturer’s lifetime warranty.
Features
• Replaces the factory Lowrance mount with a RAM® ball-and-socket solution
• 1" B size rubber ball dampens vibration and protects electronics
• Standard aluminum double socket arm allows precise, tool-free adjustment
• Marine-grade aluminum and high-strength composite construction
• Ideal for kayaks, inflatables, and light-duty freshwater applications
• Made in the USA
• Backed by the RAM® lifetime warranty
What’s Included
• Round 2.5" diameter base with 1" rubber ball and AMPS hole pattern
• Standard double socket arm
• Custom Lowrance adapter (replaces the factory mounting solution)
Assembly Hardware Included
Drill-down mounting hardware is not provided due to the wide variety of mounting surfaces. Hardware selection depends on your application. Common fastener sizes include #8, #10, M4, and M5 screws.
Specifications
Overall Height (Fully Straight): 5"
Socket-to-Socket Length: 3"
Arm Overall Length: 3.73"
Hole Pattern:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter
Base Diameter: 2.5"
Ball Size: B Size (1")
Weight Capacity:
• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb
Materials:
• Marine-grade aluminum
• High-strength composite
Product Weight: 0.62 lbs
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-B-101-LO12
Warranty: Manufacturer’s Lifetime Warranty
