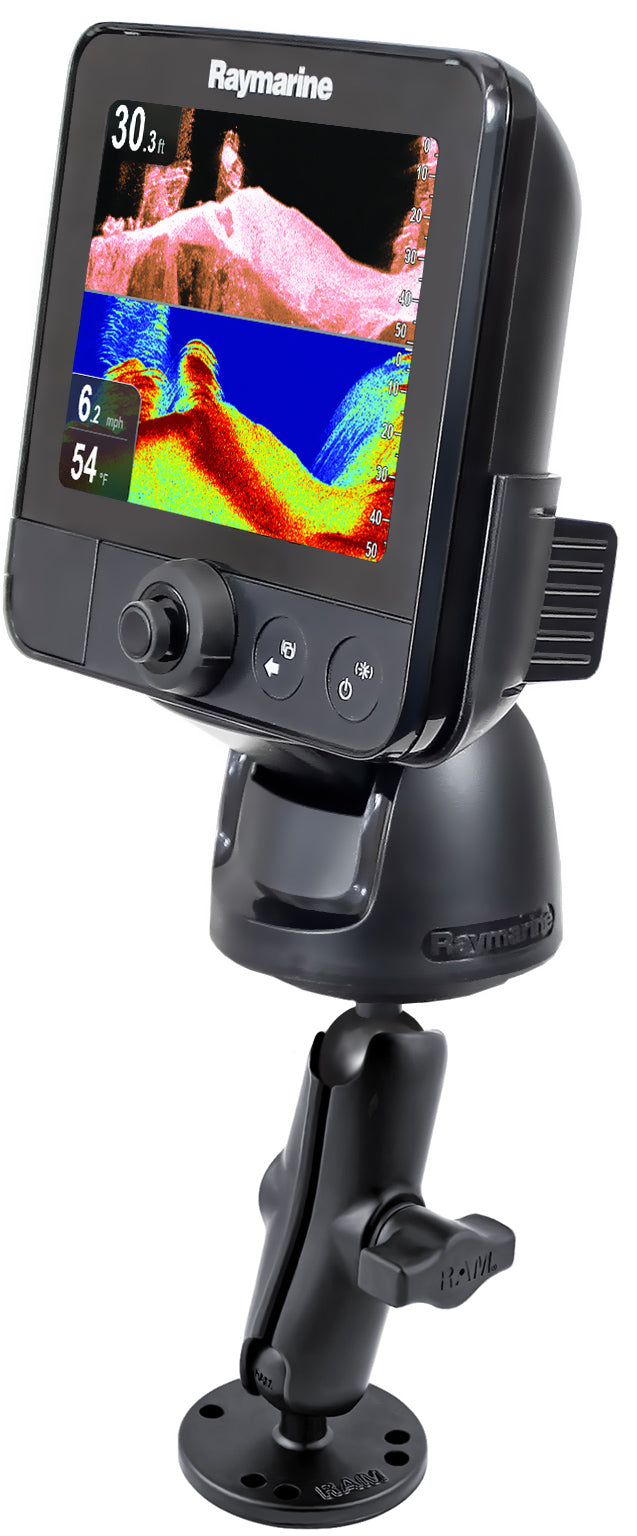

Secure your Raymarine Dragonfly Sonar/GPS with a rugged, vibration-dampening drill-down mounting solution built for marine environments. The RAM® Drill-Down Double Ball Mount for Raymarine Dragonfly (RAM-B-101-RYM1) features dual 2.5" round bases with the universal AMPS hole pattern and a standard-length double socket arm for precise positioning on boats, kayaks, and marine consoles.
Designed with the RAM® 1" B Size rubber ball and socket system, this mount delivers nearly infinite adjustability while absorbing shock and vibration — keeping your fishfinder or chartplotter stable in rough water conditions.
Key Features
• Custom-fit drill-down mount for Raymarine Dragonfly Sonar/GPS units
• Dual 2.5" round bases with universal AMPS hole pattern
• 1" B Size rubber ball system reduces vibration and protects electronics
• Standard-length double socket arm for flexible viewing angles
• Mounts horizontally or vertically
• Marine-grade aluminum with powder-coated finish for corrosion resistance
• Ideal for boats, center consoles, bass boats, kayaks, and marine dashboards
Use Cases & Compatibility

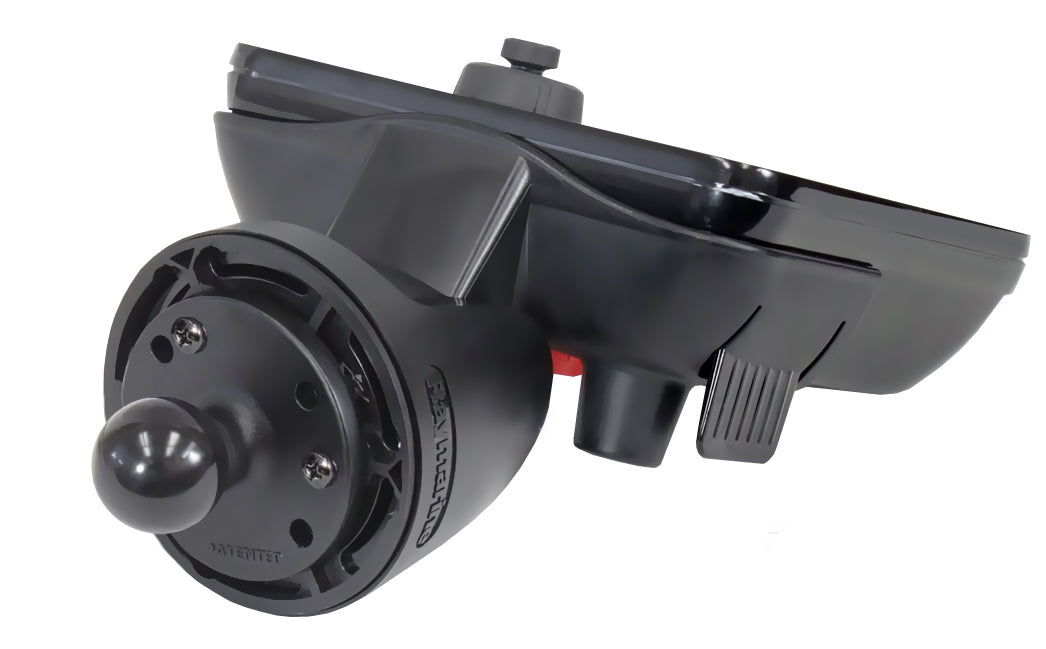

Engineered specifically to attach directly to the bottom of Raymarine Dragonfly fishfinder and GPS units using the included hardware.
Perfect for:
• Fishing boats
• Kayaks with electronics
• Center consoles
• Small watercraft dashboards
• Marine electronics installations requiring a drill-down base
This mount connects directly to compatible Dragonfly units and provides AMPS pattern compatibility for additional marine device configurations.

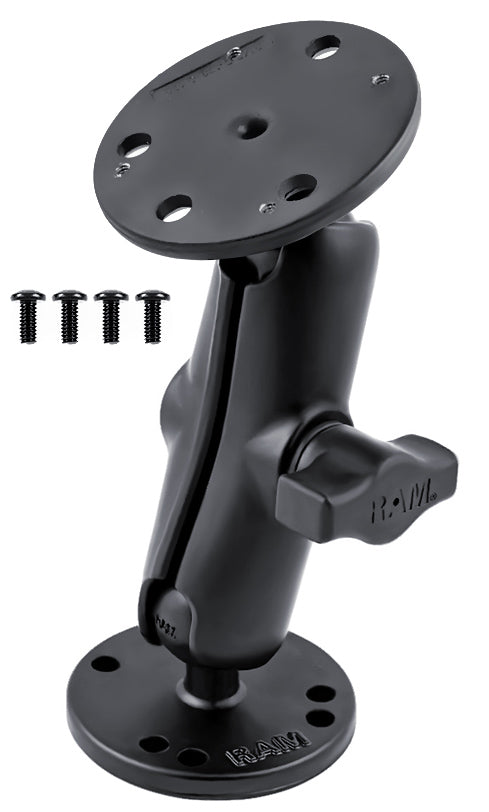

What’s Included
• (2) 2.5" Round Bases with 1" B Size Ball
• (1) Standard Length Double Socket Arm
• (3) #8-32 x 3/4" Machine Screws
• (3) #8-32 Stainless Steel Nylock Nuts
• (3) .312" x .187" Shoulder Washers
Specifications
Ball Size: B Size (1")
Socket-to-Socket Arm Length: 3"
Overall Arm Length: 3.73"
Overall Height (Fully Straight): 5"
Base Diameter: 2.5"
Hole Pattern:
- 4-Hole AMPS: 1.181" x 1.496"
- 3-Hole 120°: 1.812" Diameter
Weight Capacity:
- Standard Use: 2 lbs
- Heavy-Duty Use: 1 lb
Materials: Marine-grade aluminum
Finish: Powder-coated
Product Weight: 0.61 lbs
Mount Type: Drill-down
Installation Notes
This is a permanent drill-down mounting solution. One base attaches directly to the bottom of compatible Raymarine Dragonfly devices using the included hardware. The opposite base secures to a flat surface such as a console or mounting plate using the AMPS hole pattern. Drill-down hardware not included.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-B-101-RYM1
Warranty: Manufacturer's Lifetime Warranty
