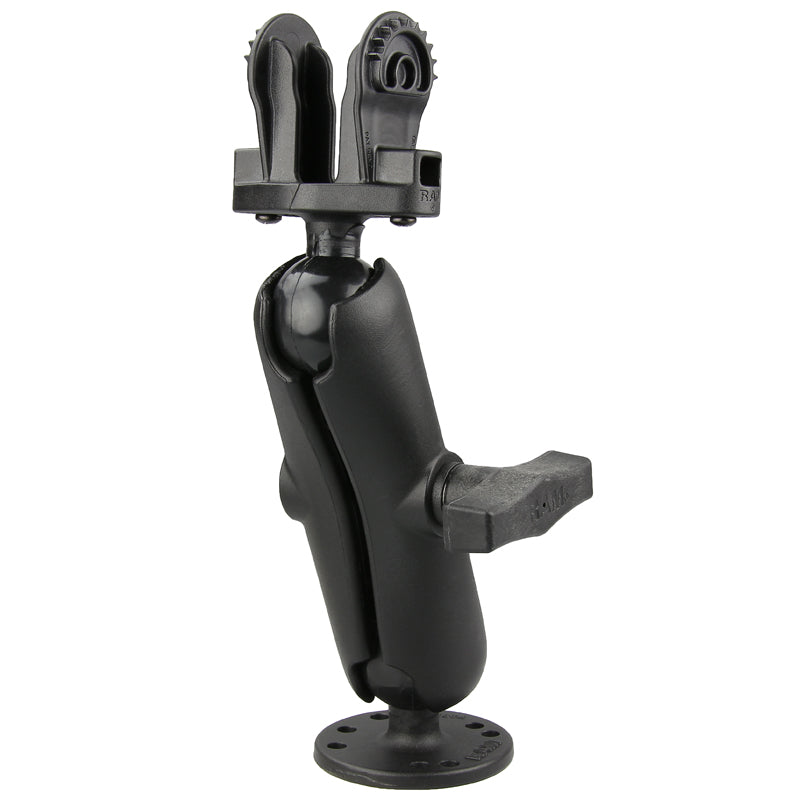

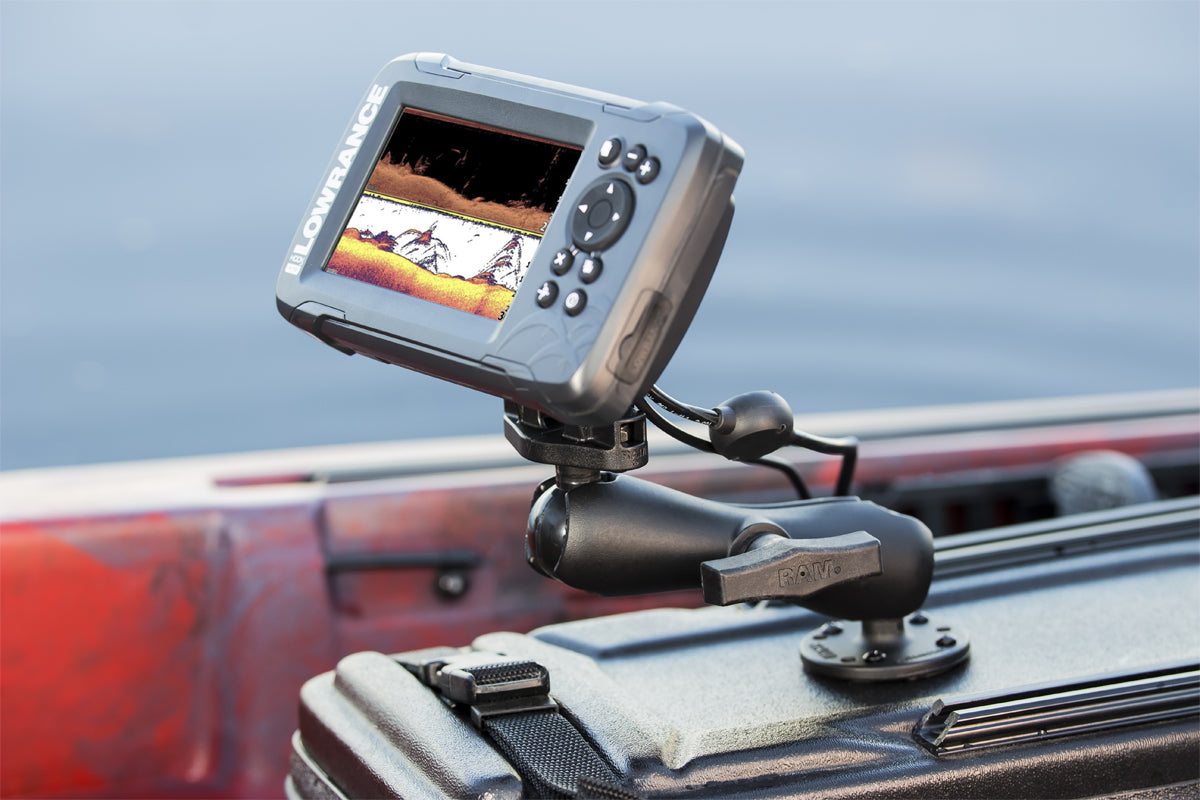

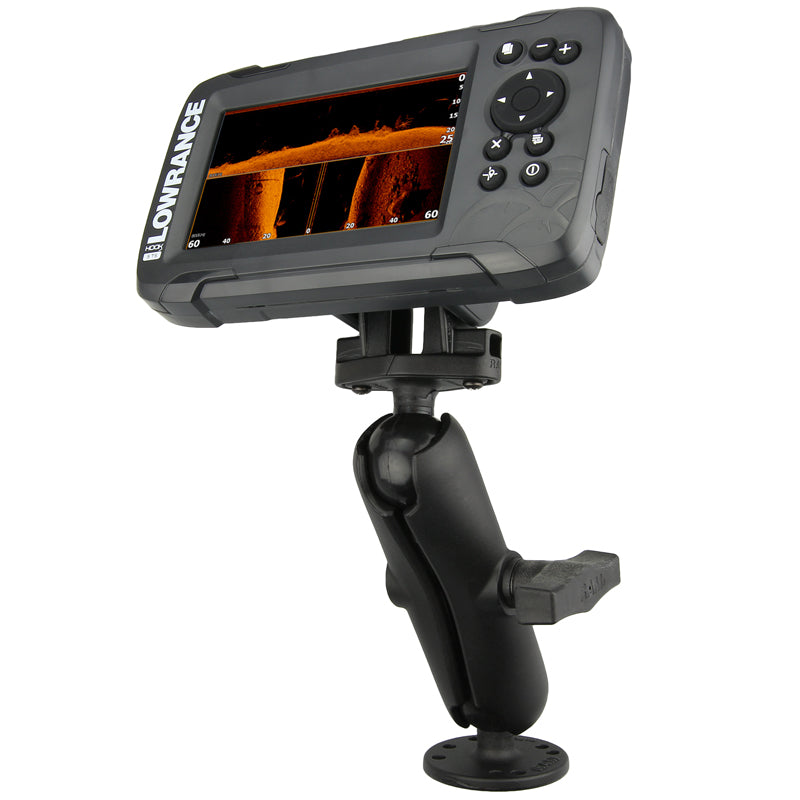

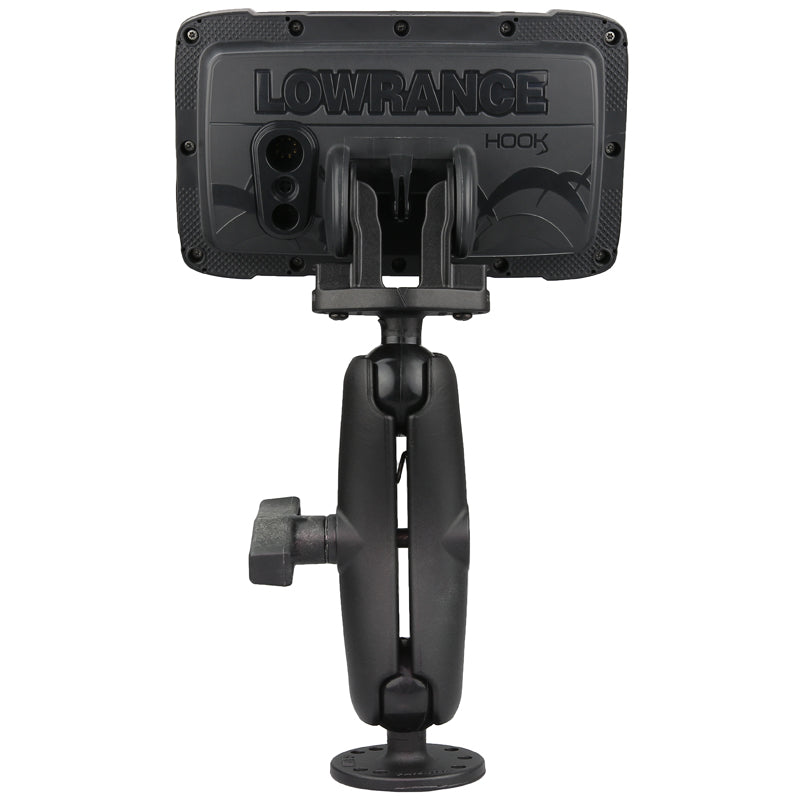

Upgrade your Lowrance fish finder with a rugged, confidence-inspiring mounting solution built for real-world freshwater conditions. The RAM® C Size (1.5") Heavy-Duty Mount replaces the factory bracket on compatible Lowrance Eagle, Hook², and Reveal units, delivering superior stability, vibration damping, and full adjustability on boats, kayaks, and inflatables.
Designed around the trusted RAM® ball and socket system, this mount lets you dial in the perfect viewing angle while keeping your electronics locked in place—even in chop, wake, or rough launches. Constructed from marine-grade aluminum and high-strength composite, it’s built to handle demanding environments without corrosion or flex.
Buy with confidence from Gadget Mounts—an Authorized RAM Mounts Dealer.
Features
• Heavy-duty C size (1.5") ball and socket system for superior holding power
• Direct-fit adapter replaces the factory Lowrance mount
• Medium double socket arm allows quick, tool-free angle adjustments
• Round base with industry-standard AMPS hole pattern
• Designed for boats, kayaks, and inflatable watercraft
• Marine-grade aluminum and high-strength composite construction
• Made in the USA
• Backed by RAM® Mounts lifetime warranty
Specifications
Ball Size: C Size (1.5")
Overall Height: 7.35"
Socket-to-Socket Length: 4.66"
Arm Type: Medium double socket arm
Base Diameter: 2.5"
Hole Pattern:
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" diameter
Weight Capacity:
• Standard Use: 4 lbs
• Heavy-Duty Use: 3 lbs
Materials:
• Marine-grade aluminum
• High-strength composite
Product Weight: 1.2 lbs
What’s Included
• Round drill-down base with 1.5" rubber ball
• Medium double socket aluminum arm
• Lowrance-specific adapter with integrated 1.5" ball
Note: Drill-down mounting hardware is not included. Common fastener sizes are #8, #10, M4, and M5 depending on mounting surface.
Brand and Warranty
Brand: RAM Mounts
Part Number: RAM-101-LO12
Warranty: Manufacturer’s Lifetime Warranty
