Description

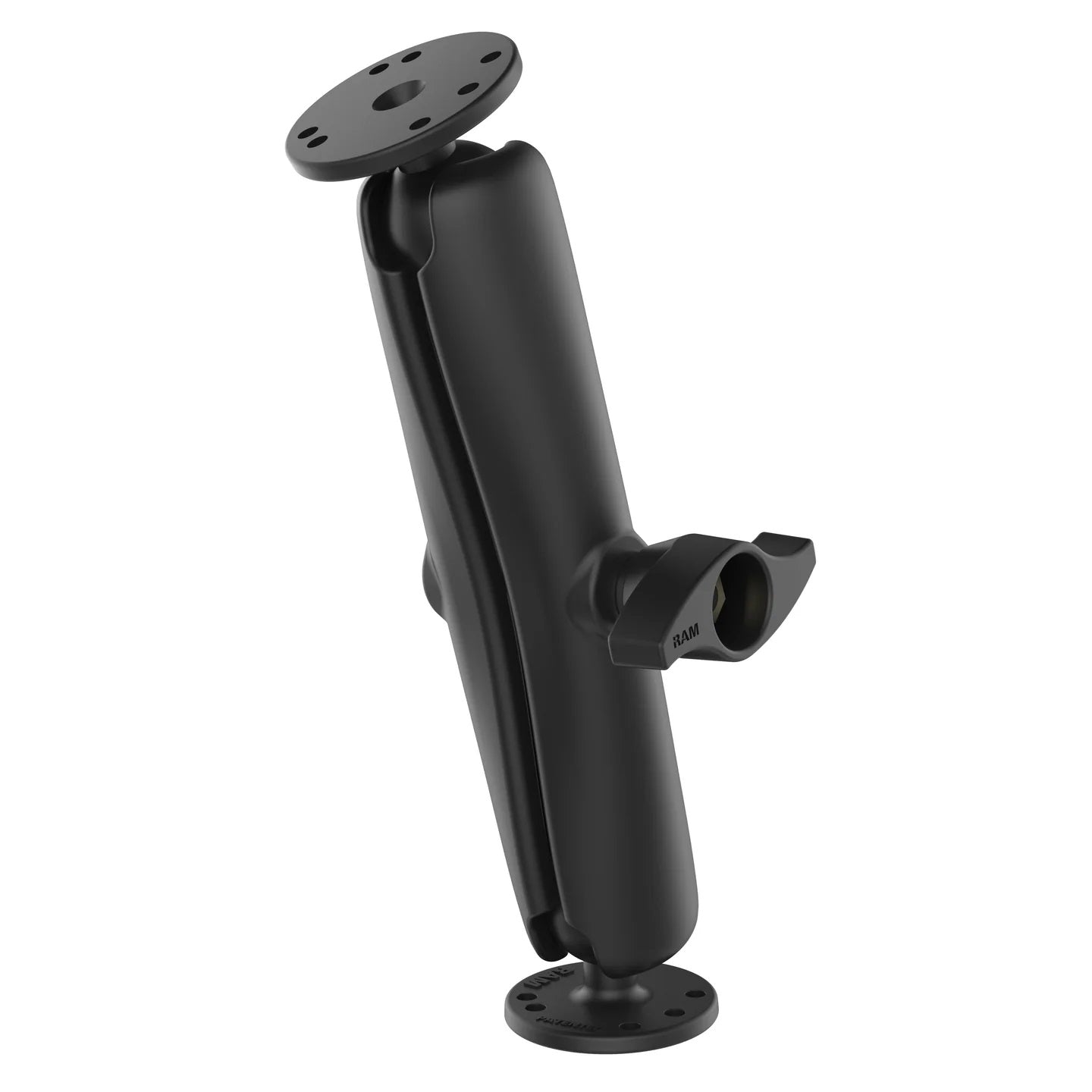

The RAM® RAM-101MU-D is a rugged C Size double ball mounting system featuring a long 9" double socket arm, metal adjustment knob, and two 2.5" round bases. The 1.5" RAM® rubber ball-and-socket system provides a wide range of adjustment, making it easy to position attached equipment at the desired viewing or operating angle.
Built from marine-grade aluminum, this mount is designed for demanding applications where strength, reach, and vibration resistance are important. Both round bases feature standard mounting hole patterns for integration with compatible equipment and mounting surfaces.
Key Features
-
Long C Size double ball mounting system with 9" double socket arm
-
Durable metal adjustment knob
-
Two 2.5" diameter round mounting bases
-
RAM® C Size 1.5" rubber ball-and-socket system
-
Dual adjustment points for flexible positioning
-
Helps absorb shock and vibration
-
Marine-grade aluminum construction
-
Supports up to 4 lbs in standard-use applications
Use Cases & Compatibility
Designed for applications requiring a durable, adjustable mounting structure with substantial reach. The round bases support standard AMPS and 3-hole mounting patterns for integration with compatible mounting surfaces, equipment, and RAM® mounting components.
Specifications
-
Overall Height: 10.85"
-
Socket-to-Socket Length: 8"
-
Plate Size: 2.5" diameter
-
Hole Pattern: 4-Hole AMPS — 1.181" x 1.496"
-
Additional Hole Pattern: 3-Hole 120-Degree — 1.812" diameter
-
Ball Size: C Size 1.5" Ball
-
Weight Capacity — Standard Use: 4 lbs
-
Weight Capacity — Heavy-Duty Use: 3 lbs
-
Material: Marine-grade aluminum
-
Product Weight: 2.1 lbs
Brand & Warranty
Brand: RAM Mounts
Part number: RAM-101MU-D
Warranty: Lifetime
