Description

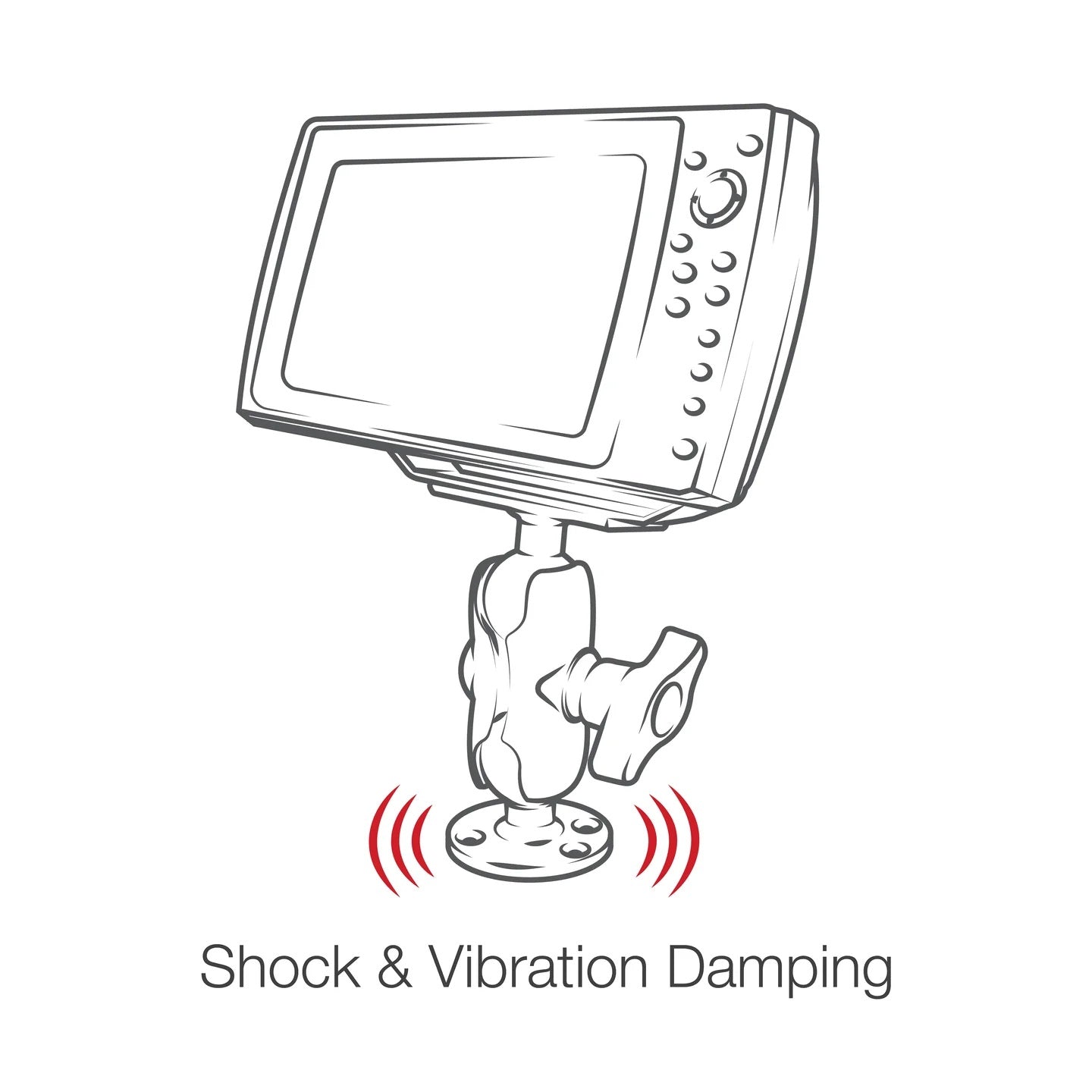

A rugged and durable mount, crafted from durable marine-grade aluminum. RAM rubber ball and socket technology that offers shock and vibration damping, while still allowing for infinite adjustability, so you can easily position your device at the ideal viewing angle
Features:

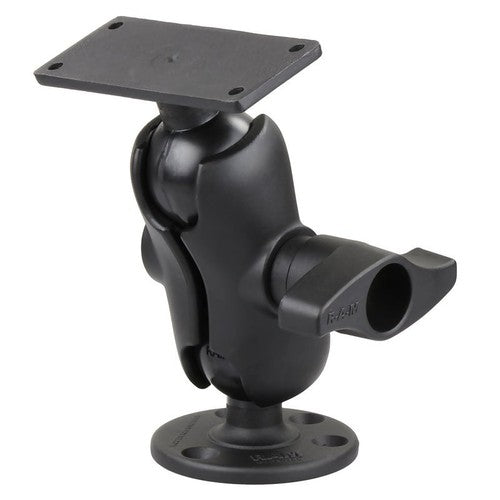

- 3.68" round base with predrilled holes, two holes at 180 degrees and three holes at 120 degrees. 2.25" rubber ball attached to base
- Short double socket arm - Overall arm length: 5.0625"
- A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection
- 2" x 5" rectangular plate with 2.25" ball and predrilled four hole pattern

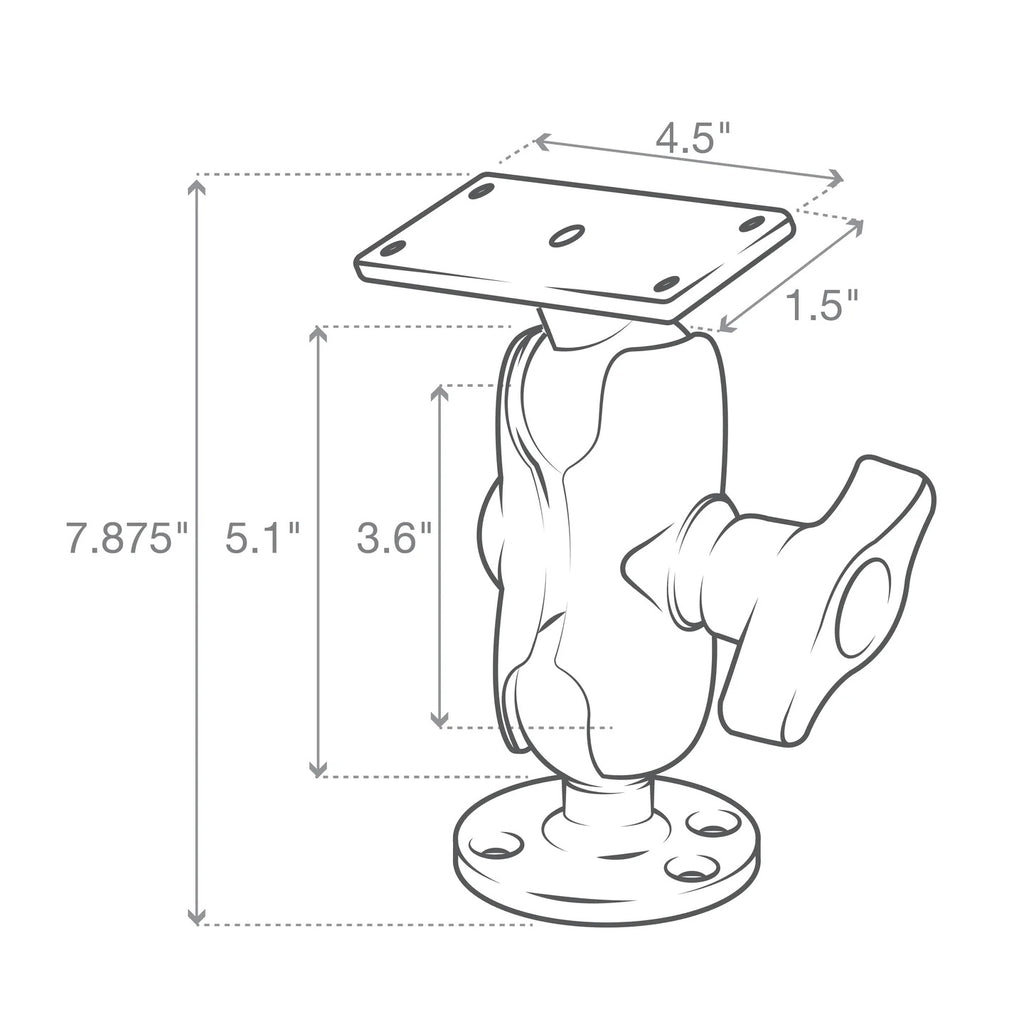

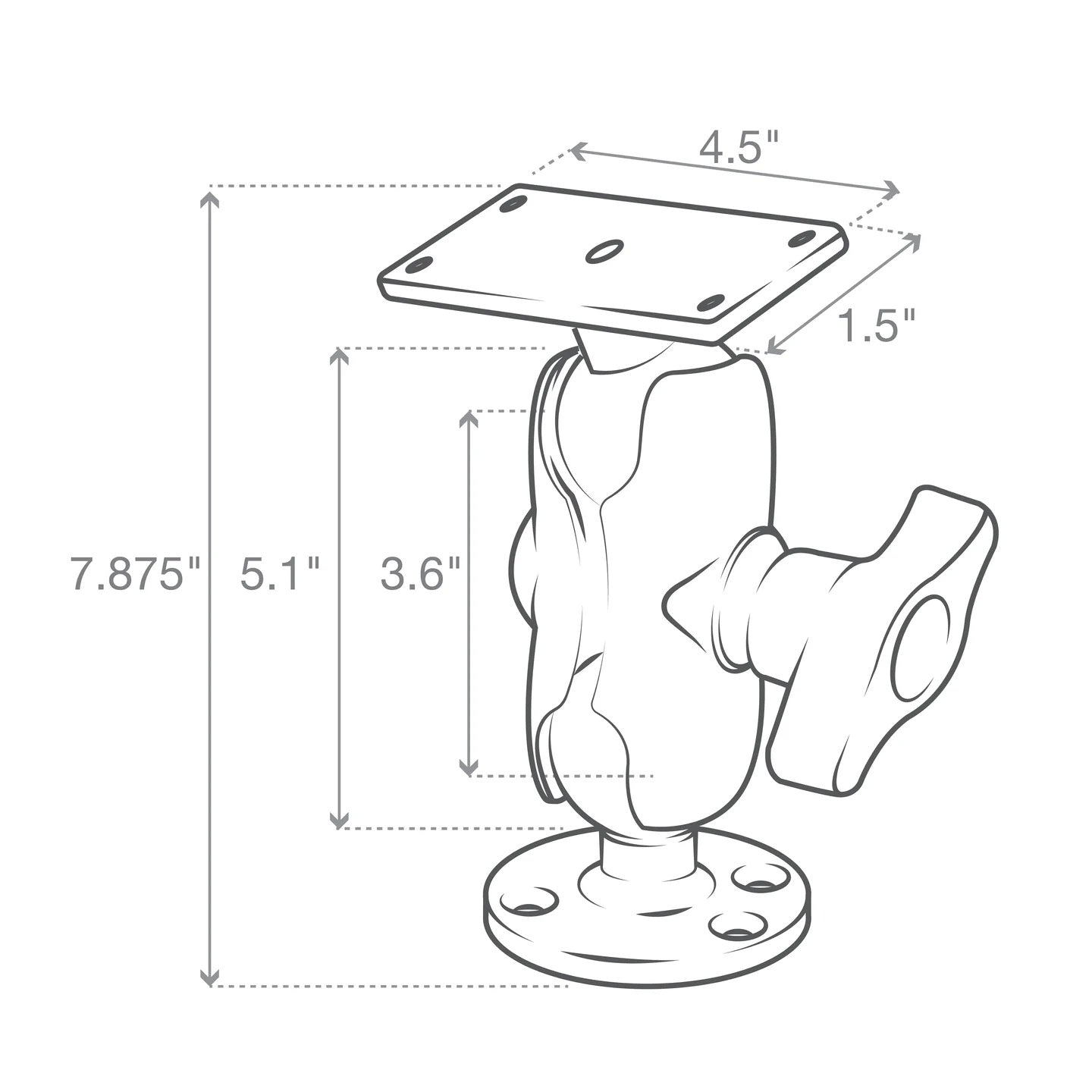

- Plate thickness: 1/4" - center to center hole pattern is 1.5" x 4.5" (hole diameter: 1/4")

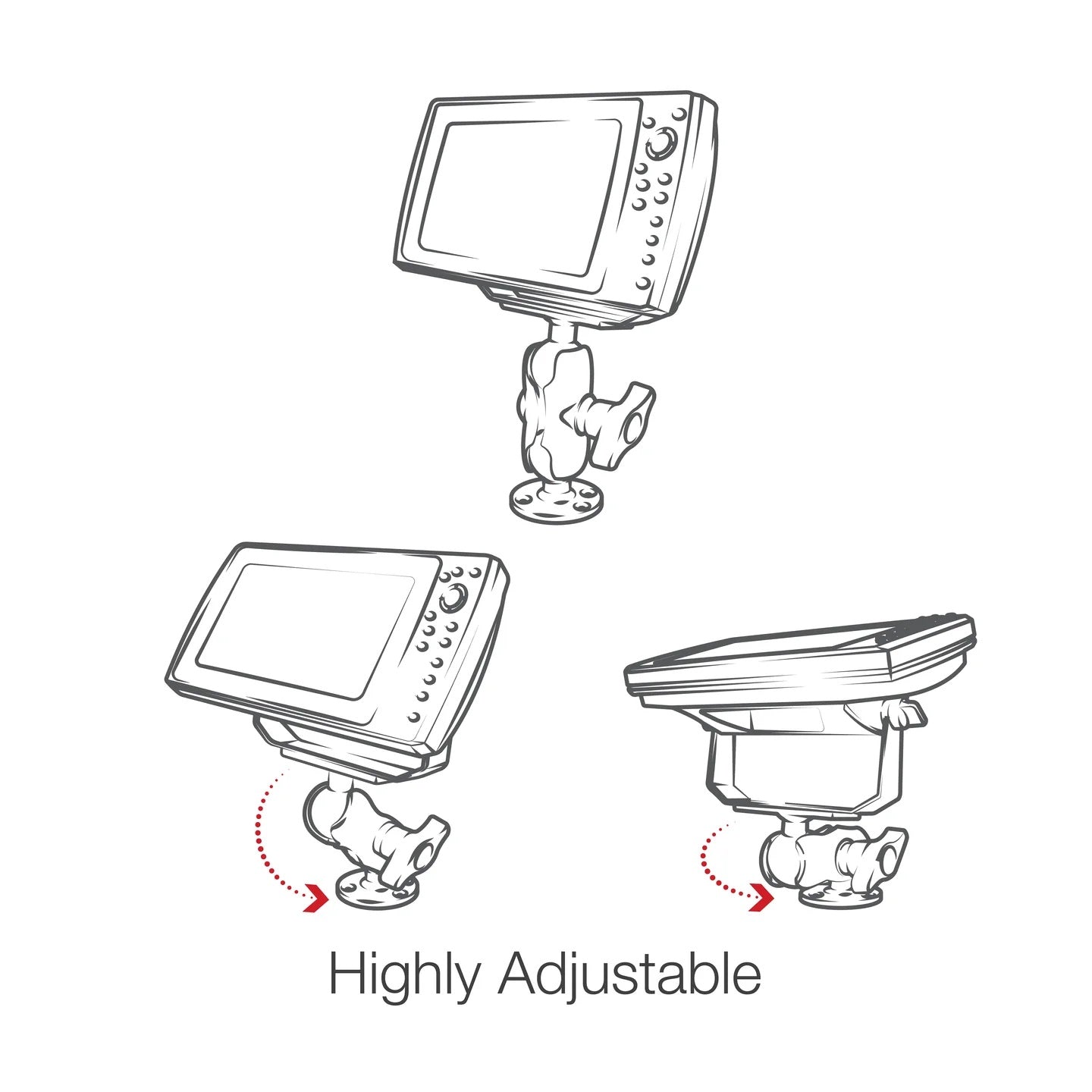

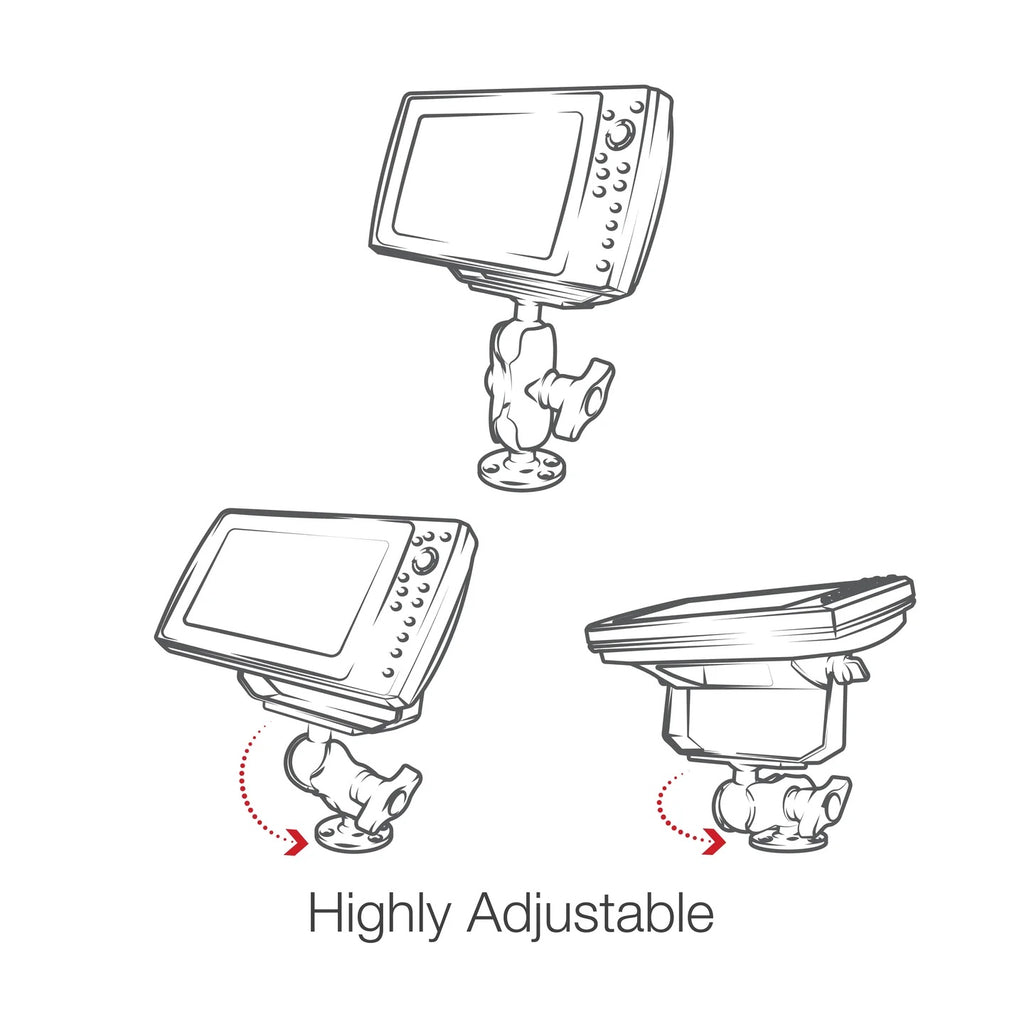

- RAM adjustable socket system: easily adjust to your perfect viewing angle
- Overall length fully extended: 7.875"
- Weight capacity: Up to 6 lbs.
- Constructed of powder coated marine grade aluminum
- Made in the USA

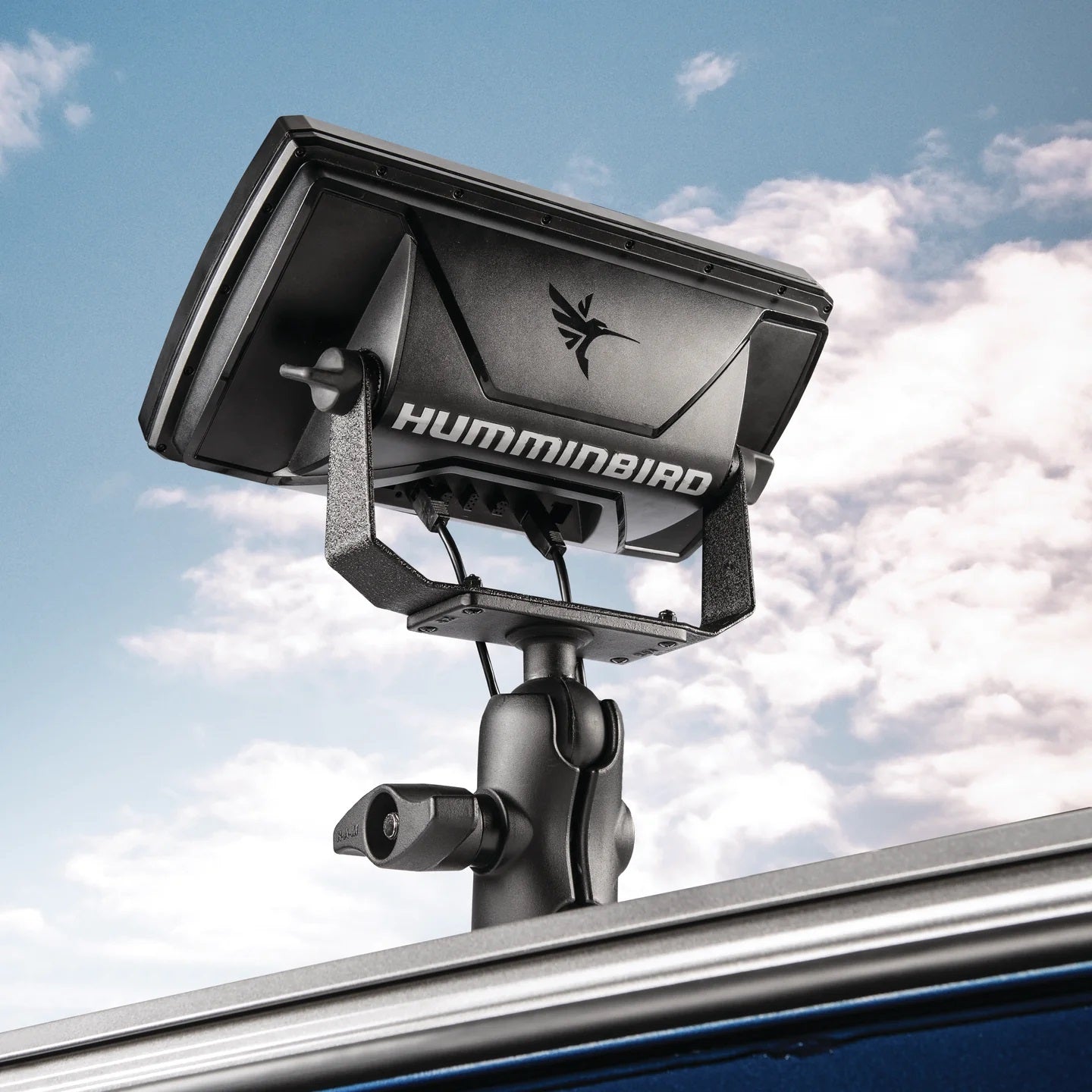

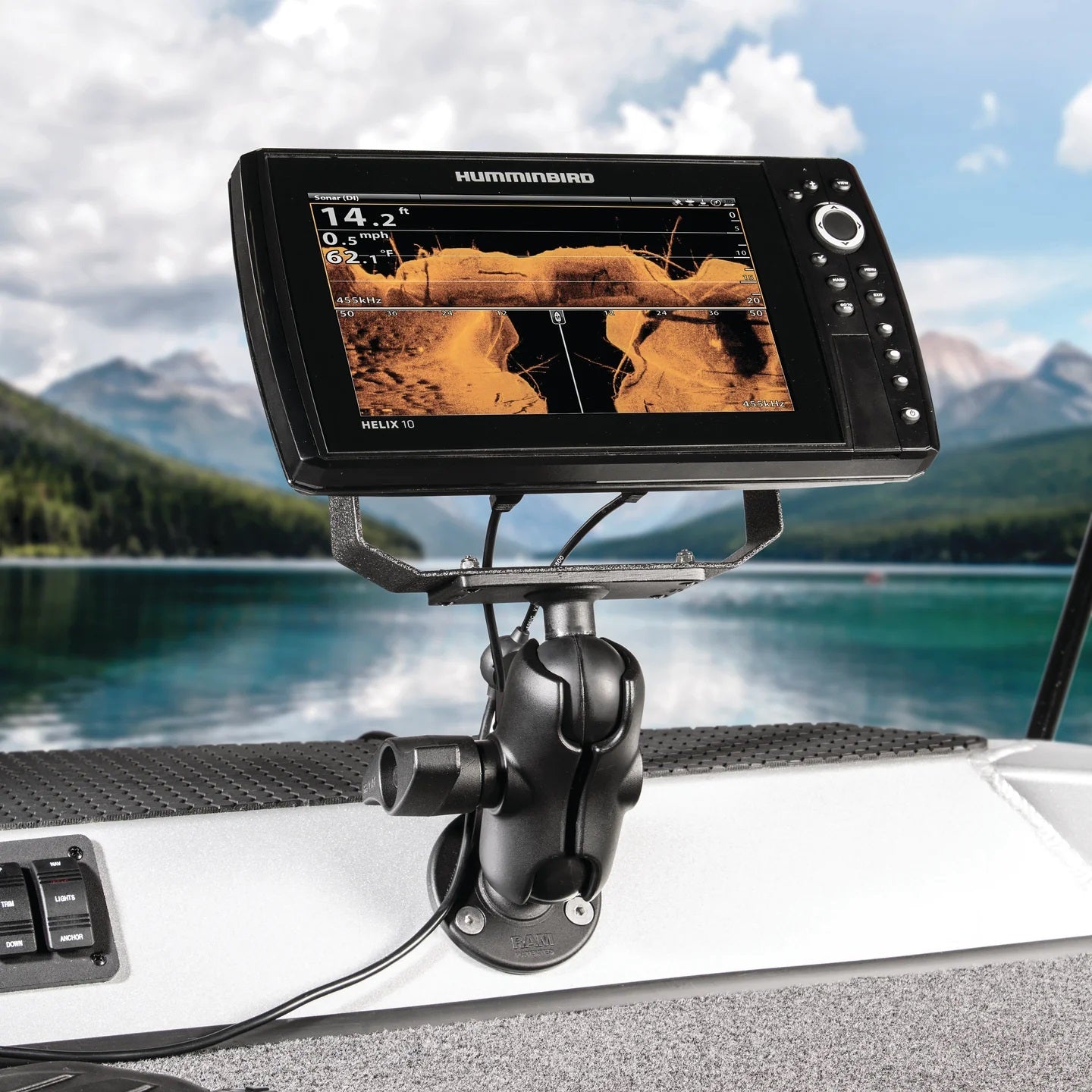

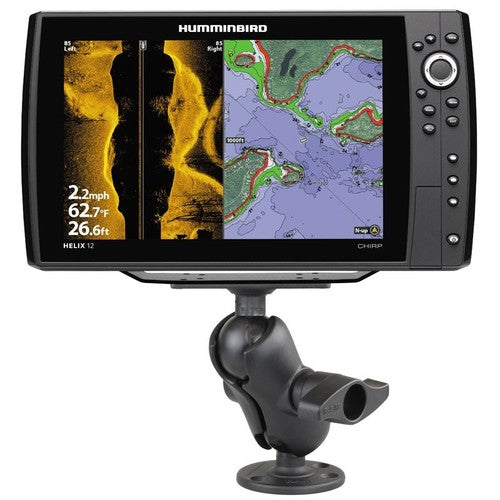

Compatible Devices:
- Humminbird Helix 8
- Humminbird Helix 9
- Humminbird Helix 10
- Humminbird Solix 10
Brand: RAM Mounts
Part number: RAM-D-202-25-C-202U
Warranty: Manufacturer's lifetime warranty
